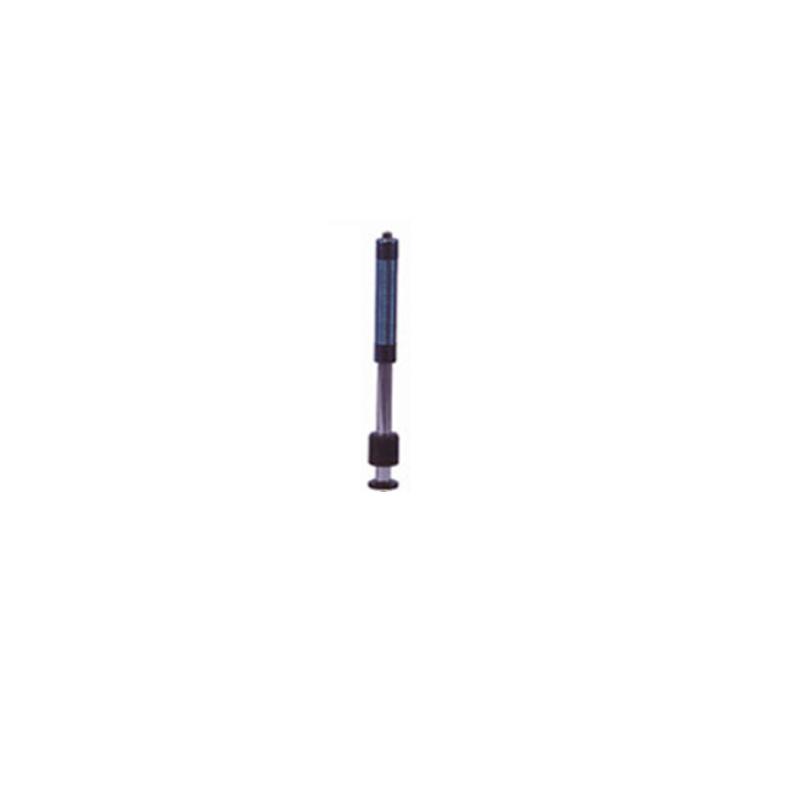

IPRE G Impact device for measurement of large and heavy specimens and castings and forgings with rough surfaces

The IPRE G Impact device is an Optional accessory of the Leeb Hardness Tester. The G Impact device measures large or heavy specimens and rough castings and forgings.

$350.00/set

PromotionLoading...

Coupon

Model：

G type

Certificate

Ipre

Contact

Details SPEC Con

Ipre G type Impact deviceSPEC

Ipre G type Impact deviceDetails

Ipre G type Impact devicePacking list

SKU: NB031703

Impact energy: 90mJ

Impact Mass: 20g

Ball Hardness: 1600HV

Ball head diameter: 5mm

Ball head material: tungsten carbide

Impact device diameter: 30mm

Impact device length: 255mm

Impact device Mass: 250g

Maximum Impact Hardness: 650HV

Specimen Surface Roughness: 6.3µm

The minimum Weight of the specimen can be directly measured: >15kg

The minimum Weight of the specimen needs to be stably supported: 5-15kg

The minimum Weight of the specimen needs to be tightly coupled: 0.5-5kg

Specimen Minimum Film thickness Dense coupling: 10mm

Hardening Film thickness: 1.2mm

Hardness 300HV Indentation Diameter: 1.03mm

Hardness 300HV Indentation: 53µm

Hardness 600HV Indentation Diameter: 0.90mm

Hardness 600HV Indentation: 41µm

Standard Richter Hardness Block Hardness Value: 590±40HLG 500±40HLG

Error of indication: ±12 HLG

Indication repeability: 12 HLG

G type

Impact device

Shock device technical parameter table

Details of Zhongke Purui G-type impact device 1

Measuring range table for impact device

Details of Zhongke Purui G-type impact device 2

Indication Error and Indication Repeatability Table

Details of Zhongke Purui G-type impact device Figure 3

FAQ

QIs the price listed on the website the final cost for overseas purchases?

ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

QWhat is the specific process for purchasing the product?

AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

QWhat should I do if the instrument I purchase needs repair?

AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
