TQC LD0551 Shore durometer type D, Dial-Type portable Shore durometer

SE
Standard D type Shore durometer, suitable for hardness testing of materials such as polyester, ABS, nylon, polyurethane, synthetic fiber, acrylic resin, wood and polystyrene.
$951.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CATCAT OI
Similar products

TQC sheen LD0551 Shaw durometerSPEC

TQC sheen LD0551 Shaw durometerDetails

TQC sheen LD0551 Shaw durometerPacking list

SKU
NB000319
standard
DIN 53505、ISO868、ASTM02240
applicable industry
Automotive industry, painting industry, construction, laboratory, paints, Eletroplating, pharmaceuticals, etc
Main test materials
Polyester, ABS (styrene), nylon, polyurethane, synthetic fiber, acrylic resin, art material, polystyrene, etc.
scope
0-100
Precision
0.006
material
Stainless steel. Aluminum oxide
size
60 × 25 × 110mm (L × W × H)
Weight
230g
LD0551
Shaw durometer
Standard D type Shore durometer, suitable for hardness testing of materials such as polyester, ABS, nylon, polyurethane, synthetic fiber, acrylic resin, wood and polystyrene.
TQC LD0551 Shore durometer type D, Dial-Type portable Shore durometer Picture

Introduction to LD0551 Shore Hardness Tester

TQC LD0551 Shore Hardness Tester Type D is a pointer-type portable Shore Hardness Tester. It is a genuine product imported from the Netherlands and is a standard D-type Shore Hardness Tester designed and produced in accordance with a variety of international standards. The material of the LD0551 Shore Hardness Tester is stainless steel alumina, which has good wear resistance and corrosion resistance.

The TQC Portable Shore Hardness Tester (Shore Hardness Tester) is a reliable hardness measuring instrument used to measure the indentation hardness of soft materials such as paint, plastics and rubber. The indicator pointer can stay at the maximum measured value. The configuration of LD0551 Shore Hardness Tester includes Hardness Tester and 1 standard block.

LD0551 Shore Hardness Tester is suitable for hardness testing of materials such as polyester, ABS, nylon, polyurethane, synthetic fiber, acrylic resin, wood and polystyrene.

Measuring range is 0-100 Shore, accuracy: 1shore.

Standards compliant

The LD0551 Shore Hardness Tester complies with standards DIN 53505, ISO 868 and ASTM D2240.

Actual pictures of LD0551 Shore Hardness Tester

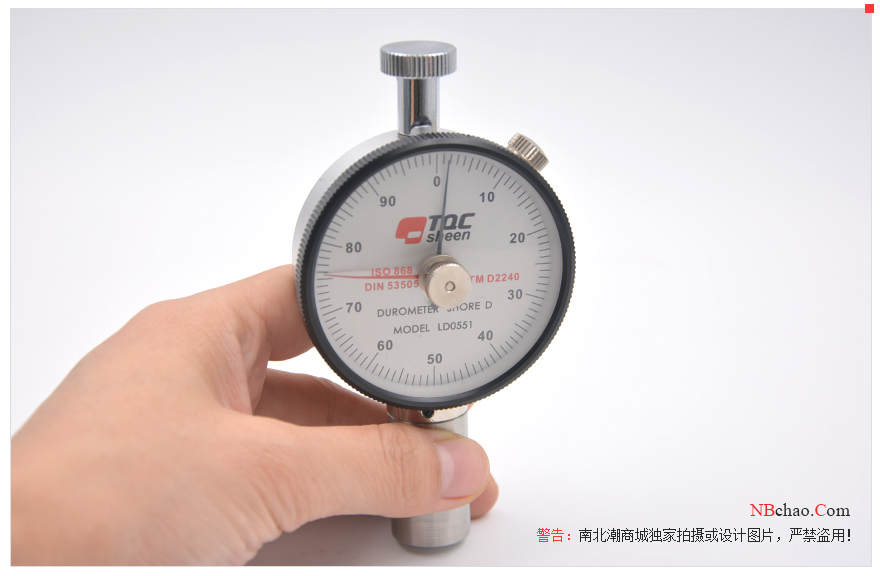

LD0551 Shore Hardness Tester D type display picture 1

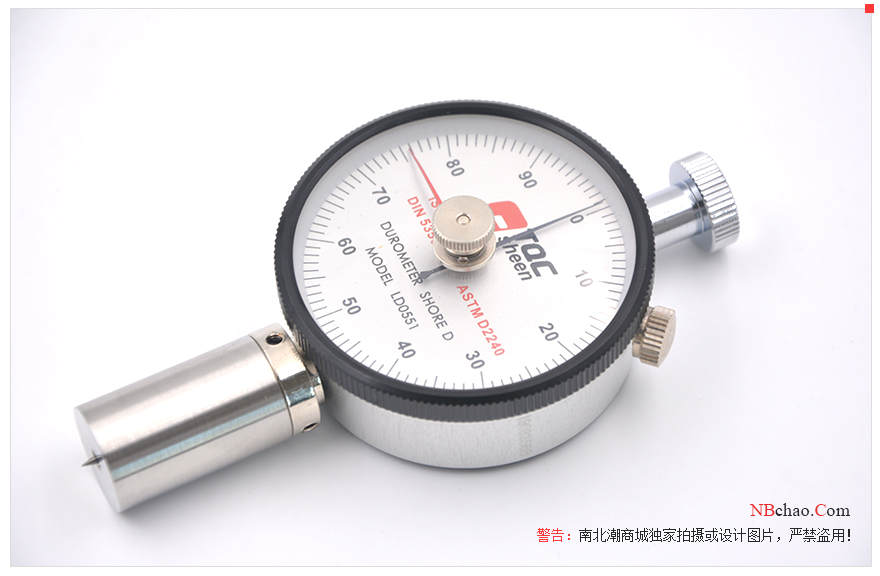

LD0551 Shore Hardness Tester Type D Detail

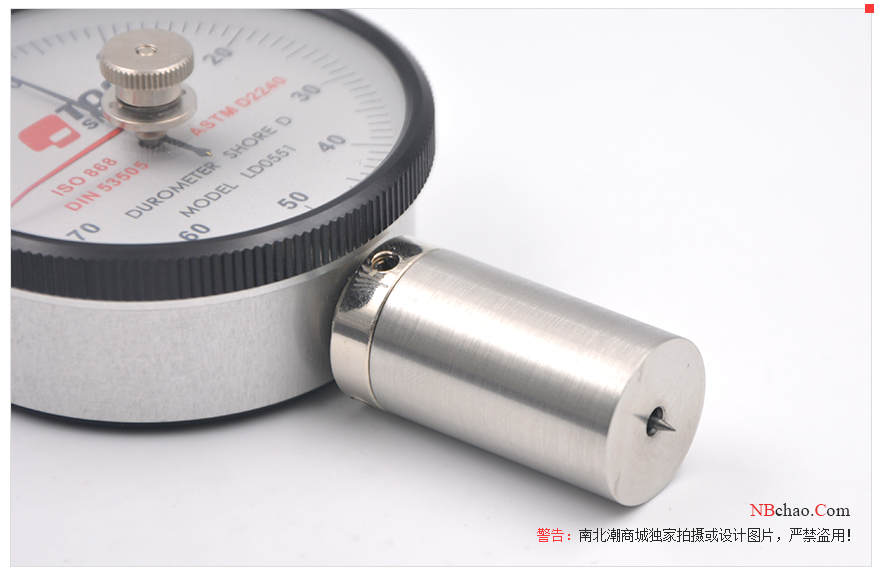

Detail of LD0551 Shore Hardness Tester D-type probe

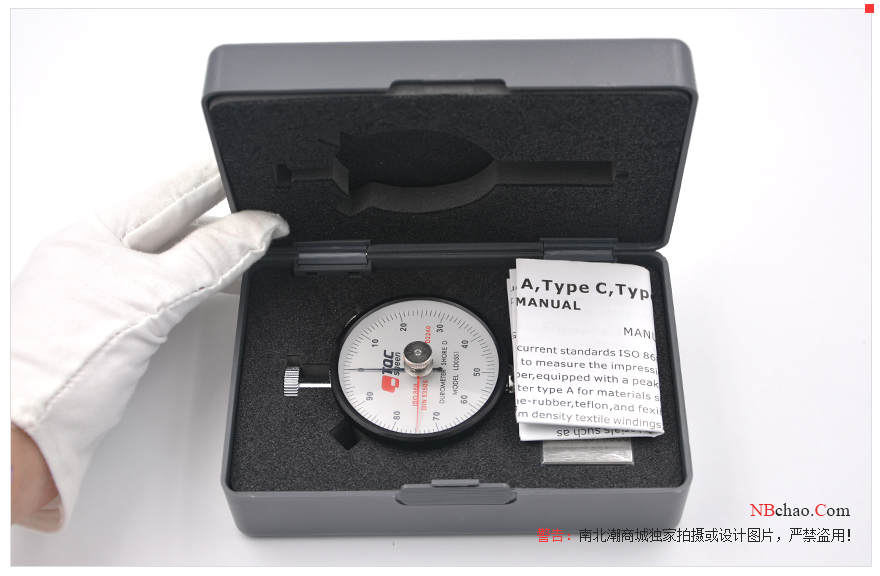

LD0551 Shore Hardness Tester Type D Packaging Picture

Shore Hardness Tester series

Type A Shore Hardness Tester

model

LD0550

standard

DIN 53505, ISO868, ASTM02240

Applications

Automotive industry, coating industry, construction, laboratory, paint, electroplating, etc.

Main test materials

Elastomer, vinyl, synthetic rubber, leather, PVC, silicone, Teflon, etc.

scope

0-100

Accuracy

0.006

Material

Stainless steel.Aluminum oxide

size

60×25×110㎜(length×width×height)

weight

230g

D type Shore Hardness Tester

model

LD0551

standard

DIN 53505, ISO868, ASTM02240

Applications

Automotive industry, coating industry, construction, laboratory, paint, electroplating, etc.

Main test materials

Polyester, ABS (styrene), nylon, polyurethane, synthetic fiber, acrylic resin, technical materials, polystyrene, etc.

scope

0-100

Accuracy

0.006

Material

Stainless steel.Aluminum oxide

size

60×25×110㎜(length×width×height)

weight

230g

Take you into the Dutch TQC

The historical development of TQC company

TQC automated production and strict quality control

TQC R&D team

FAQ
QGB/T39535-2020, can this standard be tested?
A This standard measures carbon materials with particles smaller than 0.8mm. LD0551 Shore Hardness Tester meets standards DIN 53505, ISO 868 and ASTM D2240.
QDo you have the Shaw Hardness Tester required by the ASTMD2240 standard?
A This LD0551 Shore Hardness Tester will do.
QIs the configuration of Shore hardness A and D the same? If there is type A, can I change the type D indenter and load to be used as type D for testing?
A Hello, Type A can only be equipped with Type A machines, and the same is true for Type D. The two are not universal.
QWhat is the function of the red pointer on the dial of this Shore hardness tester?
A Hello, the red pointer of this LD0551 Shore hardness tester is a slave needle, which is used to record the tested value, which is convenient for test comparison and ensures the accuracy of measurement.
QWhat material is the probe of this Shaw durometer?
A Hello, it's aluminum oxide.
QMeasurement of hardness of plastic, is this one okay?
A Hello, it's OK.
