NCB CB171-B offset ink Stirrer

CB171-B offset ink Stirrer adopts frequency conversion speed regulation, L-type pulp stirring, CB171-B inks Stirrer Power 1.5KW, speed 0-45rpm
Model：
Certificate
Contact
Details SPEC

NCB CB171B Inks StirrerSPEC

NCB CB171B Inks StirrerDetails

NCB CB171B Inks StirrerPacking list

SKU
NB003190
Power
1500W
Rated Voltage
220V 50Hz
Speed range
0~45rpm
Dimensions
850*700*480mm
Size in barrel
400 * 280Mm, 304 stainless steel, barrel wall thickness 1.5MM
Barrel Volume
Minimum quantity 4KG, maximum quantity 30KG
Machine Weight
About 150kg
CB171B
Inks Stirrer

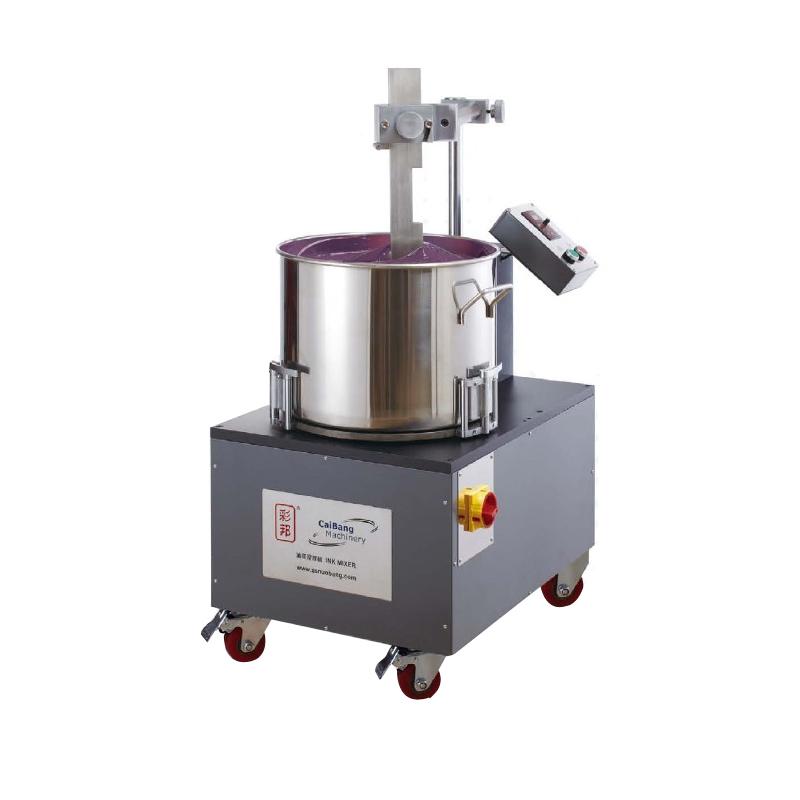

NCB CB171-B offset ink Stirrer Picture

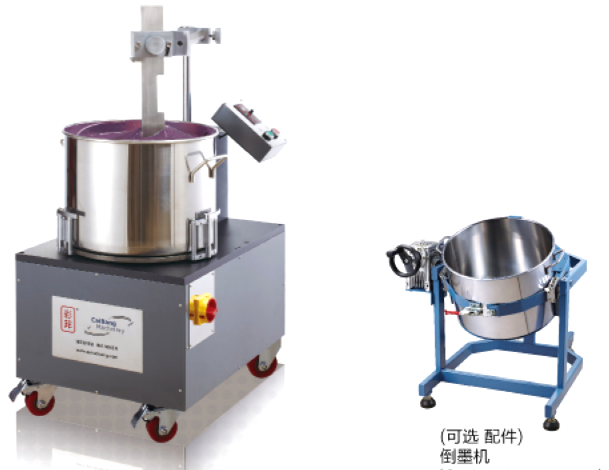

Caibang CB171-B offset printing ink mixer

Features

1. The operation is simple and convenient.

2. Low-speed, intermittent type sticking to the edge of the barrel, stirring at the bottom of the barrel; unique stirring paddle design, the ink can be turned and cut during the stirring process, and the ink under the barrel can be turned over and stirred, and the ink can be effectively stirred evenly within ten minutes; the ink after stirring does not heat up.

3. It is convenient to replace the barrel. (No embroidered steel drum)

4. The stirring speed can be adjusted by variable frequency.

5. Stirring paddle: L-shaped slurry mixing, integral forming, without a screw hole, easy to clean.

6. Grip clamp: the eccentric clamp is tight, easy to operate and reliable.

7. Transmission mode: direct transmission, reduce power loss.

8. Four self-locking pulleys at the bottom of the machine.
