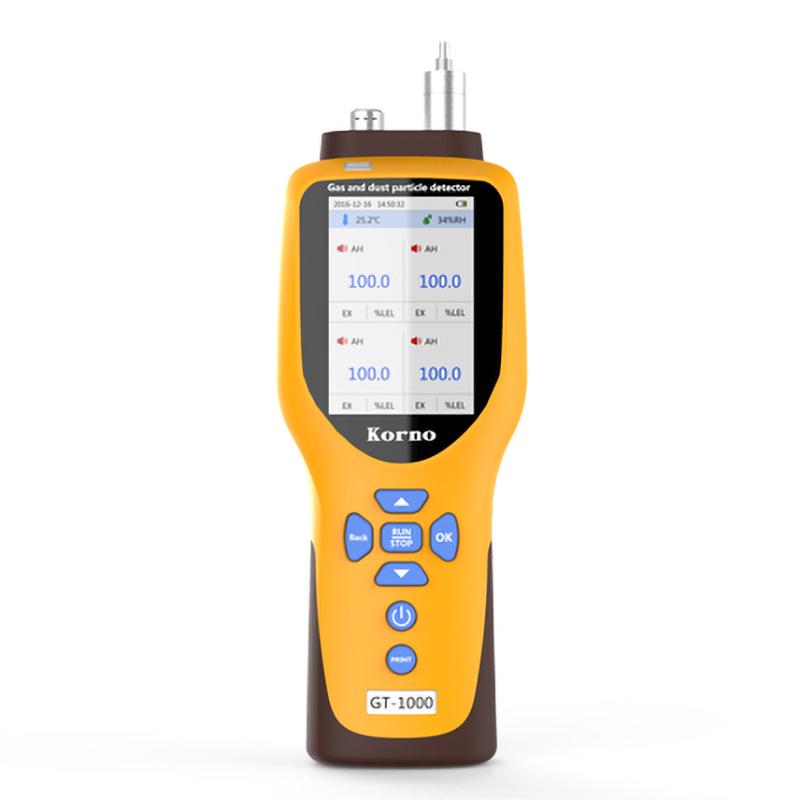

KORNO GT-1000-CO2 Gas Detector 0-50% Vol 1% IR
SE
GT-1000-CO2(0-50%Vol)
KORNO GT-1000-CO2(0-50%Vol) Gas DetectorSPEC
KORNO GT-1000-CO2(0-50%Vol) Gas DetectorDetails
KORNO GT-1000-CO2(0-50%Vol) Gas DetectorPacking list
- SKU
- NB032036
- Detection gas
- CO2
- range
- 0 ~ 50% vol
- resolution
- 0.01% Vol
- Expansion gas
- Support 1-5 Sensors, any combination
- temperature and humidity
- Temperature detection range: -40~120 ℃, humidity detection range: 0~100% RH
- Sampling method
- Pump suction
- linearity error
- ≤±1%
- Zero drift
- ≤±1% (F.S/年)
- Sexual repeability
- ≤±1%
- Detection Accuracy
- ≤±1%
- Response time
- ≤20s(T90)
- recovery time
- ≤20s
- data storage
- Real-time storage and Timer storage can be set; single channel can store 30800 groups of data
- Shell material
- ABS+PC
- Explosion-proof sign
- ExdII CT4 (Intrinsically Safe)
- Operating Temperature
- -30~60℃
- Environment humidity
- ≤ 95% RH, no condensation
- Protection class
- IP65
- Power
- 4000mA Rechargeable Polymer Battery
- Operating Pressure
- -30 ~ 100Kpa
- Dimensions
- 220*85*55mm
- Net Weight
- 0.5 Kg
GT1000-portable Gas Detector, suitable for gas concentration detection in various industrial environments and special environments, using domestic (CN) electrochemical/infrared absorption gas sensor and microcontroller technology, fast response, high measurement accuracy, stability and repeatability Good, the performance of the whole machine is at the top level in CHINA, and the user can customize the settings of various parameters, and the operation is simple. Built-in 4000mA high-capacity polymer rechargeable battery, super long standby time; 3.5-inch full-view IPS industrial color screen is used to display various technical indicators and gas concentration values well, and historical data can be viewed on the screen, with storage, data printing, data Export, temperature and humidity detection and other functions
Features
① Using the new semiconductor nanotechnology ultra-low power consumption 32-bit microprocessor, 24-bit ADC data acquisition chip, the measurement accuracy is the highest level in the industry
② It adopts 3.5-inch full-view IPS industrial-grade color screen with a resolution of 320x480, which can well display various technical indicators and gas concentration values of the instrument
② The four concentration units of PPM, %VOL, mg/m3 and mg/L can be switched freely, and the high-low ranges can be switched automatically
③ Detect 1-5 kinds of gases at the same time, any combination of sensors, support PM2.5 dust particle sensor, temperature and humidity sensor, and other types of various sensors
④ With data storage function, a single channel can store 30,800 sets of data, you can visually view historical data on the screen, and you can export data
With data printing function, it can be equipped with a micro-printer to print data
With temperature and humidity detection function, it can detect the temperature and humidity value of the gas in the field or in the pipeline
⑤ Various modes can be adjusted: detection mode, storage mode, printing mode, display mode, air pump mode
⑥ Built-in powerful air pump, can work in micro-negative pressure environment, reasonable air chamber design can ensure that the sensor will not be disturbed by pressure
⑦ With overVoltage protection, overcharge protection, anti-static interference, anti-magnetic field interference and other functions
⑧ Full software automatic calibration, sensor up to 6-level target point calibration function, to ensure the accuracy and linearity of the measurement, and has the function of data recovery
⑨ Full Chinese/English operation menu, simple and practical
⑩ With temperature compensation function, the instrument adopts dustproof and waterproof design, equipped with dust filter, and can be used in various harsh occasions
