KORNO GT-1000-PH3 phosphating hydrogen Gas Detector 0-100ppm
GT-1000-PH3(0-100ppm)
KORNO GT-1000-PH3(0-100ppm) Gas DetectorSPEC
KORNO GT-1000-PH3(0-100ppm) Gas DetectorDetails
KORNO GT-1000-PH3(0-100ppm) Gas DetectorPacking list
- SKU
- NB032140
- Detect gas
- Phosphating hydrogen PH3
- Range
- 0~100ppm
- Resolution
- 0.01ppm
- Expansion gas
- Support 1-5 Sensors, any combination
- Humidity
- Temperature detection range: -40~120 ℃, Humidity detection range: 0~100% RH
- Sampling method
- pump suction
- Linearity
- ≤±1%
- Zero drift
- ≤±1% (F.S/年)
- Repeatability
- ≤±1%
- Detection Accuracy
- ≤±3%
- Response time
- ≤20s(T90)
- recovery time
- ≤20s
- Data storage
- Real-time storage and timed storage can be set; a single channel can store 30,800 sets of data
- Shell material
- ABS+PC
- Explosion-proof sign
- ExdII CT4 (Intrinsically Safe Type)
- Operating temperature
- -30~60℃
- Environmental humidity
- ≤ 95% RH, non-condensing
- Protection level
- IP65
- Power Supply
- 4000mA rechargeable polymer battery
- Operating Pressure
- -30~100Kpa
- Dimensions
- 220*85*55mm
- Net Weight
- 0.5 Kg

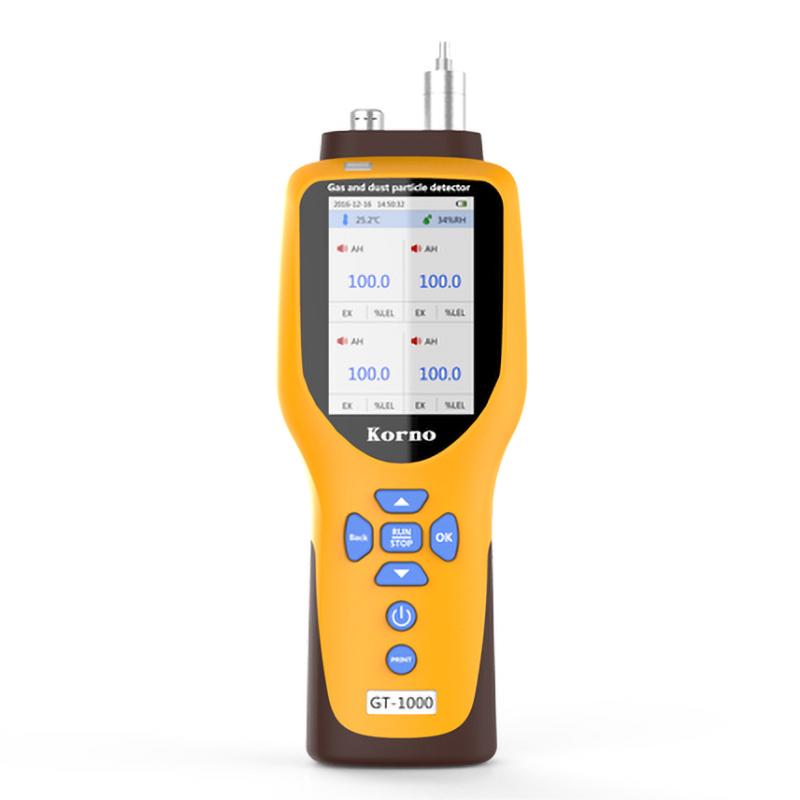

GT1000-portable Gas Detector, suitable for gas concentration detection in various industrial environments and special environments, using imported electrochemical/infrared absorption gas sensor and microcontroller technology, fast response, high measurement accuracy, good stability and repeatability, the performance of the whole machine is at the top level in CHINA, the parameters can be set by users, and the operation is simple. Built-in 4000mA large-capacity polymer rechargeable battery, ultra-long standby, using 3.5-inch full-view IPS industrial color screen, good display of various technical indicators and gas concentration values, can view historical data on the screen, with storage, data printing, data export, temperature and humidity detection and other functions
Features
(1) Using the new semiconductor nano process ultra-low power 32-bit microprocessor, 24-bit ADC data acquisition chip, the measurement accuracy is the highest level in the industry
(2) 3.5-inch full-view IPS industrial-grade color screen with a resolution of 320x480, which can well display the technical indicators and gas concentration values of the instrument
(2) PPM, %VOL, mg/m3, mg/L four concentration units can be switched freely, and the high-low range can be automatically switched
(3) Detect 1-5 kinds of gases at the same time, any combination of sensors, support PM2.5 dust particle sensor, temperature and humidity sensor, and other types of various sensors
(4) With data storage function, a single channel can store 30800 sets of data, can intuitively view historical data on the screen, and can export data
It has the function of data printing, and can be equipped with a micro printer to print data
It has the function of temperature and humidity detection, which can detect the temperature and humidity value of the gas in the field or pipeline
(5) Various modes can be adjusted: detection mode, storage mode, printing mode, display mode, air pump mode
(6) Built-in powerful air pump, which can work in a slight negative pressure environment, and a reasonable air chamber design can ensure that the sensor is not disturbed by pressure
(7) It has the functions of over-Voltage protection, over-charge protection, anti-static interference, anti-magnetic field interference, etc
(8) Full software automatic calibration, sensor up to 6 levels of target point calibration function, to ensure the accuracy and linearity of measurement, and with data recovery function
(9) Full Chinese/English operation menu, simple and practical
(10) With temperature compensation function, the instrument adopts dustproof and waterproof design, and is equipped with dust filter, which can be used in various harsh occasions
