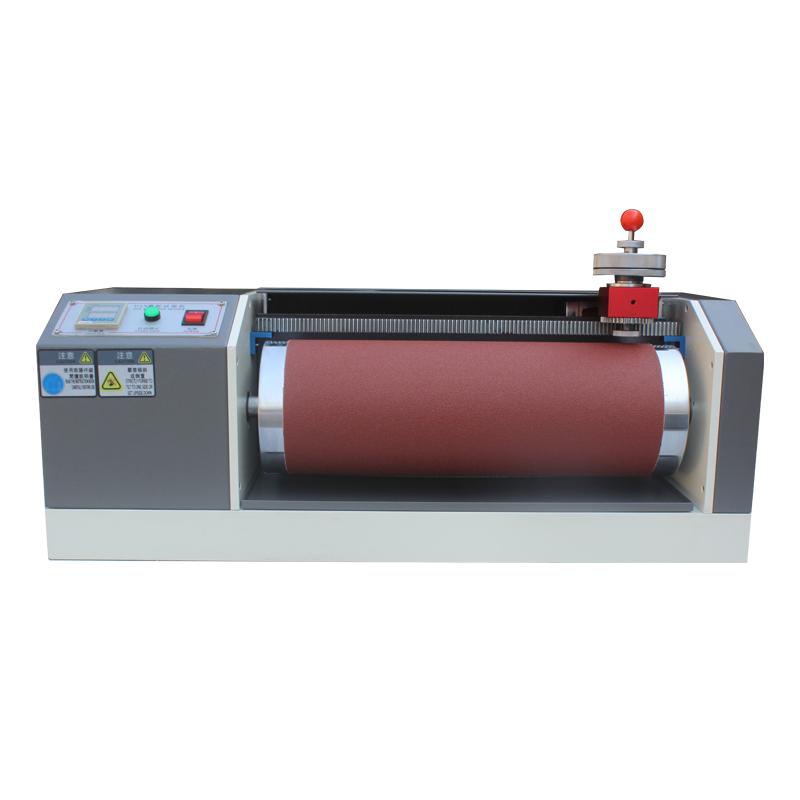

CHINA ASR-5611 DIN Wear Tester
The rolling diameter is 150mm, the lateral displacement of the fixture is 4.2mm/rolling per turn, and the load is 2.5N, 5N, 10N.
Model：
ASR-5611
Similar products
AISRY ASR-5611 DIN Wear testing machineSPEC
AISRY ASR-5611 DIN Wear testing machineDetails
AISRY ASR-5611 DIN Wear testing machinePacking list
- SKU
- NB032250
- Rolling diameter
- 150mm
- Clamp lateral displacement
- 4.2mm/roll per turn
- Load
- 2.5N,5N,10N
- speed
- 40rpm
- Machine size
- 95*66*31cm
- Weight
- About 50kg
- Power
- 220V 50HZ
ASR-5611
DIN Wear testing machine
The rolling diameter is 150mm, the lateral displacement of the fixture is 4.2mm/rolling per turn, and the load is 2.5N, 5N, 10N.
Introduction
This machine complies with DIN-53516, ISO/DIS-4649, GB-9867. This machine is suitable for wear test of elastic materials, rubber, tires, conveyor belts, conveyor belts, soles, soft synthetic leather, leather and other materials. It is effective and reproducible. The characteristics of sex and easy operation. Roller diameter φ150mm Roller length 460 mm Roller speed 40rpm Abrasion stroke 40 mm (20 mm) Abrasion speed 0.32 m/sec Inclination angle 3o Specimen diameter φ16 mm Thickness 6~15 mm Test load 5N, 1.
FAQ
QThe finished rubber sheet has been vulcanized. I want to test whether its abrasion is wear-resistant. Is there any suggestion?
A
Test rubber wear resistance, use din
QCan this tire wear testing machine be used?
A
Hello, it's OK.
