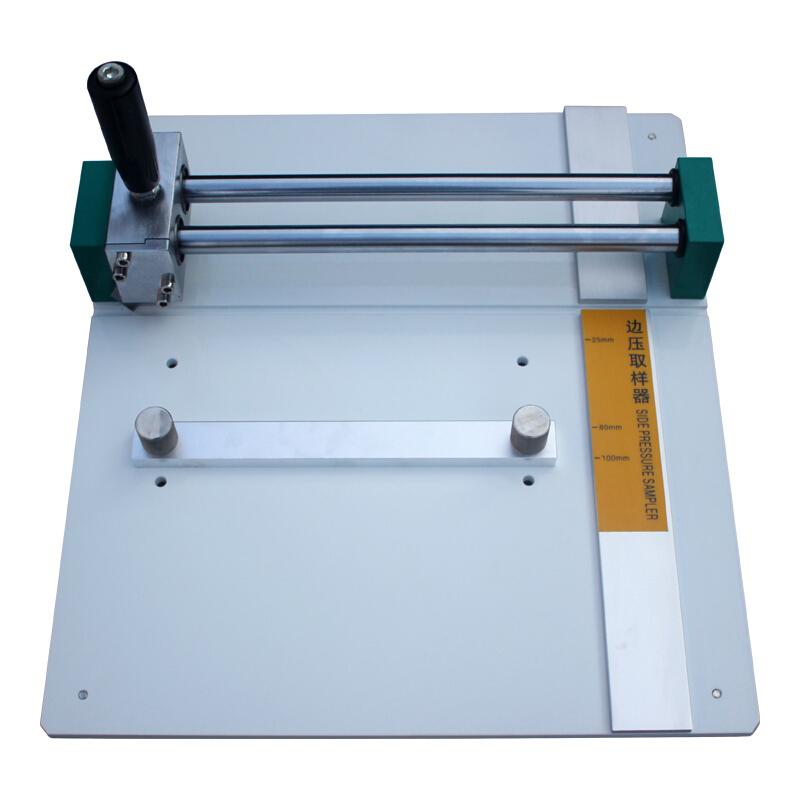

CHINA ASR-8503B Side Pressure Sampler

ASR-8503B

Side Pressure Sampler

Sampling size 25 * 100mm (side pressure sample)/25 * 80mm, sampling size error ± 0.5mm, sampling length 220mm, sampling Film thickness range 18mm, adjustable spacing 25, 80, 100mm

Introduction

The side pressure sampler is a special sampling device required for the side pressure strength test and adhesive strength test of corrugated cardboard. It can quickly and accurately cut the standard test size. It is a satisfactory assistant for corrugated cardboard and carton production, scientific research and quality supervision and inspection departments. test equipment.

Features

Capable of cutting samples with precise parallelism, with markings on them, and the parallel distance can be set;

Imported sliding rails are used to closely cooperate with imported Japanese blades to easily cut out multi-layer cardboard samples;

The scale is laser engraved, the scale is clear, durable and easy to clean;

With strong magnet, the blade is more convenient to install.

Precautions

1. The incision direction needs to be parallel or perpendicular to the corrugated direction, and the test sample must not be loose during the sample cutting process;

2. After each cut, pull the handle back to the position to be cut;

3. It is strictly forbidden to put your hands on the sample cutting position to prevent injury;

4. If the incision of the cut sample is seriously curled or skewed, the blade should be replaced. The blade used can be any commercially available blade of the same type (replacement method: loosen the screw on the knife holder assembly, remove the old blade, replace with a new blade, adjust the position and angle of the blade, and tighten the screw);

5. When not in use for a long time, the blade, guide post, etc. should be coated with anti-rust oil, and covered with dust;

6. A small amount of lubricating oil should always be added to the guide sleeve assembly and guide post.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
