HuiNuo TM3200Pro/02 Bar & drawdown blade vacuum adsorption laboratory coater effective area 400 * 500mm
SE
TM3200pro/02
-
TM3200 Wire Rod & Drawdown Blade Automatic Coater with Vacuum Table$ 3957.00SE -
TM3200Pro High-accuracy Wire Rod & Drawdown Blade Automatic film Coater with Vacuum Table$ 4113.00SE -
China Drawdown blade bar Vacuum chuck laboratory coater TBJ-X2-DJ4 with detachable Drawdown blade$ 3102.00SE -
China Vacuum chuck coater TBJ-X2-XB bar + Drawdown blade with imported bar$ 3102.00SE -
China Vacuum chuck coater NBC-X2-DJ7 bar + Drawdown blade with imported bar$ 7066.00SE
HuiNuo TM3200pro/02 Automatic Film ApplicatorSPEC
HuiNuo TM3200pro/02 Automatic Film ApplicatorDetails
HuiNuo TM3200pro/02 Automatic Film ApplicatorPacking list
- SKU
- NB003229
- Coating method
- Bar + drawdown blade
- Coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method

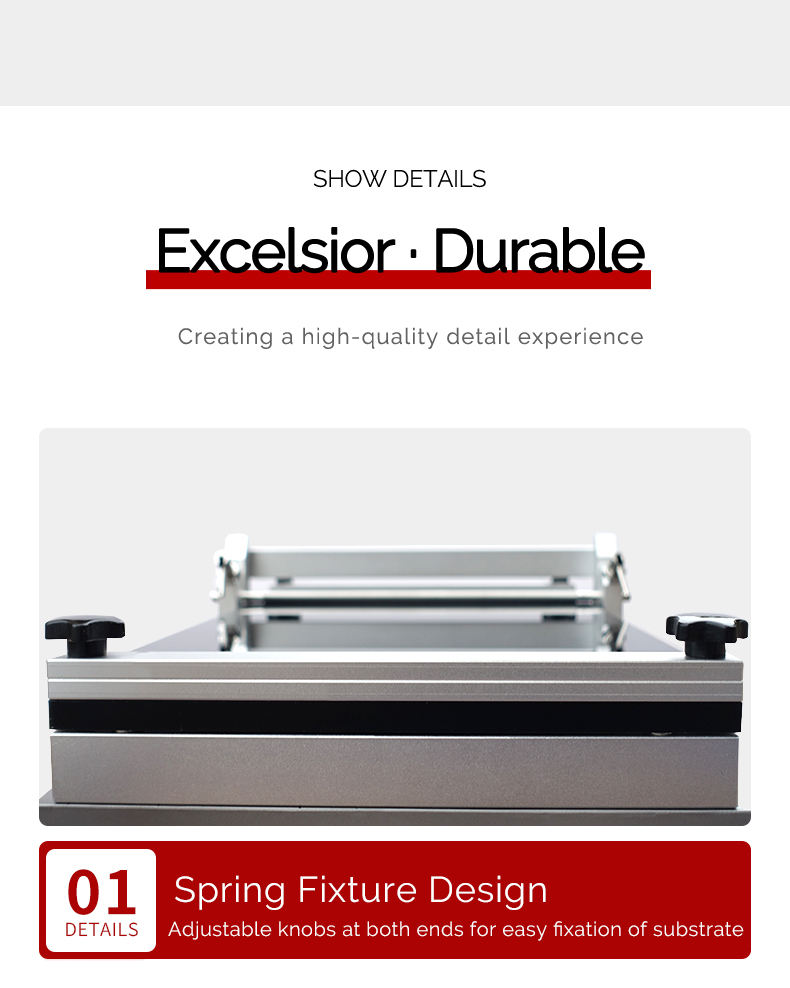

- Vacuum adsorption + fixture
- Coating table material
- Surface hard treatment aluminum alloy
- Coating table size
- 740*430mm
- Effective coating Area
- 500 * 400Mm (can be customized)
- Mayer Rod Thickness Range
- Different bar numbers have different thicknesses, with high-precision imported bars
- Mayer Rod Accuracy
- ±0.003mm
- Drawdown blade thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade application width
- 300mm
- Drawdown blade Accuracy
- ±0.003mm
- Vacuum Area
- 580 * 360Mm (can be customized)
- vacuum aperture
- Φ0.8mm
- Vacuum hole spacing
- 20*20mm
- Pumping Speed
- 5.4m3/h
- Ultimate Vacuum
- 50KPa
- Vacuum Pump Power
- 180W
- Vacuum pump Weight
- 7.1kg

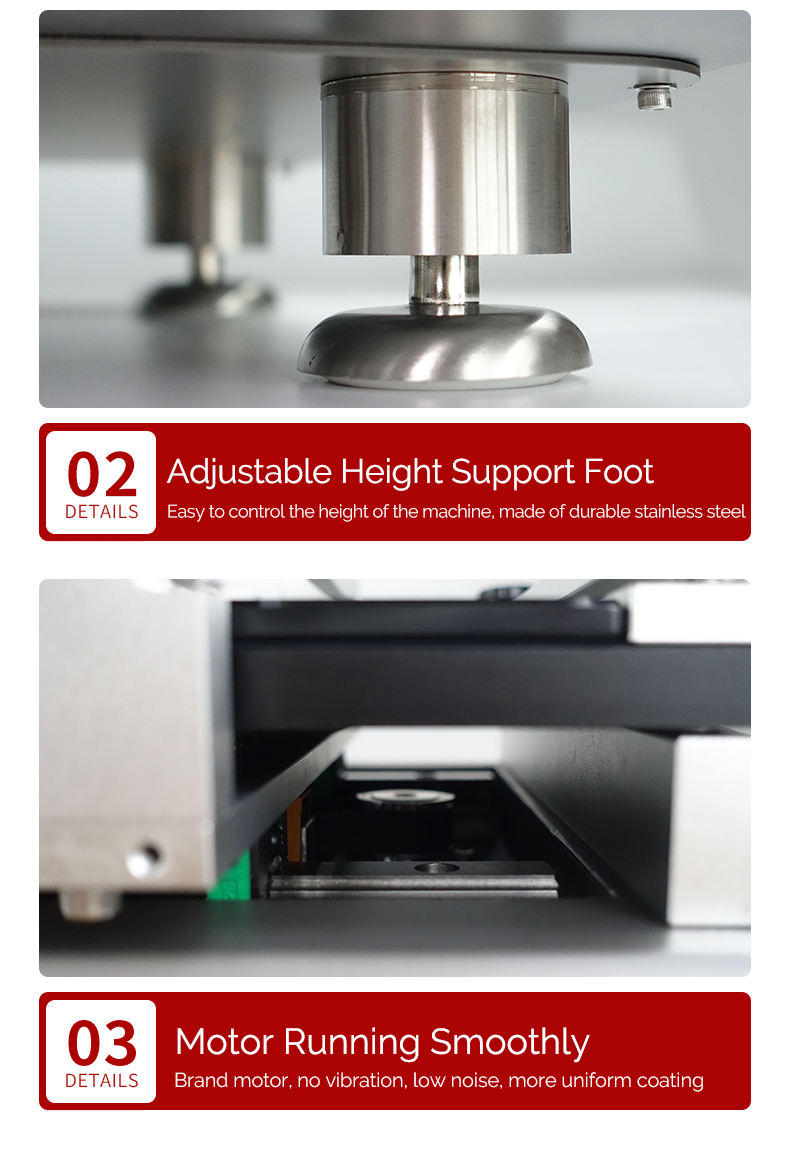

- Drive motor
- Servo motor
- Power
- 600w
- Operating language
- Chinese (can be customized in English)
- Display
- Color LCD touch screen
- Host Power Supply
- 220V/50HZ (can be customized 110V/60HZ)
- Dimension
- 760*540*430mm
Overview

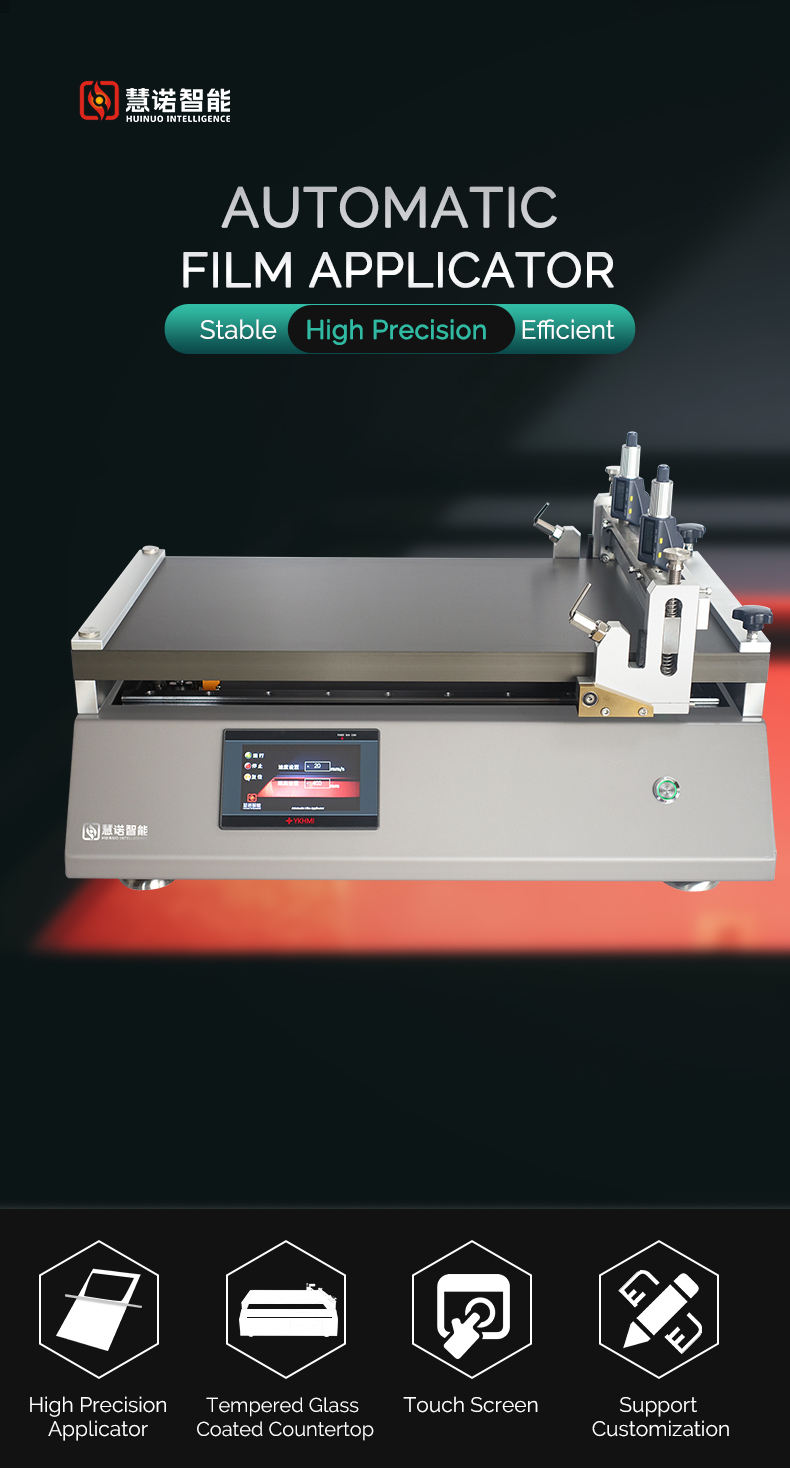

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate by controlling the Spreader head and Spreader parameters to form the desired film.

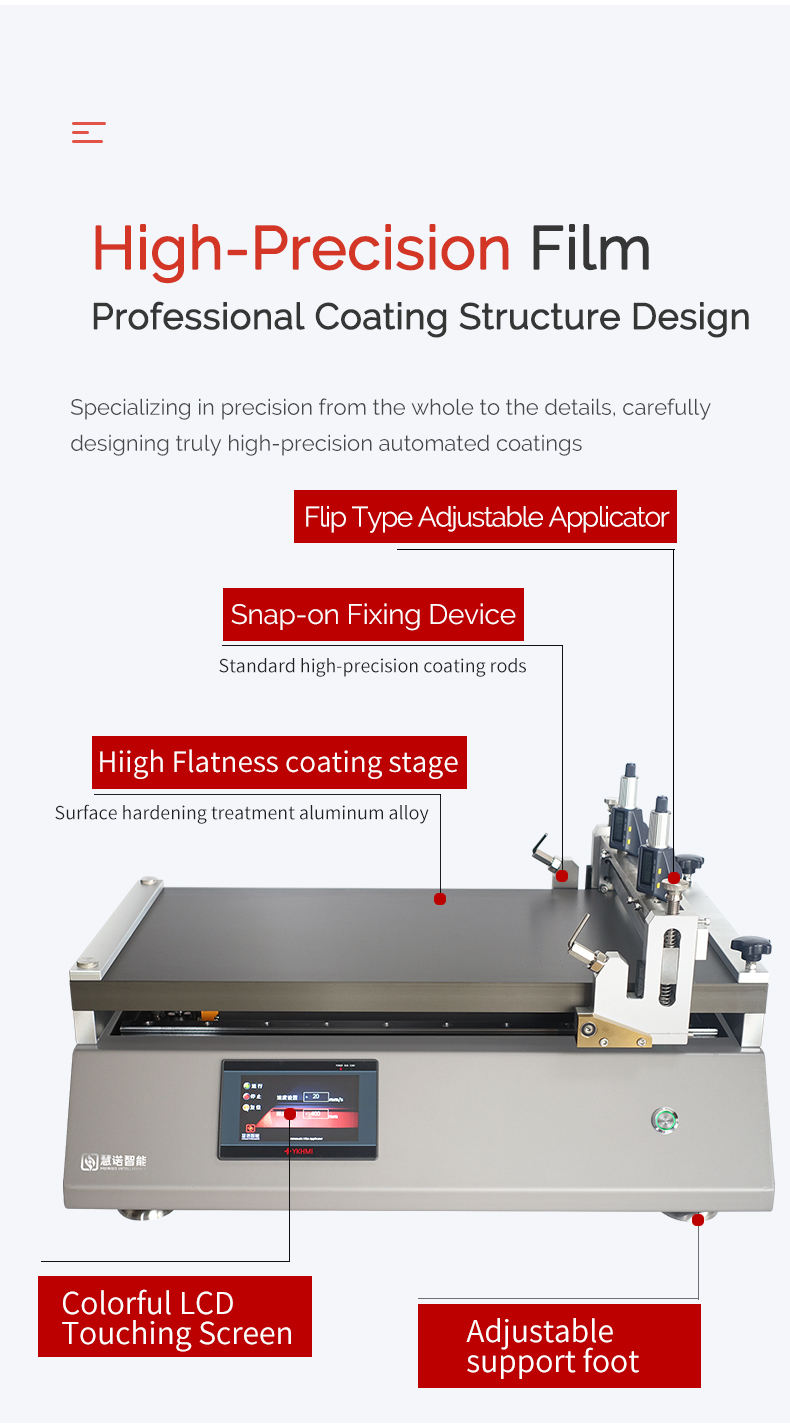

This film Applicator is a wire rod drawdown blade coater, with wire rod Spreader and drawdown blade two functions, the new bar Installation method and flip type drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and application length adjustment function, suitable for laboratory high-precision automatic film, Moulding proofing in university research institutes, New material, lithium battery, glue, Resin and other laboratories.
Use
Film Applicator is suitable for Coating, inks, paints, slurry, lithium battery, Pressure sensitive adhesive, Resin, glue, polymer materials, pharmaceuticals and other film samples, which can be scraped on Glass, cardboard, fabric.
Features

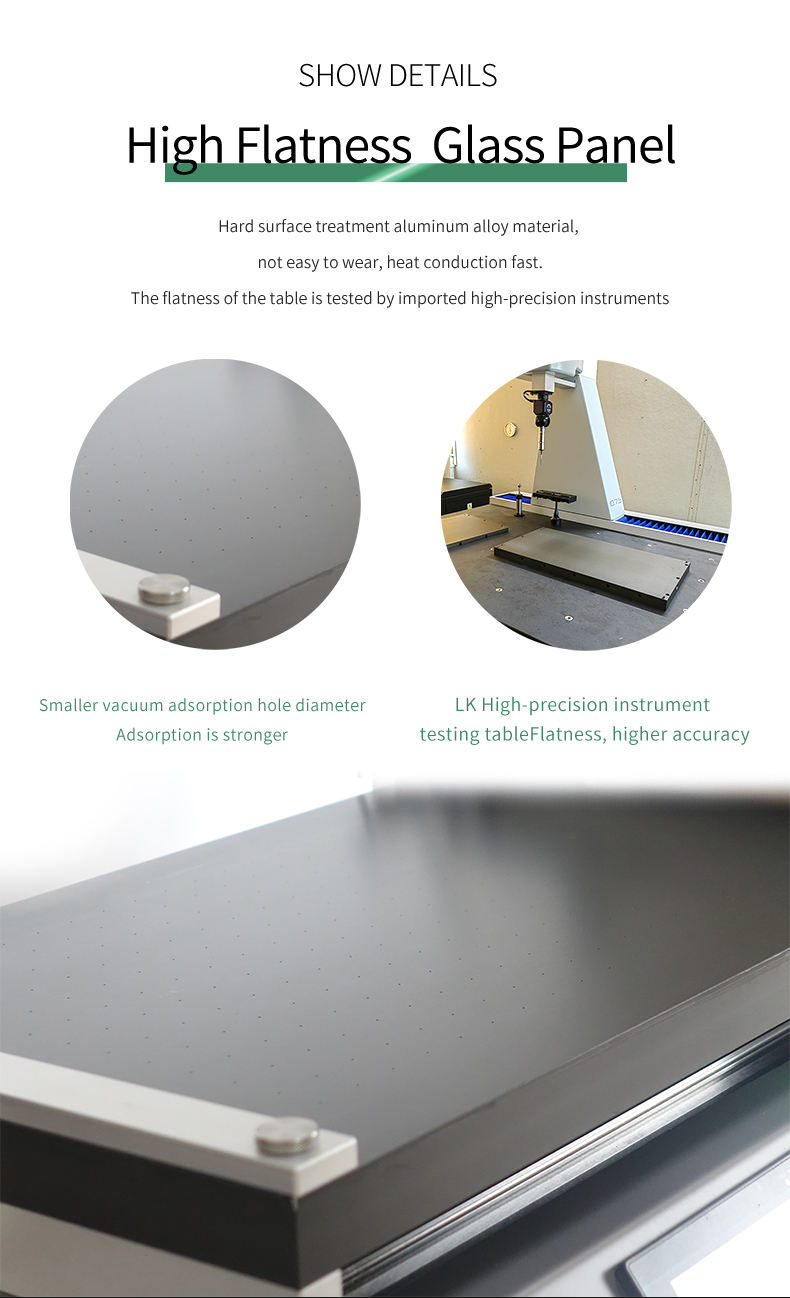

1) Glass countertop is 3c certified national standard genuine all tempered Glass plate, gold crystal original sheet, heat resistance 600 ℃, scratch resistance
2) Big brand differential regulator, high film thickness control accuracy

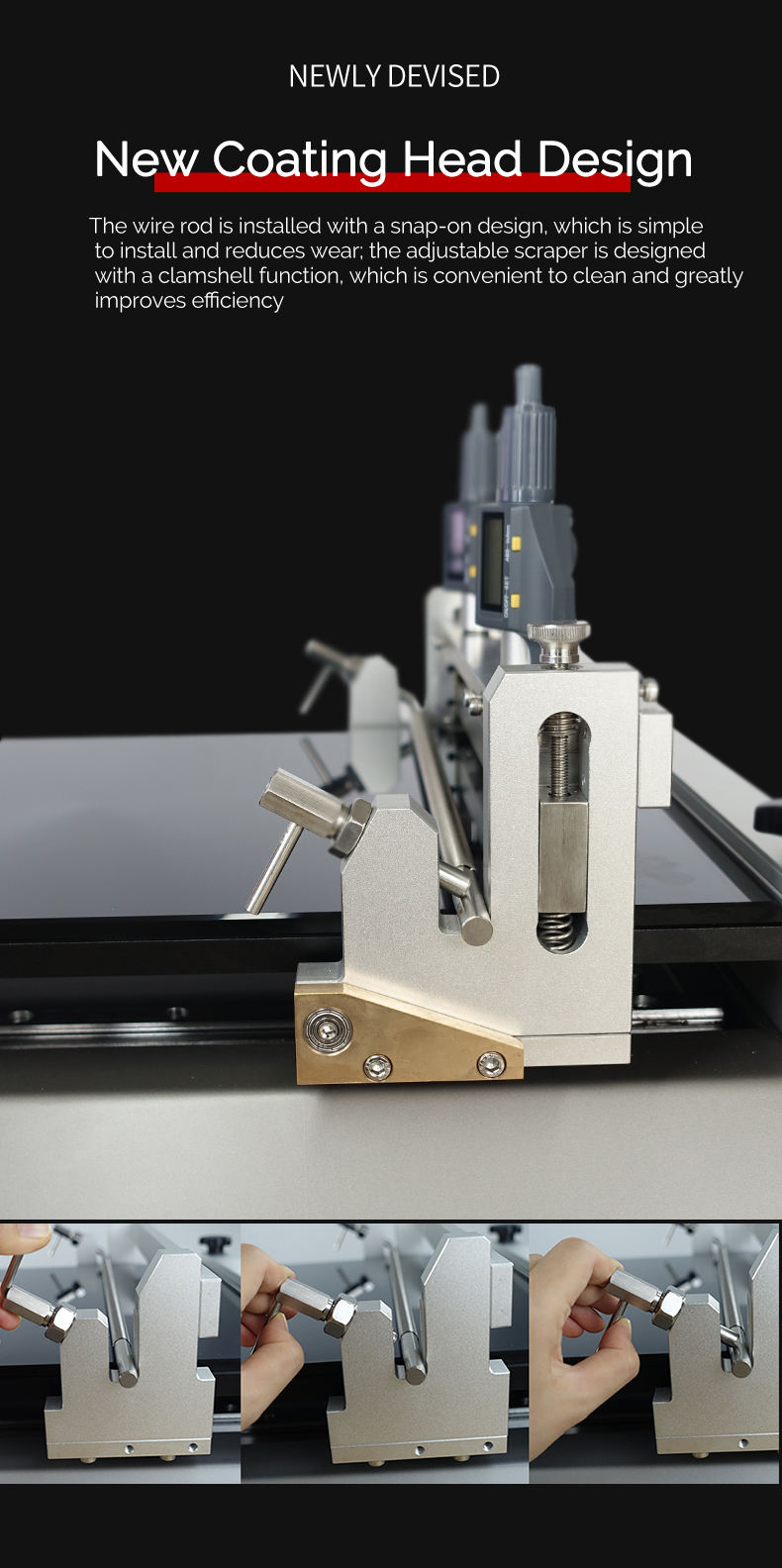

3) Flip type drawdown blade head, easy to clean
4) with high-precision Film Applicator, the original imported rod film uniform accuracy

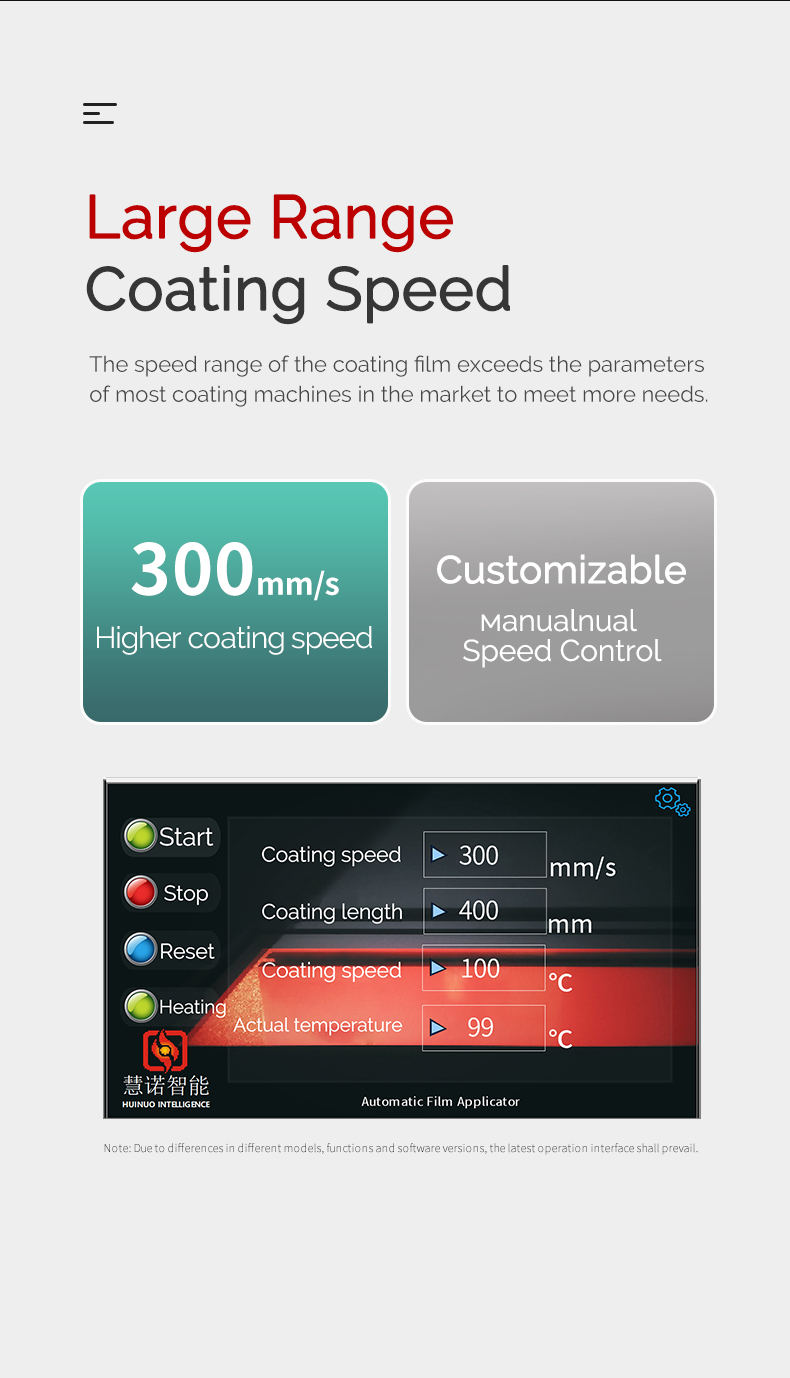

5) Touch screen control panel, easy to operate
6) Free adjustment of application length and Spreader speed
