MODERNER QCJ-II-A film impact test device 1m GB/T1732

SE
Impact height is 0~100cm, drop weight mass 1000g, Striker Diameter is 8 mm, die base aperture is 15 mm, meeting standard GB/T 1732.
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

Moderner QCJ-II-A(1m) Film impact testSPEC

Moderner QCJ-II-A(1m) Film impact testDetails

Moderner QCJ-II-A(1m) Film impact testPacking list

SKU
NB032304
Impact method
Spherical Clash Top Strike
Impact height
0~100cm
Drop Weight Mass
1000g
Striker Diameter
F8mm
die base aperture
F15mm
Standards
GB/T 1732-1993
Overall Dimensions
252*140*1340mm
Instrument net Weight
14kg
QCJ-II-A(1m)
Film impact test
Impact height is 0~100cm, drop weight mass 1000g, Striker Diameter is 8 mm, die base aperture is 15 mm, meeting standard GB/T 1732.

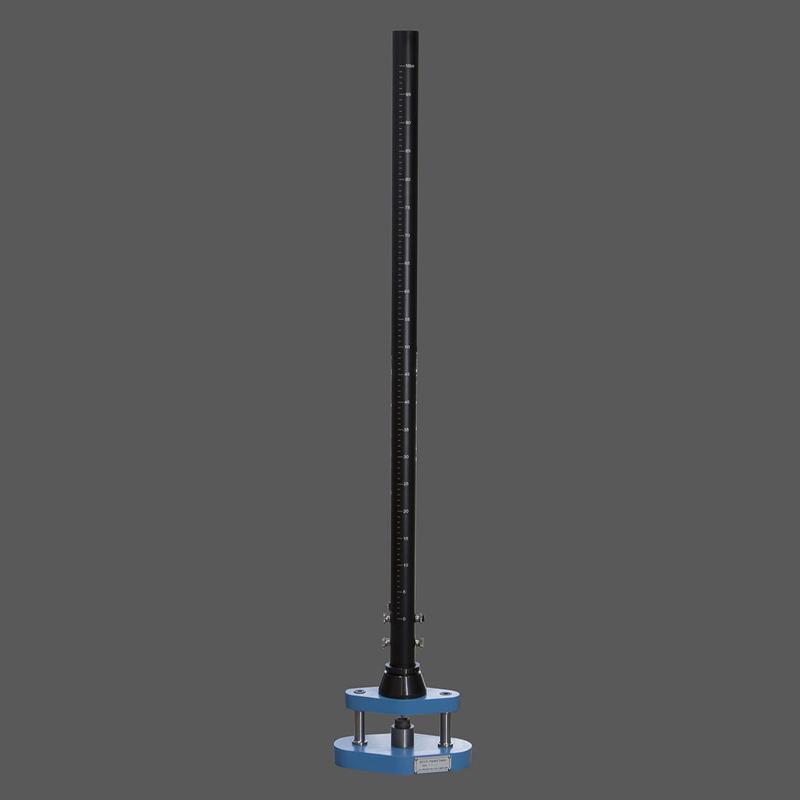

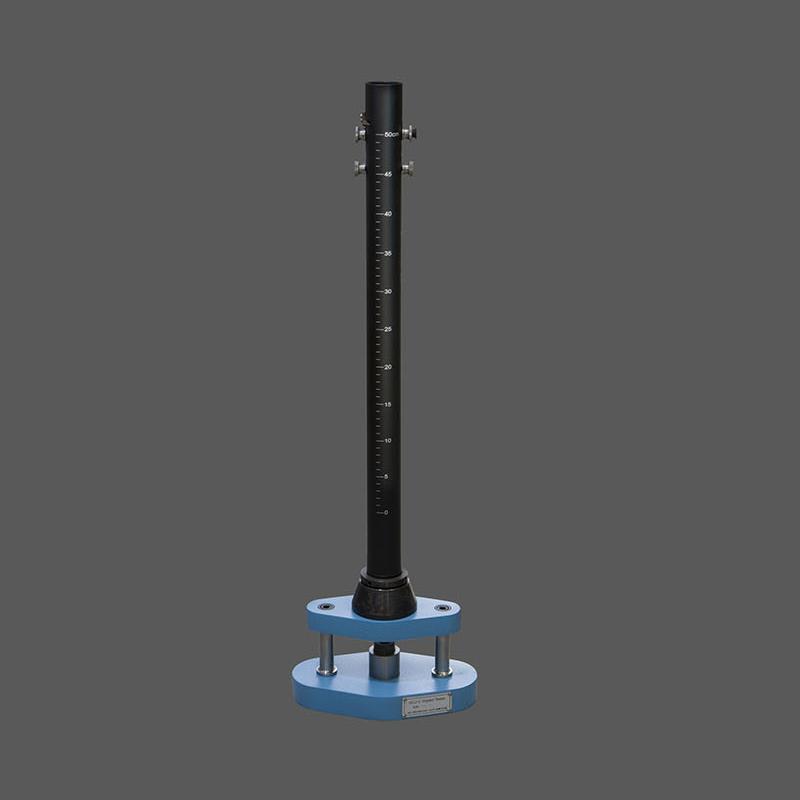

MODERNER QCJ-II-A film impact test device 1m GB/T1732 Picture

The QCJ-II paint film impact Tester is designed according to the GB/T1732-93 standard. It uses a heavy hammer to drop from a specific height to form an impact on the sample paint film. The impact resistance of the paint film is measured by observing the damage of the paint film. The impact resistance of the paint film is expressed by the maximum height (in centimeters) that does not cause damage to the paint film.

Detail image

MODERNER QCJ-II-A (1m) Paint Film Impact Tester Details Figure 1

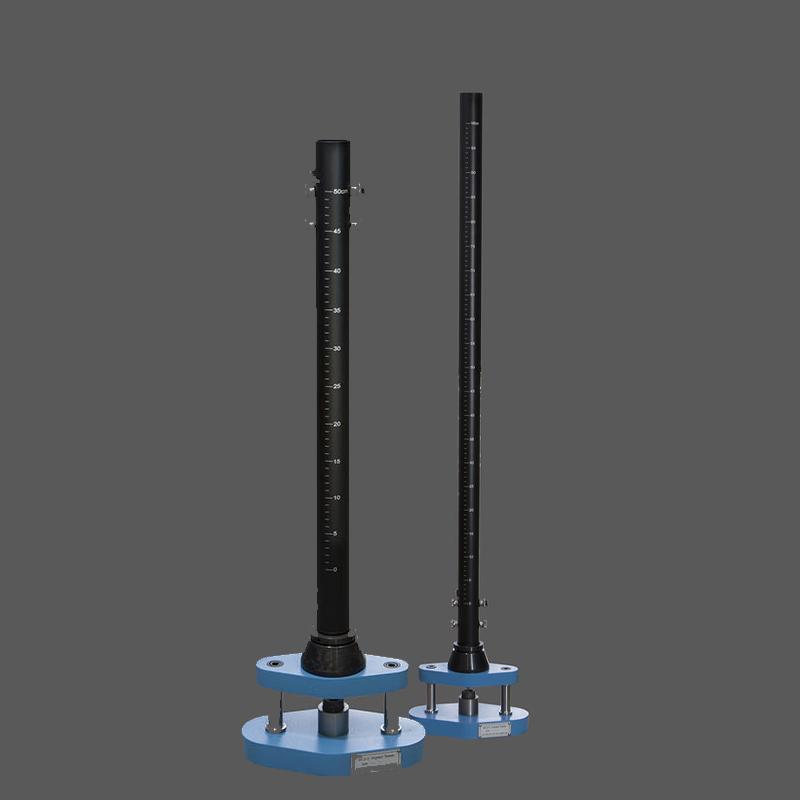

Models

nameFilm impact Testerelastic impactorHeavy Duty Impact Tester
modelQCJ-II(0.5m)QCJ-II-A(1m)TCJ-II (0.5m)ZCJ
Impact methodball punchball drop hammerball punch
Impact height0～50cm0～100cm

0～100c

0～40inch

0～100cm

0～40inch

Weight drop1kg1kg/2Lbs1kg/300g
Additional mass-1kg/2Lbs1kg
Steel ball diameter8mm20mm/15.9mm12.7mm/15.9mm
Die base aperture15mm27mm/16.3mm16.3mm/31.75mm
Dimensions252*140*840mm252×140*1340mm300*300*1400mm300*240*1400mm
weight14kg19kg18kg
FAQ
QDoes the Impact Tester meet the GB/T1732 standard?
A In line with.
QExcuse me, do you have a coating imapct tester that meets the standard of 1732 and has a height of 120c?
A Yes, it conforms to 1732, but the maximum Impact height is 1 meter, not 120cm.
QCan this impactor test plasticity coating?
A No, please use ZCJ heavy duty impactor
QCan this paint film impact test be applied to GB/T7788?
A OK
QWhat are the impactors that meet the national standard GB/T 1732-2020?
A This one matches.
