Specifications
| host display | 240 × 160 dot matrix LCD |
| Power Supply | 4 1.5VAAA alkaline batteries |
| Operating temperature | 0℃~50℃ |
| Storage temperature | -20~60℃ |
| Host size | Length 148mmX Width 76mmX Thickness 26mm |
| Weight | 194G (including battery) |
| Measurement principle | Eddy Current |
| matrix material | Non-ferrous magnetic metal |
| Measurement range | 0~1500μm |
| Resolution | 0.1μm|1μm|0.01mm |
| Repeatability | ≤ +/- （ 0.8% reading + 0.1μm) hand pressure testing device |
| margin of error | ±2% |
| Unit display | μm/mil |
| Measurement interval | 0.8s |
| Minimum measurement surface | Φ7mm |
| Minimum radius of curvature | Convex 1.5mm, Concave 10mm |
| Minimum substrate thickness | 0.05mm |
| User calibrated | Support zero point calibrating, 1 point to 5 point calibrating |
| Probe size | Φ15*110mm |
| Probe Weight | 81g |
Packing list

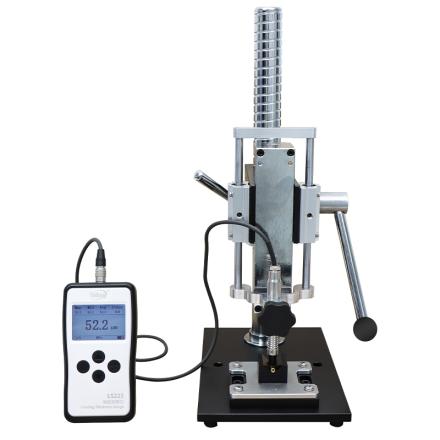

Host x1, N1500 probe x1, zero adjustment plate x1, test fixture X1, standard piece x7, manual x1, certificate/quality assurance card x1, 1.5V AAA alkaline battery x4, plastic engineering box x1
After-sales instructions
Warranty days: 365 days
1. If the instrument and equipment are not artificially caused by product quality problems, the manufacturer provides 1 year free warranty service;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/32317/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
