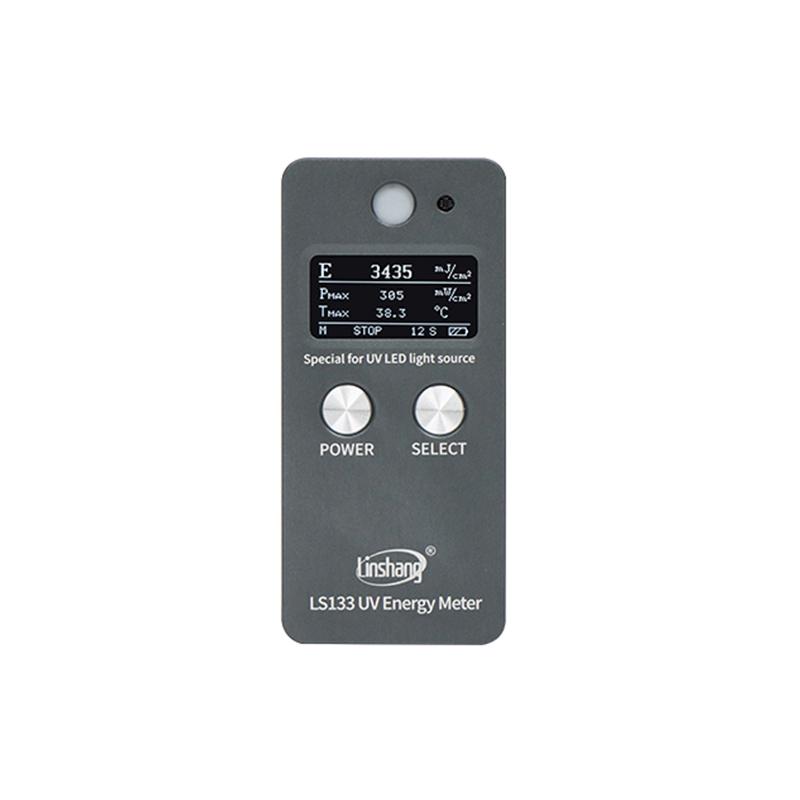

Linshang LS133 UV energy meter UV energy meter basic version

LS133

UV energy meter

Introduction

LS133UV energy Tester can display UV intensity, UV energy and temperature values ​​at the same time, suitable for measuring various UV LED light sources such as 365nm, 385nm, 395nm, 405nm. It is mainly used for radiation intensity and energy detection of UV light sources in UV dryers, curing machines, mobile phone UV coating machines, exposure machines, printing machines and other equipment. The instrument adopts ultra-small size design, the size is about the size of a bank card, and the body is slim, which breaks through the limitation of measurement space and can be used normally in narrow spaces.

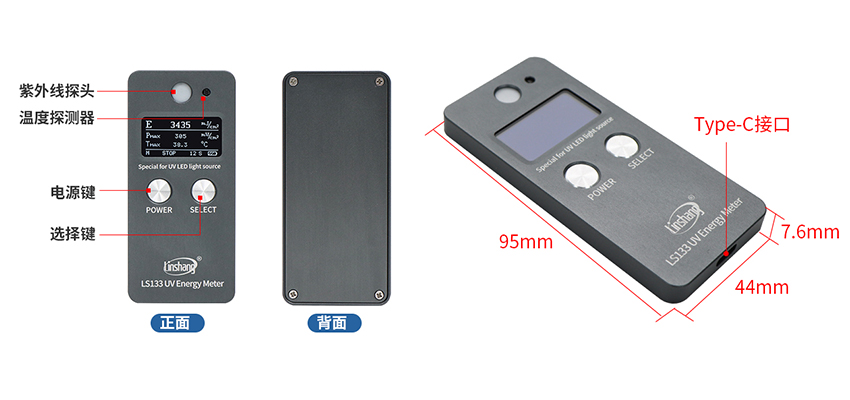

Product Structure

Features

1. Small and light, with a width of 44mm and a thickness of only 7.6mm, there is no need to worry about limited measurement in narrow spaces.

2. The spectral response range is wide, suitable for measuring UV LED light sources with various wavelengths such as 365nm, 385nm, 395nm, and 405nm.

3. 2048 times/second high-speed data collection can ensure that the instrument has very good repeatability and accuracy.

4. Equipped with a high-precision and fast-response temperature Detector and timer, it dynamically measures the actual temperature in the curing machine and displays the measurement time on the screen.

5. The real-time power value can be displayed during the measurement, and the energy accumulation value and the maximum power value can be directly displayed after the measurement is completed.

6. Metal casing, high temperature resistant design, can run in an environment of 100 degrees Celsius for a long time.

7. Long press the POWER button in the off state to enter the setting interface to set the measurement mode, power trigger value, smoothing, calibration standards and other parameters. The parameter setting steps are as follows:

8. The automatic measurement mode is suitable for production lines with long conveyor belts and short UV exposure time, while the manual mode is more general.

9. The stored data will not be lost when the power is off, and the last test data will be displayed automatically when the machine is turned on

Packing list：Host X1, USB data cable X1, DC5V power adapter X1, manual X1, certificate X1, warranty card X1, plastic engineering box X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
