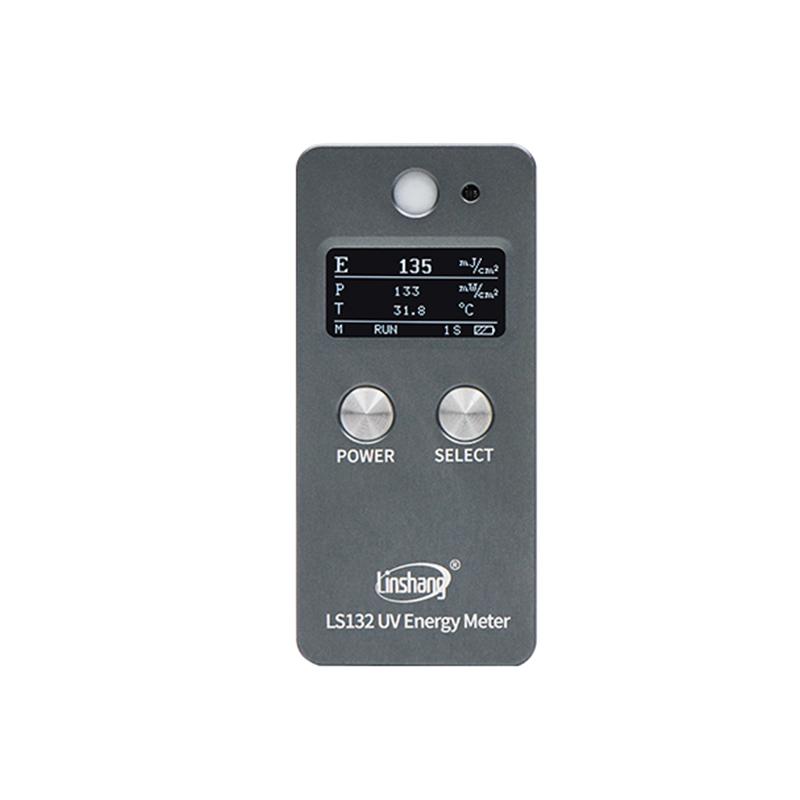

Linshang LS132 UV energy meter, basic version, temperature measurement
LS132
LinShang LS132 UV energy meterSPEC
LinShang LS132 UV energy meterDetails
LinShang LS132 UV energy meterPacking list
- SKU
- NB032326
- Light spectrum range
- 315nm-400nm ，λp = 365nm
- Power Measurement range
- 0-2000mW/cm²
- Power Resolution
- 0.1mW/cm²
- Energy Measurement range
- 0~999999mJ/cm²
- Energy measurement Accuracy
- ± 10%, ± 5% typical
- Sampling speed
- 2048 times/second
- recording period
- 32 minutes
- Power
- Rechargeable lithium battery 3.7V@400mAh
- show
- 128X64 dot matrix OLED
- size
- Length 95mm × Width 44mm × Height 7.6mm
- Weight
- 57g
Introduction
LS132UV energy meter is a professional ultraviolet detection instrument for detecting UV energy and UV intensity in high-pressure mercury lamps, halogen lamps and other light sources. It can be used in various curing machines, UV coating machines, dryers, exposure machines, printing machines and other equipment. UV intensity, energy and temperature measurement. It adopts ultra-small size design, small and light, no need to worry about the space restriction of the use occasion, and the measurement in a small space is worry-free.

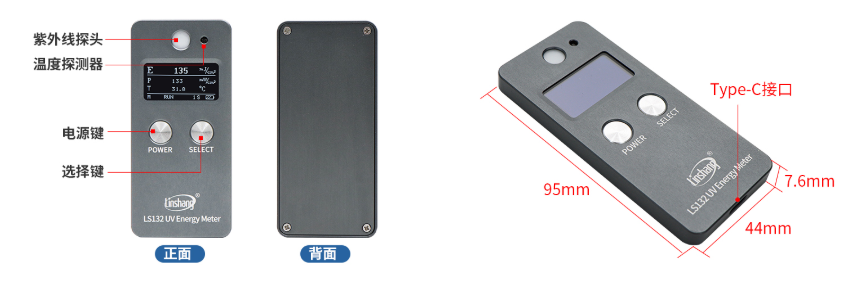

Product Structure
Features
1. The body is slim, with a thickness of only 7.6mm and a width of 44mm, so there is no need to worry about being limited by the measurement space.
The sampling speed of 2.2048 times/second provides accurate data for the UV energy meter, and can obtain a calibration certificate from a trusted testing institution.
3. The real-time power value can be dynamically displayed during measurement, and the energy accumulation value and maximum power value can be automatically counted after the measurement is completed.
4. Built-in high-precision and high-sensitivity temperature Detector and timer, which can dynamically display the actual temperature in the curing machine and other equipment and accurately record the measurement time.
5. With high temperature resistant design, it can work normally for a long time in an environment of 100 degrees Celsius.
6. It will automatically display the last test data when it is turned on, so there is no need to worry about data loss.

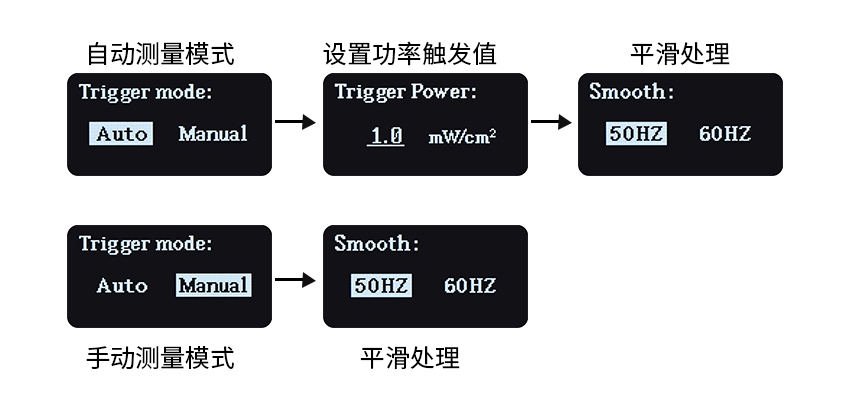

7. When the instrument is turned off, press and hold the POWER button to enter the setting interface to set the measurement mode, power trigger value and smoothing parameters. The parameter setting steps are shown in the figure below;
8. The manual measurement mode is suitable for most measurement occasions, while the automatic measurement mode is suitable for occasions where the instrument needs to run with the conveyor belt for a long time before it can receive ultraviolet rays.
