FlexTest-T-F Flexible Test System, Membrane Twist Clamp

Nano Electronic FlexTest-T-F Flexible Test System Film Torsion Clamp Angle Accuracy 1.0 °, Sample Film thickness 0-1.0mm, Sample size Max (160 * 280) mm, Bending angle ± 90 °, FlexTest-T-F Flexible Test System Film Torsion Clamp is suitable for torsion testing of thin films, coatings, flexible display screens, organic light-emitting devices and other materials.
Contact
Details SPEC CAT

NanoUp FlexTest-T-F Film twist fixtureSPEC

NanoUp FlexTest-T-F Film twist fixtureDetails

NanoUp FlexTest-T-F Film twist fixturePacking list

SKU
NB032365
Angle Accuracy
1.0°
Film thickness
0-1.0mm
Sample size
Max(160* 280)mm
Bending angle
±90°
Bending speed
0-1080.0° /s
Number of sexual repeability
10000000 times
Weight
16.6Kg
Fixture size
492*359*295mm
Complete-built unit size
935*400*425mm
FlexTest-T-F
Film twist fixture

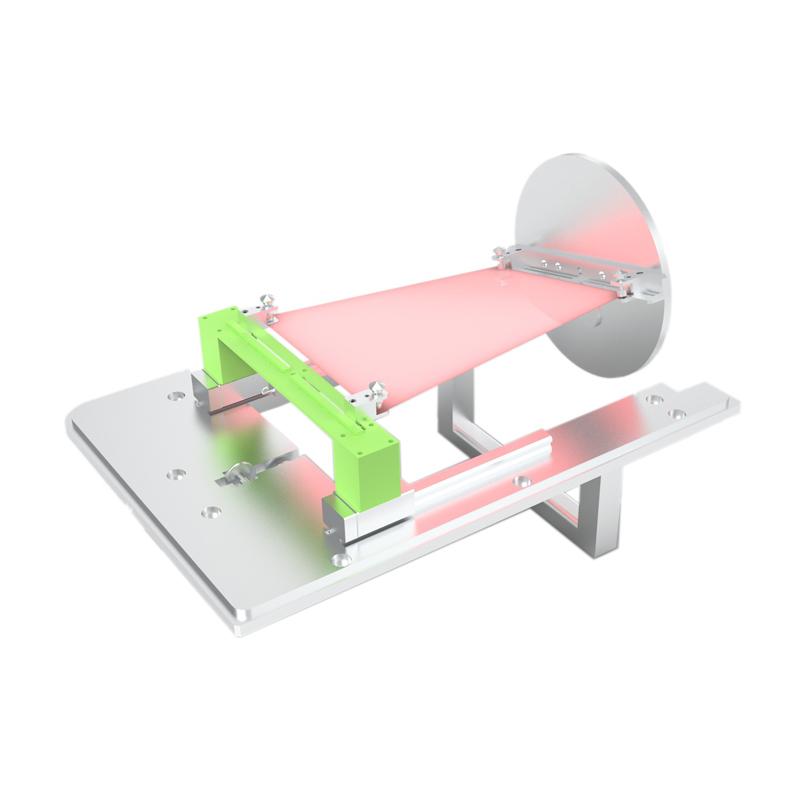

FlexTest-T-F Flexible Test System, Membrane Twist Clamp Picture

Introduction

The emergence of flexible electronics has provided a new direction for the development of classical electronics and triggered the emergence of new forms of electronic devices. However, in the process of transforming electronic materials and devices from rigid to flexible, the traditional rigid test methods have become unable to fully adapt, and the matching flexible test system has become necessary to promote the development of the flexible electronics industry.

In the testing process of flexible electronic materials and devices, especially in the initial stage of development and verification of flexible electronic materials and devices, it is of great significance to develop a modular flexible materials and devices test system with high degrees of freedom to improve the efficiency of development and verification and reduce the test cost.

Product Features

  • High reliability (million cycles)

  • Sample adaptability (same tensile force in the process, no bending)

  • Scalability (Optical, Electrical Performance Testing Assistance Systems)

Scope of application

Torsional testing of flexible materials and devices such as films, coatings, flexible displays, organic light-emitting devices, planar wearable products, flexible printed circuits, and flat cables.

Operating Principle

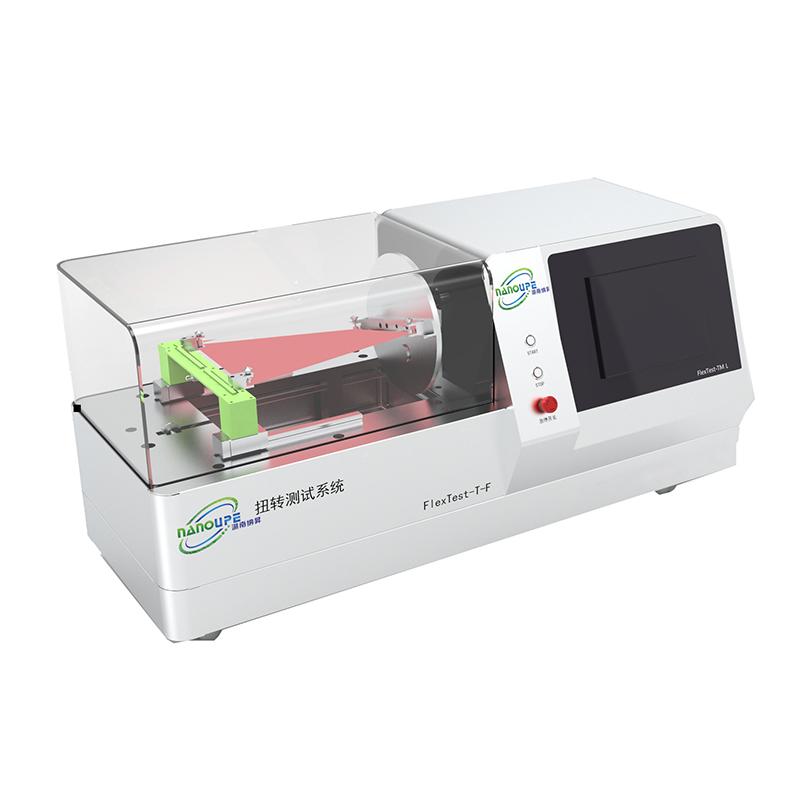

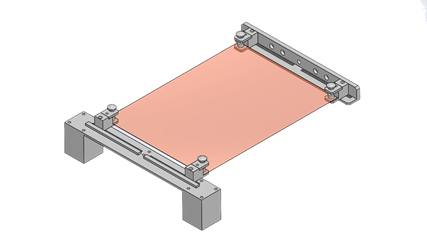

Detail 1 of Nascent's FlexTest-T-F Film Torsion Fixture

Detail 2 of Nascent's FlexTest-T-F Film Torsion Fixture

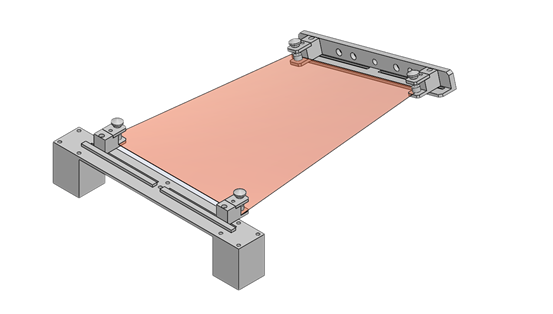

Detail 3 of Nascent's FlexTest-T-F Film Torsion Fixture
