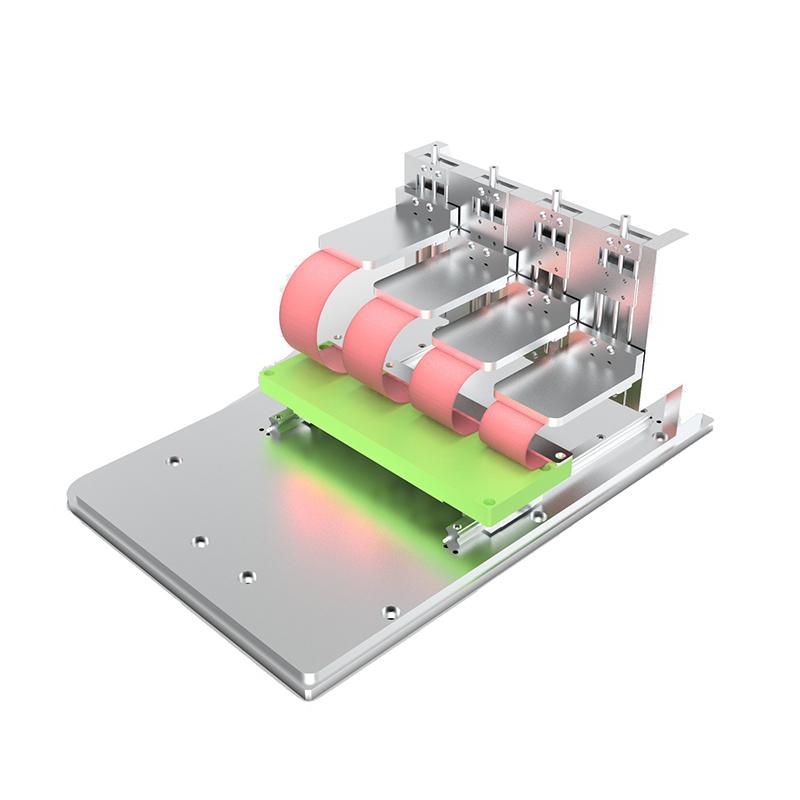

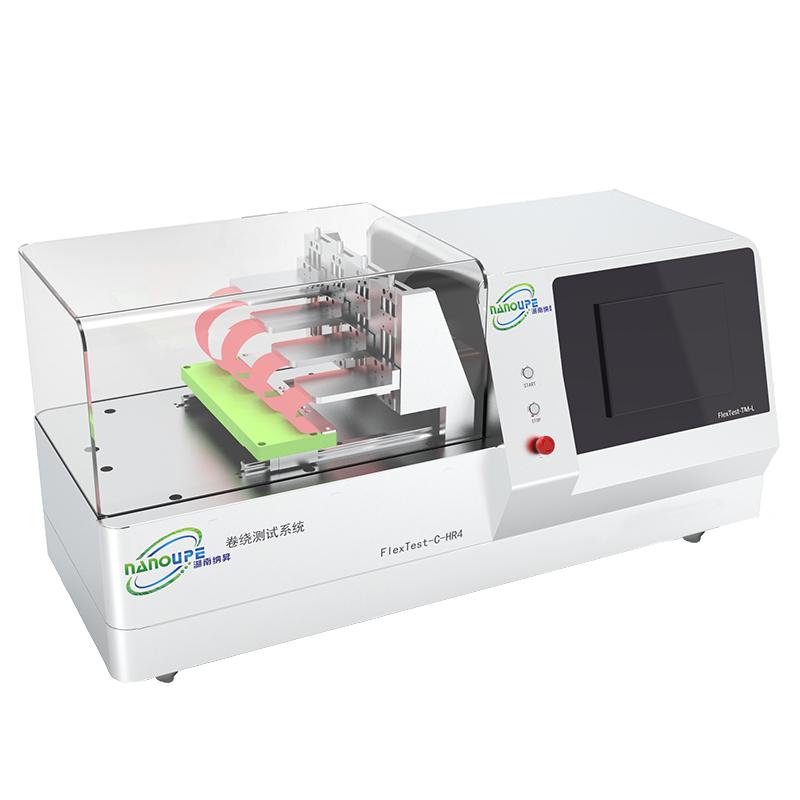

FlexTest-C-HR4 Flexible Test System, Four Position Winding Clamp

FlexTest-C-HR4

Four-position winding fixture

Introduction

The emergence of flexible electronics has provided a new direction for the development of classical electronics and triggered the emergence of new forms of electronic devices. However, in the process of transforming electronic materials and devices from rigid to flexible, the traditional rigid test methods have become unable to fully adapt, and the matching flexible test system has become necessary to promote the development of the flexible electronics industry.

In the testing process of flexible electronic materials and devices, especially in the initial stage of development and verification of flexible electronic materials and devices, it is of great significance to develop a modular flexible materials and devices test system with high degrees of freedom to improve the efficiency of development and verification and reduce the test cost.

Product Features

• Test zero stress

• No surface friction

• Large curvature, large area of sample (sample size and curvature adjustable)

• High stability

Scope of application

Flexure testing of flexible materials and devices such as thin films, coatings, flexible displays, organic light-emitting devices, RFID, wearable electronics, FPCs, and flexible printed circuits.

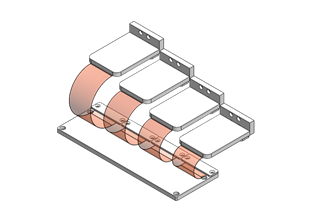

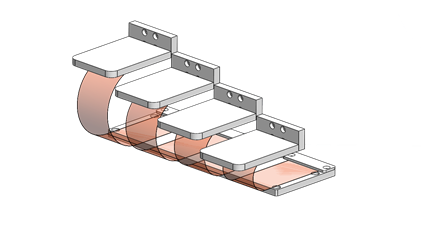

Operating Principle

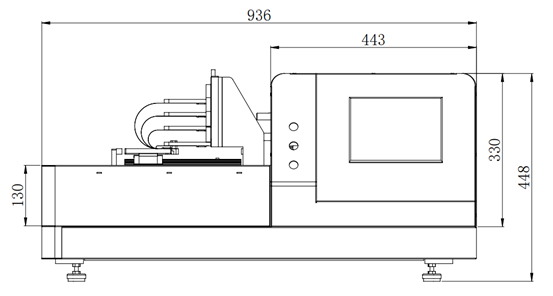

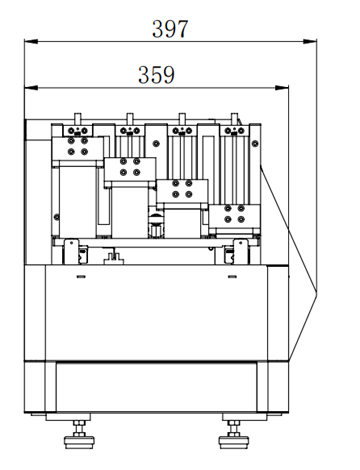

Product dimensions

Packing list：Fixture X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
