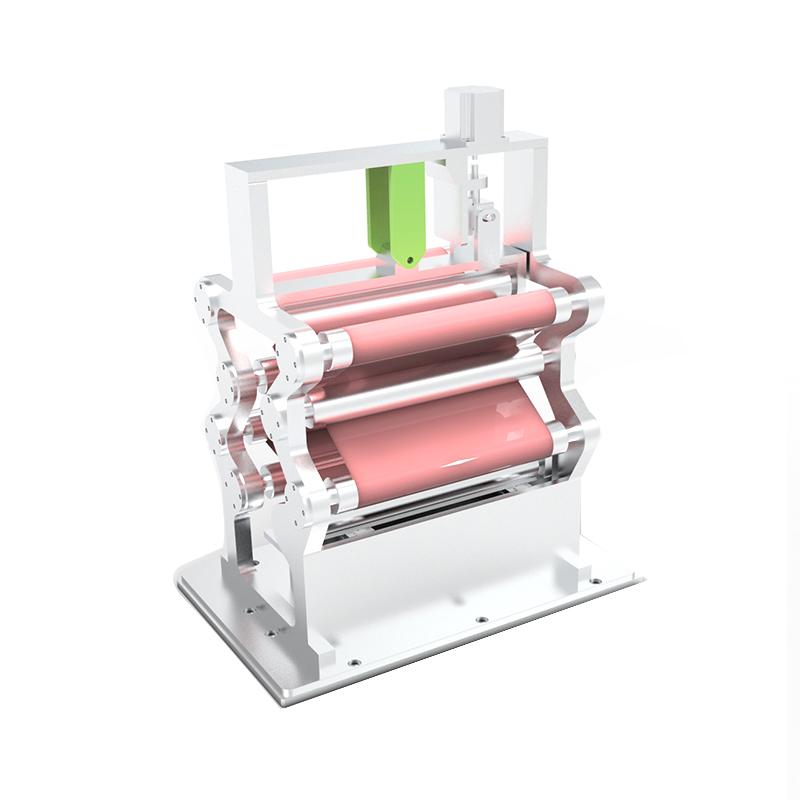

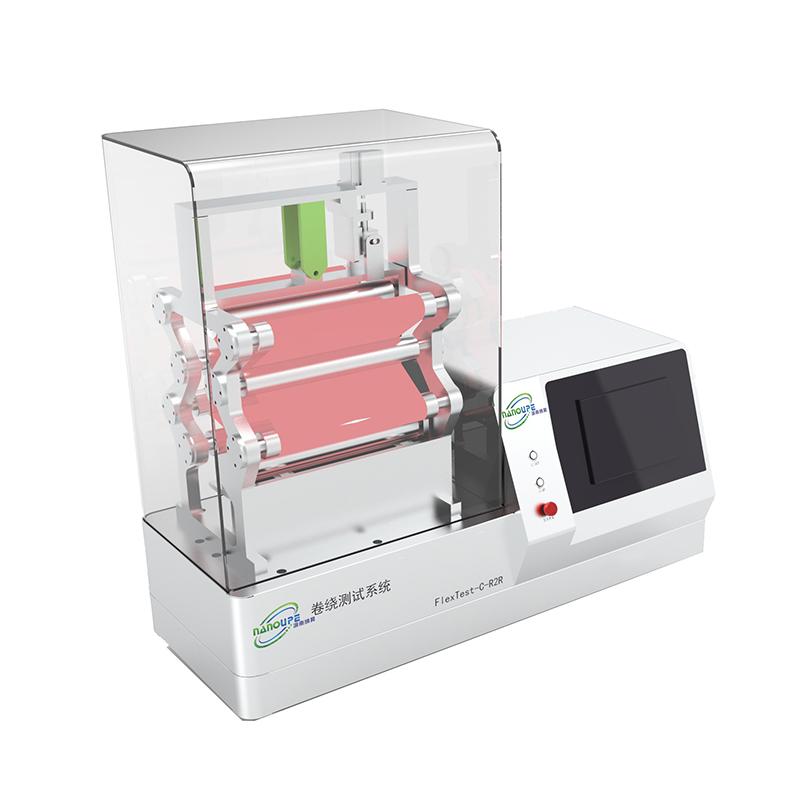

FlexTest-C-R2R Flexible Test System, Multi-Axis Winding Clamp

FlexTest-C-R2R

Multi-axis winding fixture

Introduction

The emergence of flexible electronics has provided a new direction for the development of classical electronics and triggered the emergence of new forms of electronic devices. However, in the process of transforming electronic materials and devices from rigid to flexible, the traditional rigid test methods have become unable to fully adapt, and the matching flexible test system has become necessary to promote the development of the flexible electronics industry.

In the testing process of flexible electronic materials and devices, especially in the initial stage of development and verification of flexible electronic materials and devices, it is of great significance to develop a modular flexible materials and devices test system with high degrees of freedom to improve the efficiency of development and verification and reduce the test cost.

Product Features

 Continuous winding test (including forward and reverse reverse)

Large curvature, large area, continuous samples

High stability (million cycles)

Scope of application

Winding testing of flexible materials and devices such as films, coatings, flexible displays, RFID, wearable electronics, FPC, and flexible printed circuits.

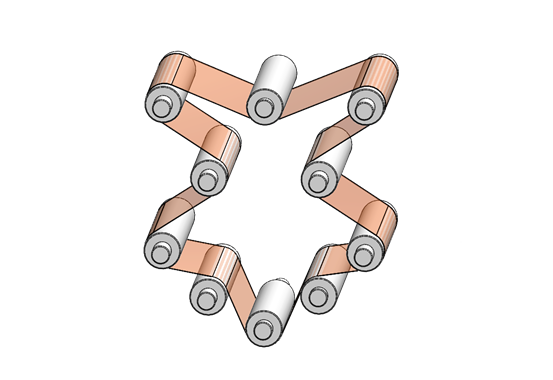

Operating Principle

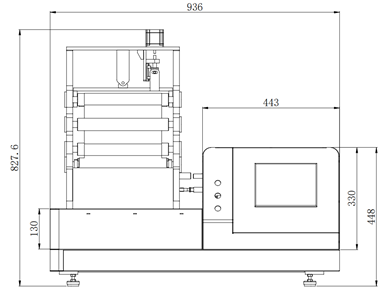

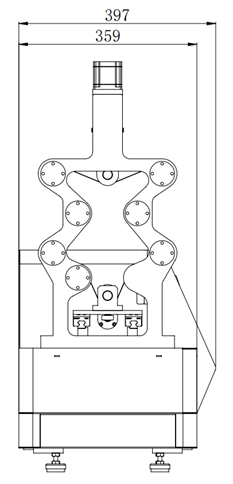

Product dimensions

Packing list：Multi-axis winding fixture X1, manual X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
