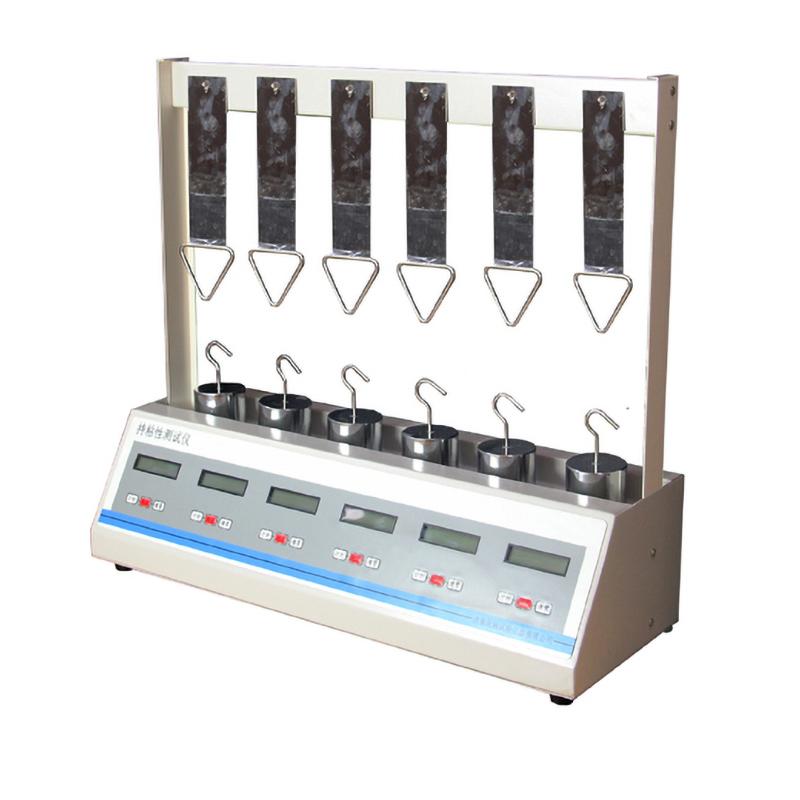

Weishen PCZ-06 Lasting Adhesive Tester Six Station Adhesive Tester

SP-06

Lasting Adhesive Tester

product description

PCZ-06 stickiness tester is suitable for stickiness test of various adhesive products, such as pressure-sensitive tape, medical patch, self-adhesive, protective film, etc. During the test, the test plate with the sample attached is hung vertically on the test frame, and the weight of the specified weight is hung at the lower end, and the adhesive tape is characterized by the displacement of the sample after a certain period of time, or the time when the sample is completely detached. Ability to resist pull-off.

Test Principle

Hang the test plate with the sample attached vertically on the test frame, hang the weight of the specified weight at the lower end, use the displacement of the sample after a certain period of time, or the time when the sample is completely detached to characterize the resistance of the adhesive tape to pull the ability to shed.

product features

1. Using single-chip microcomputer to control the timing, the timing is more accurate and the error is smaller

2. Ultra-long time timing, up to 99h59min59s

3. Imported proximity switch, wear-resistant and anti-smashing, high sensitivity and longer service life

4. The test board and test weights are designed in strict accordance with the standard. The test board is laser cut, with neat and smooth edges, no burr and no curling, which ensures the accuracy of the test data

5. The system is controlled by a microcomputer, with PVC operation panel, membrane buttons and LCD liquid crystal display, which is convenient for users to quickly perform test operations and data viewing

6. Six test stations can carry out multiple test items at the same time

7. Automatic timing, locking and other functions further ensure the high accuracy of test results

8. The function of delayed shutdown of the LCD is newly added to prevent data loss caused by misoperation or sudden power failure of the external power supply

Executive standard

GBT4851, ASTM D3654, JIS Z0237

Packing list：Complete-built unit X1, manual X1, certificate X1, warranty card X1, weight X1, experimental board X1, tripod X1, standard pressure roller X1, cleaning agent X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
