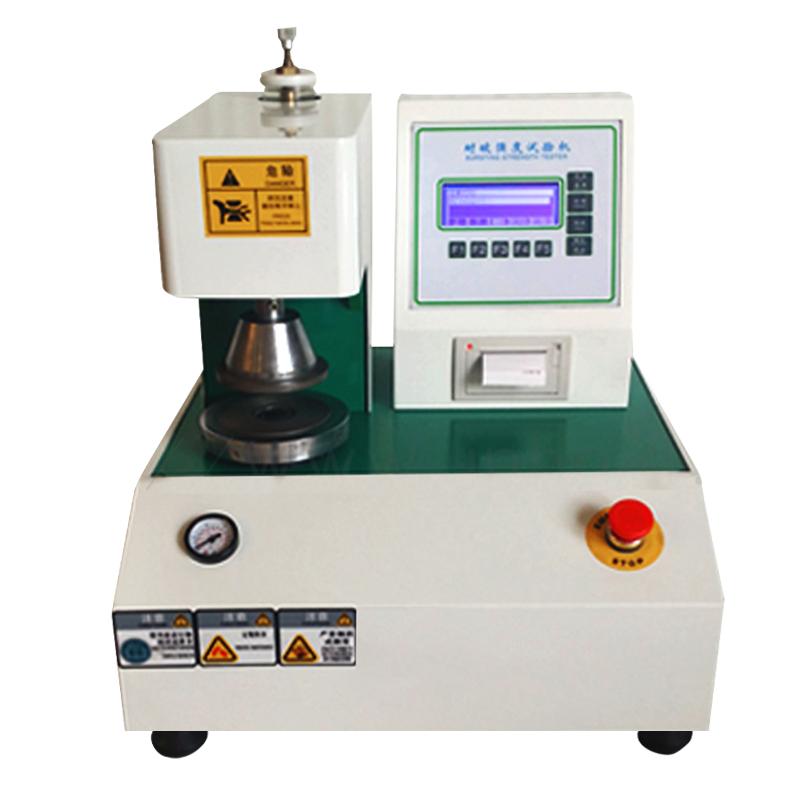

HENGPIN HP-NPD1600Q Paper Burst Tester, in line with GB/T454 and ISO2758
SE
HP-NPD1600Q
-
PUYUN PY-H602B Automatic Burst Strength Tester (paper type) ≤ 1600Kpa paper breaking resistance$ 1392.00SE -
YINUO YN-NPY1600 Microcomputer Burst Strength Tester (touch screen) ≤ 1600Kpa paper breaking resistance$ 1700.00SE -
IMT-201BT Paper Bursting Strength Tester -
YANTE YT-NPY5600Q paper Burst Strength Tester Cardboard corrugated fibreboard$ 2345.00SE -
YANTE YT-NPY1600Q paper Burst Strength Tester$ 2286.00SE
HengPin HP-NPD1600Q Paper Burst TesterSPEC
HengPin HP-NPD1600Q Paper Burst TesterDetails
HengPin HP-NPD1600Q Paper Burst TesterPacking list
- SKU
- NB032411
- Measuring range
- 50 ~ 1600kPa
- Error of indication
- < 0.5% (within 0.3% measured)
- resolution
- 1kPa
- Oil delivery speed
- 95±5mL/min
- Film resistance
- Raise 9mm, 30 ± 5kPa
- Clamping Force
- ≥ 430Kpa
- Upper clamp ring aperture
- F (30.5 ± 0.05) mm
- Lower clamp ring aperture
- F (33.1 ± 0.05) mm
- Power
- AC220V 3A 50Hz
- Dimensions
- 530*360*590mm
- Weight
- About 85Kg
Introduction
HP-NPD1600Q Paper Burst Strength Tester (also known as Paper Burst Strength Tester, Paper Burst Strength Tester, Bursting Strength Tester) is a basic instrument for paper strength performance testing (that is, paper-making testing equipment), using high-precision sensors, high-speed Handle chip design to ensure sampling accuracy. Its various performance parameters and technical indicators comply with the relevant national standards, and it is suitable for bursting strength tests in carton packaging, paper industry, quality inspection, commodity inspection and other departments. The instrument is divided into manual type and pneumatic type due to different clamping methods.
Features
1. The instrument has high precision, fully automatic test, simple and convenient operation, stable and reliable performance.
2. LCD display, Chinese menu operation interface, real-time display of test value and other information during the test.
3. Automatically measure the sample, intelligently lock the maximum peak value, powerful data display and analysis management capabilities, 99 sets of data storage, printing functions, fault alarm prompts and sensor nonlinear correction and other functions.
4. It has the function of switching among the three units of kPa, kgf/cm2 and lbf/in2.
5. Equipped with a micro-printer, the display contents include: test time, test number, test data and test indicators stipulated in relevant standards.
6. The instrument adopts pneumatic clamping of the sample, fully automatic operation, and the air source is provided by the air pump (the air pump is self-provided).
Standards
1. "GB/T 454 Determination of bursting strength of paper"
2. "ISO 2758 Paper - Determination of Bursting Strength"
