Defelsko PosiTector SHDA1 Digital Shore Durometer Standard

PosiTector SHDA1

Shore Shore Durometer

Introduction

Shore Hardness Tester for indentation hardness of non-metallic materials

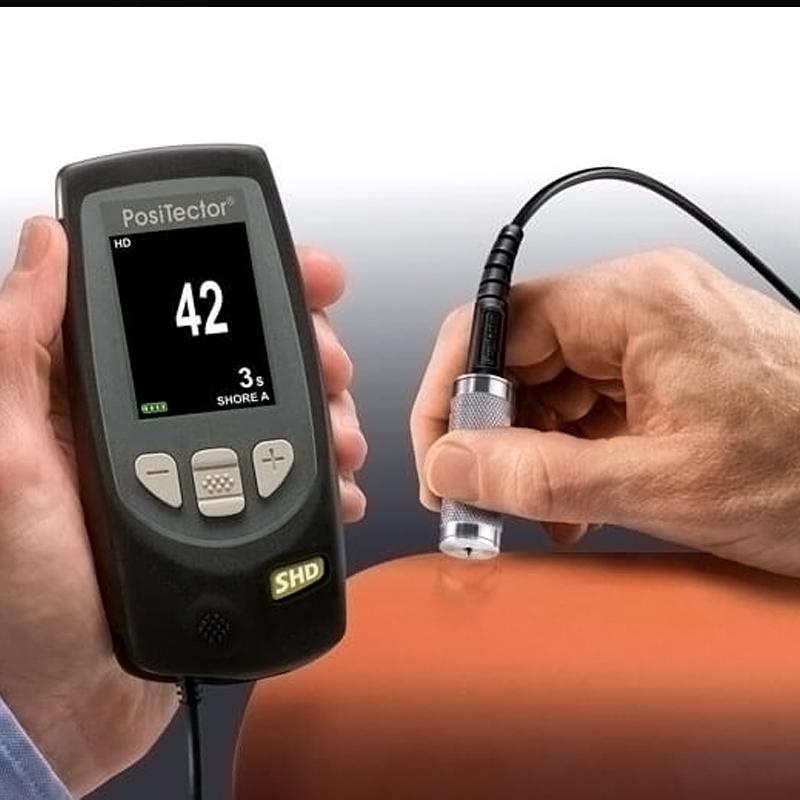

A hand-held Shore Hardness Tester measures the indentation hardness of non-metallic materials. Two Hardness Tester models are available for different hardness ranges – Shore A and Shore D.

• User-adjustable measurement time, screen countdown in accordance with national and international standards

• The auto-ignore mode does not take into account hardness readings below 20 and above 90 under international standards

• Resistant to solvents, acids, oils, water and dust – weatherproof

• PosiTector Interchangeable Platform – Connect any PosiTector probe to a single gage body

• USB, WiFi, and Bluetooth connect to PosiSoft PC, Mac, and Smartphone software

• Includes a calibration certificate traceable to NIST (long form)

• Complies with ASTM D2240, ISO 868/7267/7619 and DIN 53505

Features

1、Simple

• Enhanced one-handed menu operation, including a Chinese interface

• User-defined test time, on-screen countdown display

• The reset function quickly restores the Hardness Tester to its factory state

2、durable

• Acid-proof, oil-proof, waterproof, solvent-proof, dust-proof

• Anti-collision rubber protective cover with waist clip

3、precise

• Each instrument comes with a calibration certificate traceable to NIST standards

• Automatic filter mode to filter out readings below 20% and above 90% according to international standards

• High-resolution mode, the screen display resolution is increased to 0.1

• Measurement blocks are provided randomly

• Compliant with ISO and ASTM standards

4. General

• It can be shared with DeFelsko's ultrasonic Thickness Gauges, coating Thickness Gauges, dew point meters, salt meters, surface roughness meters, and Barcol Hardness Testers

• High-contrast reversible color display with backlight

• Inverted display for easy reading

• Alkaline batteries are used, with the option of a rechargeable battery

5. Effective

• Continuous displays include mean, standard deviation, maximum/minimum, and number of measurements

• Upper and lower limit alarms

• Screenshot function, which can save the screen display as a picture format

• A USB cable can be easily connected to a computer and power the host computer

• The data of the console can be downloaded and browsed from a computer

• This is a program that allows you to upgrade your host computer from your computer

Features of the standard host

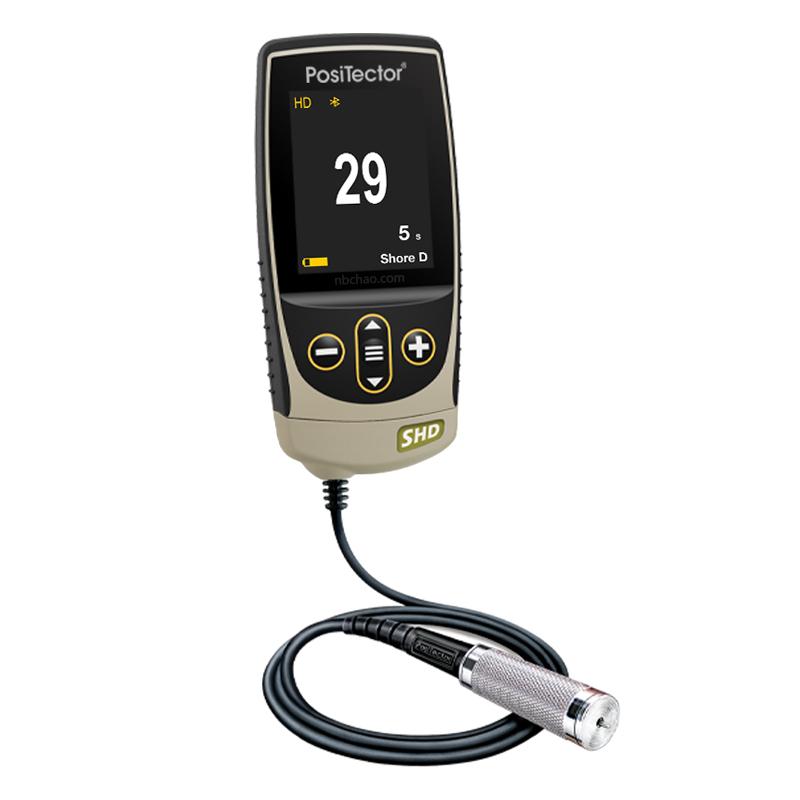

The Defelsko PosiTector SHDA1 Digital Shore Hardness Tester is a standard model with the following features:

• All of the above features

• Up to 250 pieces of data can be stored

Probe detail

Comparison of SHD Shore Hardness Tester models

Packing list：host, probe, standard test block, rubber protective cover with waist clip, 3 AA batteries, USB data cable, nylon portable soft bag, Chinese and English instructions, factory certificate

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
