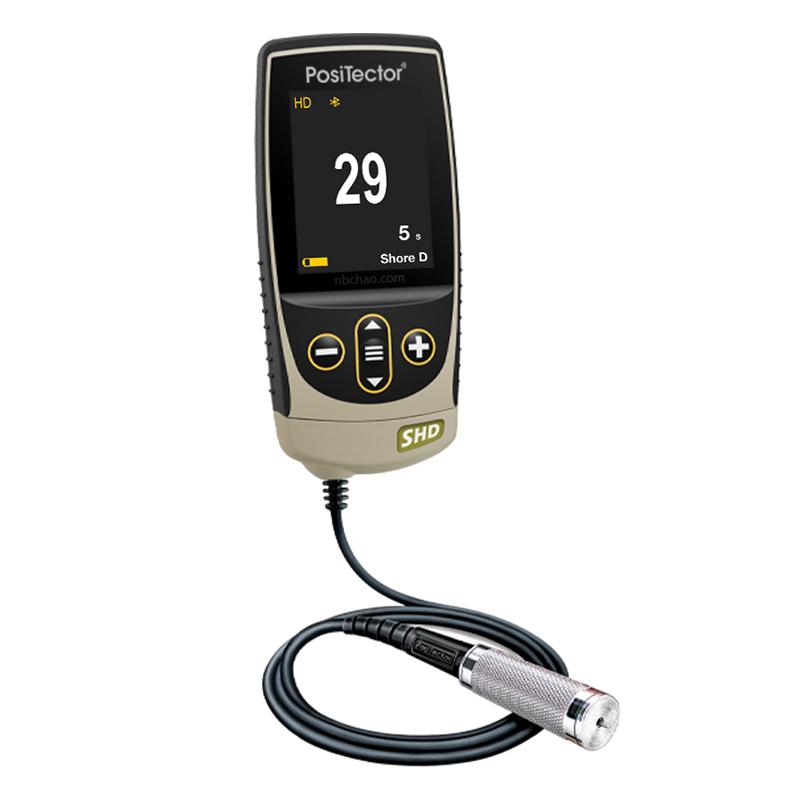

Defelsko PosiTector SHDD3 D Shore Durometer

PosiTector SHDD3

Shore Hardness Tester

Introduction

Shore Hardness Tester for indentation hardness of non-metallic materials

A hand-held Shore Hardness Tester measures the indentation hardness of non-metallic materials. Two Hardness Tester models are available for different hardness ranges – Shore A and Shore D.

• User-adjustable measurement time, screen countdown in accordance with national and international standards

• The auto-ignore mode does not take into account hardness readings below 20 and above 90 under international standards

• Resistant to solvents, acids, oils, water and dust – weatherproof

• PosiTector Interchangeable Platform – Connect any PosiTector probe to a single gage body

• USB, WiFi, and Bluetooth connect to PosiSoft PC, Mac, and Smartphone software

• Includes a calibration certificate traceable to NIST (long form)

• Complies with ASTM D2240, ISO 868/7267/7619 and DIN 53505

Features

1、Simple

• Enhanced one-handed menu operation, including a Chinese interface

• User-defined test time, on-screen countdown display

• The reset function quickly restores the Hardness Tester to its factory state

2、durable

• Acid-proof, oil-proof, waterproof, solvent-proof, dust-proof

• Anti-collision rubber protective cover with waist clip

3、precise

• Each instrument comes with a calibration certificate traceable to NIST standards

• Automatic filter mode to filter out readings below 20% and above 90% according to international standards

• High-resolution mode, the screen display resolution is increased to 0.1

• Measurement blocks are provided randomly

• Compliant with ISO and ASTM standards

4. General

• It can be shared with DeFelsko's ultrasonic Thickness Gauges, coating Thickness Gauges, dew point meters, salt meters, surface roughness meters, and Barcol Hardness Testers

• High-contrast reversible color display with backlight

• Inverted display for easy reading

• Alkaline batteries are used, with the option of a rechargeable battery

5. Effective

• Continuous displays include mean, standard deviation, maximum/minimum, and number of measurements

• Upper and lower limit alarms

• Screenshot function, which can save the screen display as a picture format

• A USB cable can be easily connected to a computer and power the host computer

• The data of the console can be downloaded and browsed from a computer

• This is a program that allows you to upgrade your host computer from your computer

Premium Hosting Features

The Defelsko PosiTector SHDD3 Digital Shore Hardness Tester is an advanced model with the following features:

• All of the above features

• It can store 1,000 sets of data and 100,000 pieces of data

• Real-time plotting of measurement data

• WiFi syncs wirelessly with PosiSoft.net and downloads the software

• Bluetooth 4.0 transmits data to the PosiTector APP or optional portable printer. The BLE API can be integrated into third-party software

• Data from other probes stored by the main unit, such as thickness, salt, roughness, etc., are in different groups

Probe detail

Comparison of SHD Shore Hardness Tester models

Packing list：Host, probe, standard test block, rubber protective cover with waist clip, 3 AA batteries, USB data cable, nylon portable soft bag, Chinese and English instructions, factory certificate

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
