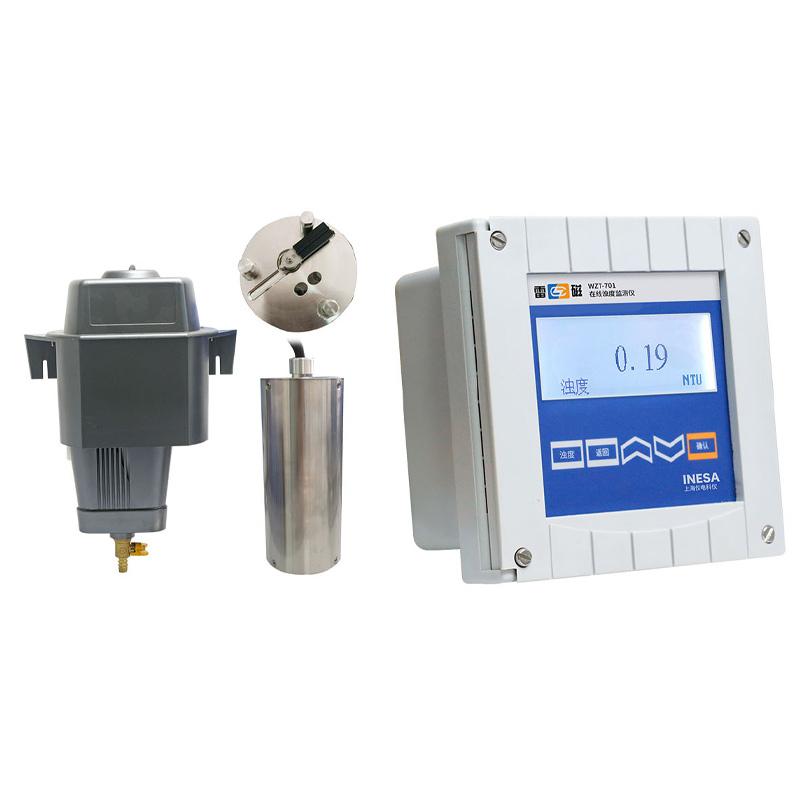

LEICI WZT-701 Online turbidity monitor

LEICI WZT-701 online turbidity monitor can display turbidity and temperature values at the same time, the measurement range is 0.00~500.0NTU, WZT-701 online turbidity monitor is used to measure the turbidity value of tap water, drinking water, surface water, industrial process water.

$2681.00/set

PromotionLoading...

Coupon

Model：

WZT-701

LeiCi

Contact

Details SPEC Con VIDEO

LeiCi WZT-701 Online turbidity monitorSPEC

LeiCi WZT-701 Online turbidity monitorDetails

LeiCi WZT-701 Online turbidity monitorPacking list

SKU: NB032497

Measurement parameter: turbidity

Measurement principle: Photometric 90 ° scattering method

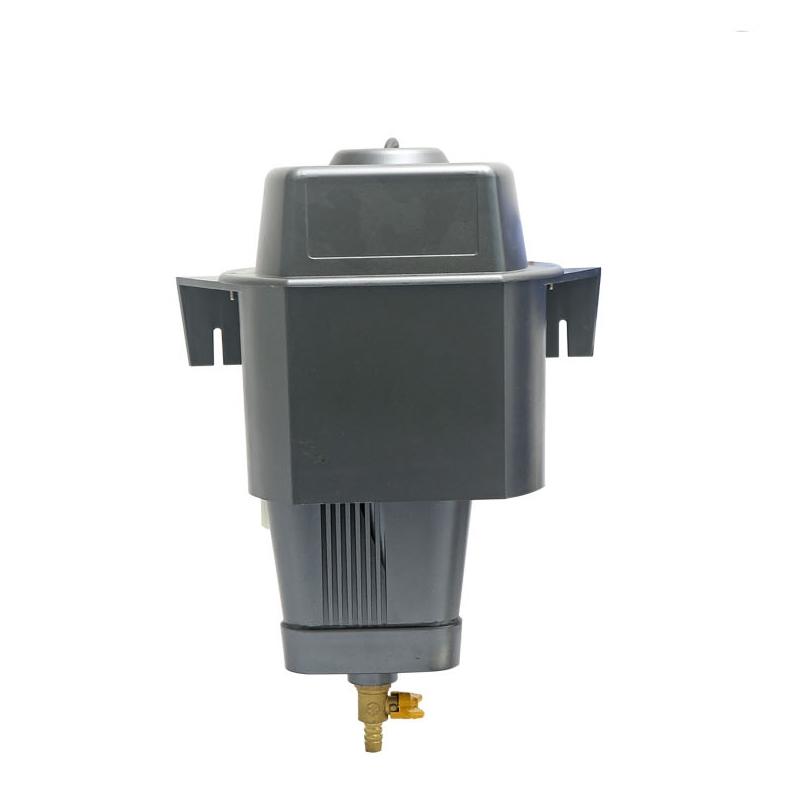

Sensors: TSC-10S turbidity Sensors (Imported)

Measurement range: （0.00～500.0）NTU

resolution: 0.01NTU，0.1NTU

Instrument intrinsic error: ±10%

Repeatability: ≤2%

Zero drift: +/- 0.5% FS (within 30min) +/- 1% FS (within 24h)

Range drift: +/- 5% FS (within 24h)

Installation method: Instrument: Wall Mount Sensors: Circulation

Output signal: (4~ 20) mA DC, maximum load 750Ω

Output signal: RS-232

Alarm, control relay touchpoint Capacity: 2.5A, 250V AC (non-inductive)

Flow rate of water sample: （100～120）mL/min

Water sample pressure: （7～140）kPa

Sensors Cable length: 9m

water inlet and outlet interface: 3/8 "quick plug

Protection level: IP65

Operating Environment: Environmental temperature: (5~ 40) ℃, Relative Humidity: not more than 90%

Power Supply: AC（220±22）V，（50±1）Hz

opening size: 140×140

Size (mm), Weight (kg): 166×166×110，2

WZT-701

Online turbidity monitor

Product Description

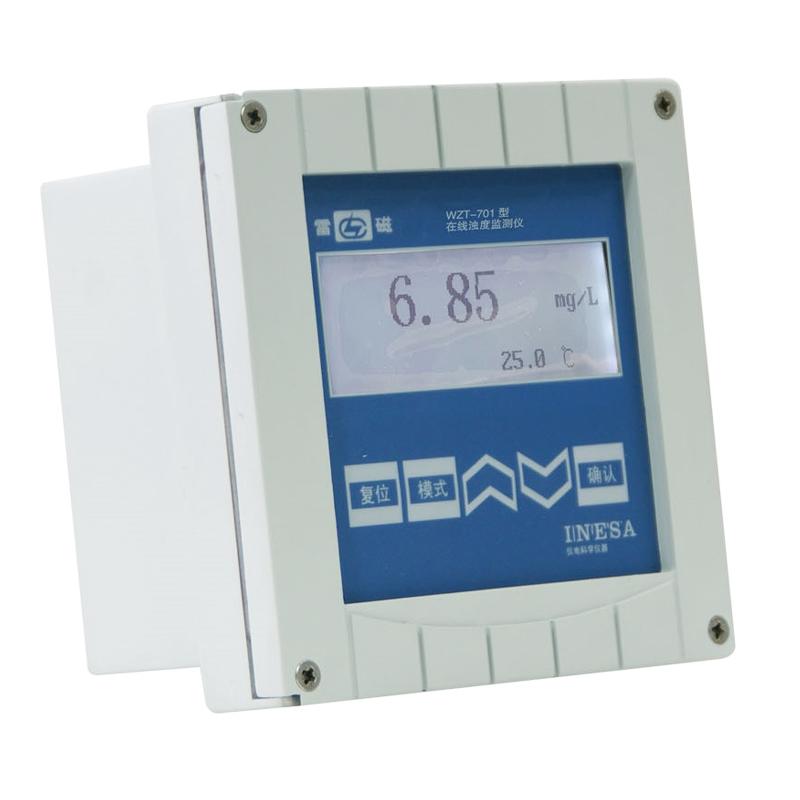

Using large-screen dot matrix LCD, it can display turbidity and temperature values ââat the same time;
Supports single-point calibration or two-point calibration;
Supports automatic upper and lower limit alarm functions and power-off protection functions;
With (4~20) mA DC isolation signal output, the output upper limit and output lower limit can be set arbitrarily;
With RS-232 digital interface.
