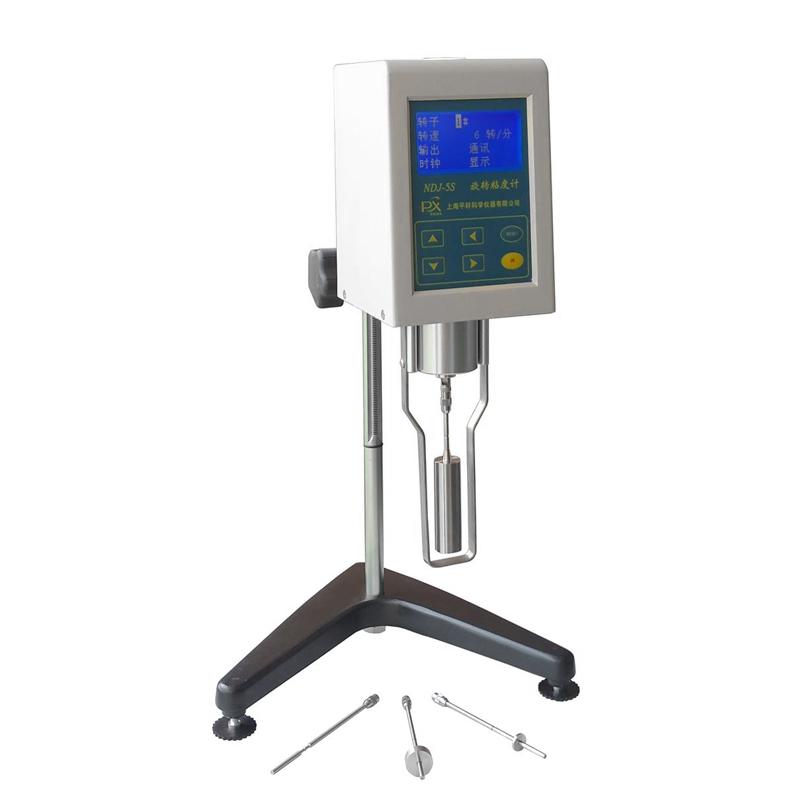

Pingxuan NDJ-5S Digital Rotational Viscometer 100000mPa.s

NDJ-5S

Rotational viscometer

Introduction

The instrument adopts microcomputer technology, which can easily set the range (rotor number and speed), digitally process the data detected by the sensor, and clearly display the rotor number, speed, and measured value set during measurement on the display screen. The viscosity value of the liquid and its full scale percentage value, etc.

NDJ-5S is equipped with 4 rotors (No. 1, 2, 3, 4) and 4 speeds (6, 12, 30, 60 r/min). The 16 combinations formed from this can measure the Viscosities of various liquids.

Viscometer NDJ can be widely used to measure the viscosity of various fluids such as oil, paint, medicine, food, paint, detergent, etc.

Principle

The instrument is driven by an imported Japanese synchronous motor through variable speed to rotate the rotor at a constant speed. When the rotor rotates in the liquid, the liquid will generate a viscous moment acting on the rotor, and the viscous moment will be larger; conversely, the smaller the viscosity of the liquid, the smaller the viscous moment. The viscous moment acting on the rotor is determined by The sensor detects it, and after computer processing, the viscosity of the measured liquid is obtained.

Packing list：Complete-built unit X1, manual X1, certificate X1, warranty card X1, rotor X2 set, protective frame X1, bottom pad X1, lifting column X1, wrench X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
