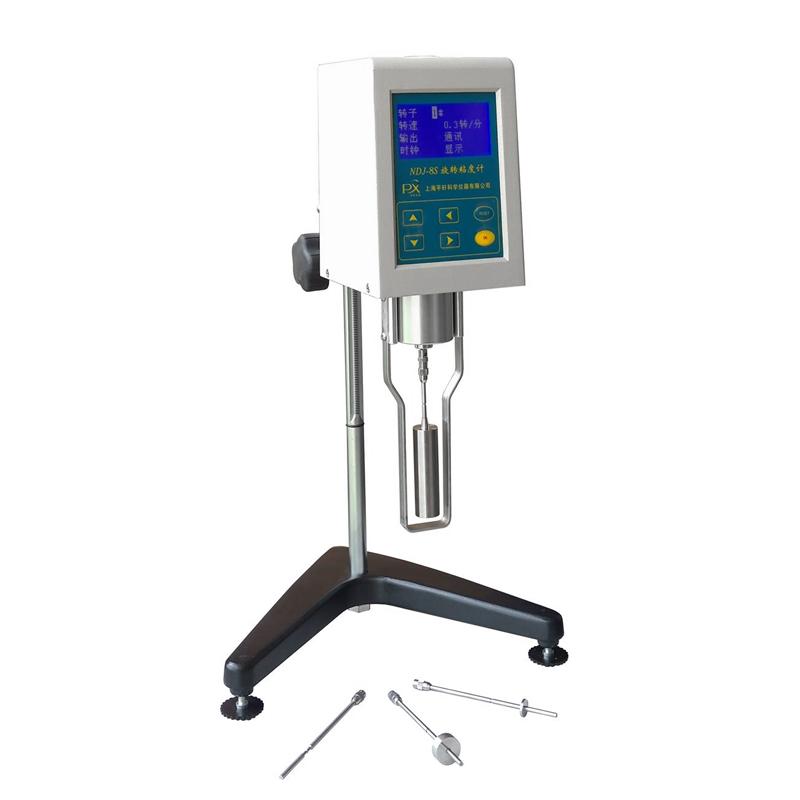

Pingxuan NDJ-8S Digital Rotational Viscometer 2000000mPa.s

NDJ-8S

Rotational viscometer

Introduction

The instrument adopts professional mechanical design technology, manufacturing process and microcomputer control technology, and the data is collected correctly; the display adopts a blue backlight, high-brightness LCD display screen, and the data display is clear. This instrument has the characteristics of high measurement sensitivity, reliable test results, convenient use and operation, and beautiful appearance. It is an instrument used to measure the absolute viscosity of Newtonian liquids and the apparent viscosity of non-Newtonian liquids.

NDJ-8S is equipped with 4 rotors (No. 1, 2, 3, 4) and 8 gear speeds (0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm), and there are 32 combinations , can measure the viscosity of various liquids within the determination range.

Principle

The instrument is driven by an imported Japanese synchronous motor through variable speed to rotate the rotor at a constant speed. When the rotor rotates in the liquid, the liquid will generate a viscous moment acting on the rotor, and the viscous moment will be larger; conversely, the smaller the viscosity of the liquid, the smaller the viscous moment. The viscous moment acting on the rotor is determined by The sensor detects it, and after computer processing, the viscosity of the measured liquid is obtained.

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
