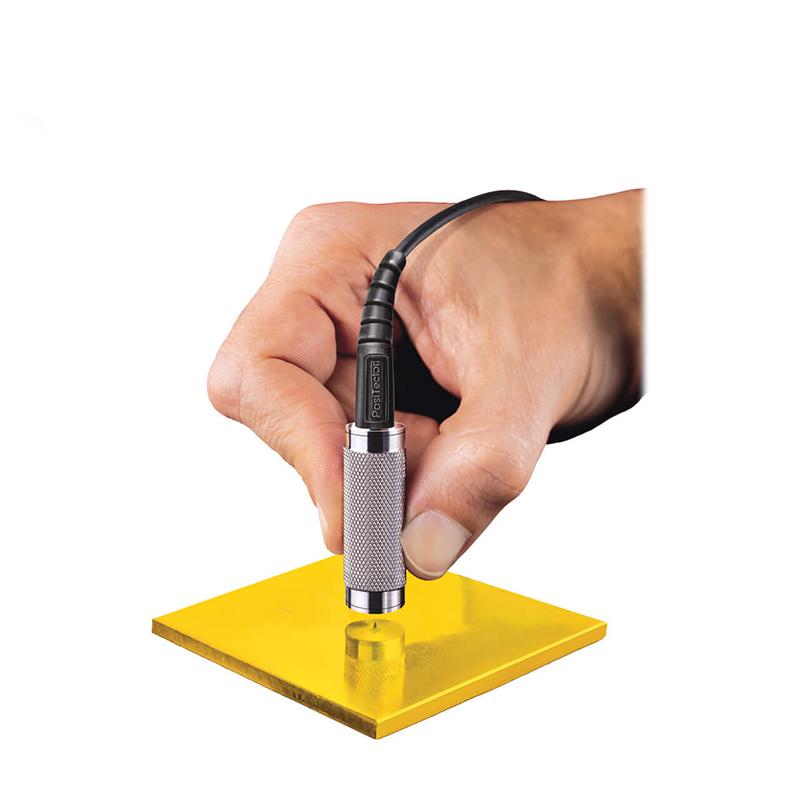

Defelsko PRBSHDA Shore Durometer Type A

Defelsko Shore Durometer Type A Probe PRBSHDA, test hardness range 0~100HA, accuracy +/- 1HA, PRBSHDA probe is suitable for hardness testing of soft plastics, soft rubber, neoprene, etc.

$747.00/piece

PromotionLoading...

Coupon

Model：

PRBSHDA

Certificate

Defelsko

Contact

Details SPEC Con CAT

Defelsko PRBSHDA Shore Shore Durometer ProbeSPEC

Defelsko PRBSHDA Shore Shore Durometer ProbeDetails

Defelsko PRBSHDA Shore Shore Durometer ProbePacking list

SKU: NB032549

Measurement range: 0~100HA

Resolution: 0.1HA

Measurement error: ±1HA

Application: Soft plastic, soft rubber, neoprene, silicone rubber, etc

meet the standard: ASTM D2240 Deputy ISO 868 / 7267 / 7619和DIN 53505

Probe height: 54.4mm

Probe diameter: Φ18.3mm

PRBSHDA

Shore Shore Durometer Probe

Introduction

PRBSHDA Shore Hardness Tester A-type probe has a measurement range of 0~100HA, a measurement accuracy of ±1HA and a resolution of 0.1HA, which is suitable for soft plastics, soft rubber, neoprene, silicone rubber, etc.

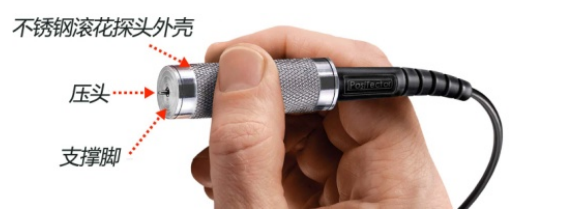

Detail Figure 1 of the Defelsko PRBSHDA Shore Hardness Tester Probe

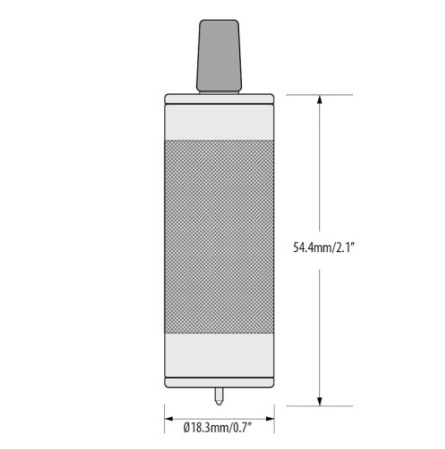

Probe Dimension Drawing

Detail Figure 2 of the Defelsko PRBSHDA Shore Hardness Tester Probe

Comparison of SHD Shore Hardness Tester models

Model	SHDA1	SHDA3	SHDD1	SHDD3
probe	Shore A		Shaw D
host	Standard	Advanced	Standard	Advanced
Measuring range	0~100HA		0~100HD
precision	±1HA		±1HD
resolution	0.1HA		0.1HD
Typical Applications	Soft plastics, soft rubber, neoprene, silicone rubber, etc		Hard rubber, epoxy, hard plastic, PVC, acrylic, etc
