HP-HDY18 Paper thickness Tester 0mm~ 18mm

Paper thickness Tester HP-HDY18 is a standard pointer Paper thickness meter. Measurement range of HP-HDY18 is 0mm~ 18mm, contact pressure is 20 +/- 0.5kPa.
Model：
Certificate
Contact
Details SPEC
Similar products

HengPin HP-HDY18 Paper thickness TesterSPEC

HengPin HP-HDY18 Paper thickness TesterDetails

HengPin HP-HDY18 Paper thickness TesterPacking list

SKU
NB032758
Measurement range
0~18mm
Resolution
0.01mm
Contact Pressure
20±0.5kPa
Measurement plane parallelism
<0.035mm
Contact area
1000±20mm²
Dimensions
170*130*330mm
Weight
6.5kg
HP-HDY18
Paper thickness Tester

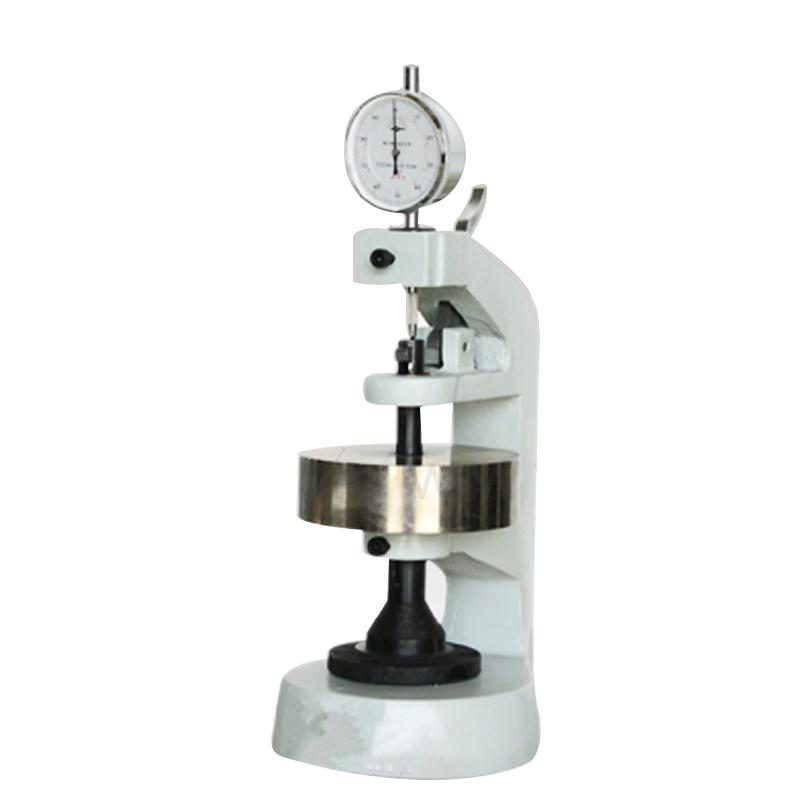

HP-HDY18 Paper thickness Tester 0mm~ 18mm Picture

Introduction

HP-HDY18 Paper Thickness Tester (also known as Paper Thickness Meter, Paper Thickness Gauge, Thickness Gauge, Thickness Gauge, Thickness Gauge) is based on the principle of contact measurement method, widely used to measure the thickness of paper, cardboard and corrugated cardboard, and its technical parameters comply with relevant national standards. Due to the different display methods, it is divided into: Dial-Type, digital display type.

Features

1. Manual type, small structure, light to carry, strong and durable.

2. There are two kinds of measurement heads: Dial-Type and digital display type.

3. The measurement range is large, and the test is widely used.

Meets standards

1. GB/T 451.3 Thickness determination method for paper and cardboard

2. GB/T 6547 Method for Determining the Thickness of Corrugated Cardboard

FAQ
QPaper thickness tester meets the specifications of QB/T2693?
A Model HP-HDY18 Paper thickness tester Compliant
