HP-HDY03 Paper thickness Tester 0mm~ 3mm

HENGPIN HP-HDY03 Paper thickness Tester is a digital display Paper thickness meter, the thickness range is 0~3mm, the measurement area is 200 +/- 5mm2, HP-HDY03 conforms to GB/T451.3 and GB/T6547 standards.
Model：
Certificate
Contact
Details SPEC
Similar products

HengPin HP-HDY03 Paper thickness TesterSPEC

HengPin HP-HDY03 Paper thickness TesterDetails

HengPin HP-HDY03 Paper thickness TesterPacking list

SKU
NB032760
Measurement range
0~3mm
Resolution
0.01mm
Contact Pressure
100±10kPa
Measurement plane parallelism
<0.005mm
Contact area
200±5mm²
Dimensions
175*125*260mm
Weight
5.5kg
meet the standard
GB/T451.3和GB/T6547
HP-HDY03
Paper thickness Tester

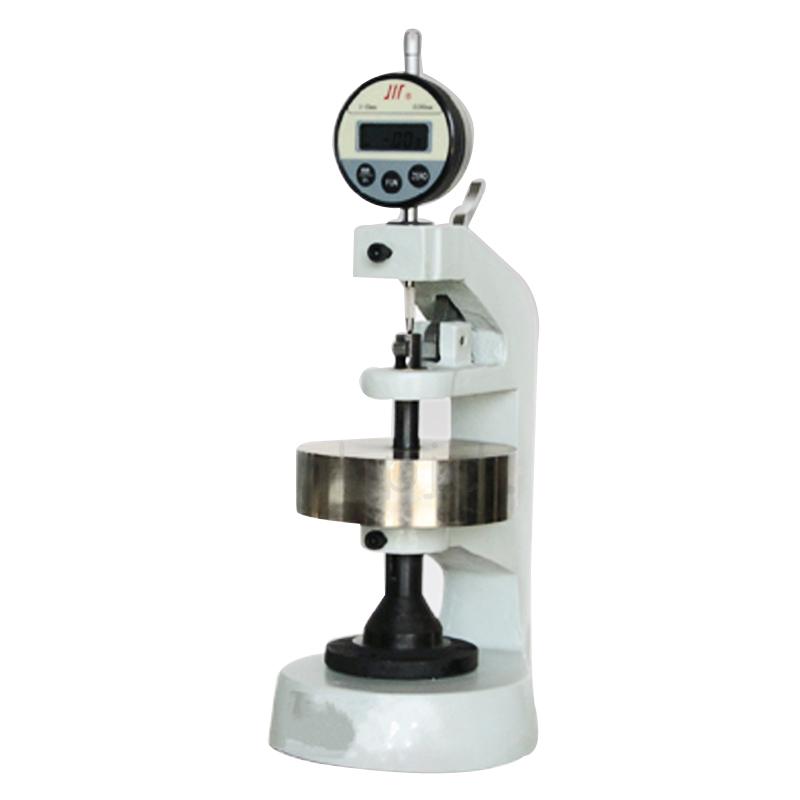

HP-HDY03 Paper thickness Tester 0mm~ 3mm Picture

Introduction

HP-HDY03 paper thickness Tester (also known as paper thickness meter, paper Thickness Gauge, Thickness Gauge, Thickness Gauge, Thickness Gauge) is based on the principle of contact measurement method, widely used to measure the thickness of paper, cardboard and corrugated cardboard, and its technical parameters comply with the relevant national standards. Due to the different display methods, it is divided into: Dial-Type, digital display type.

Features

1. Manual type, small structure, light to carry, strong and durable.

2. There are two kinds of measurement heads: Dial-Type and digital display type.

3. The measurement range is large, and the test is widely used.

Meets standards

1. GB/T 451.3 Thickness determination method for paper and cardboard

2. GB/T 6547 Method for Determining the Thickness of Corrugated Cardboard

FAQ
QCan all Paper thickness meters be used for inspection in the JJG (Light Industry) 50.2 standard?
A Not necessarily, but this HP-HDY03 Paper thickness tester can be considered.
