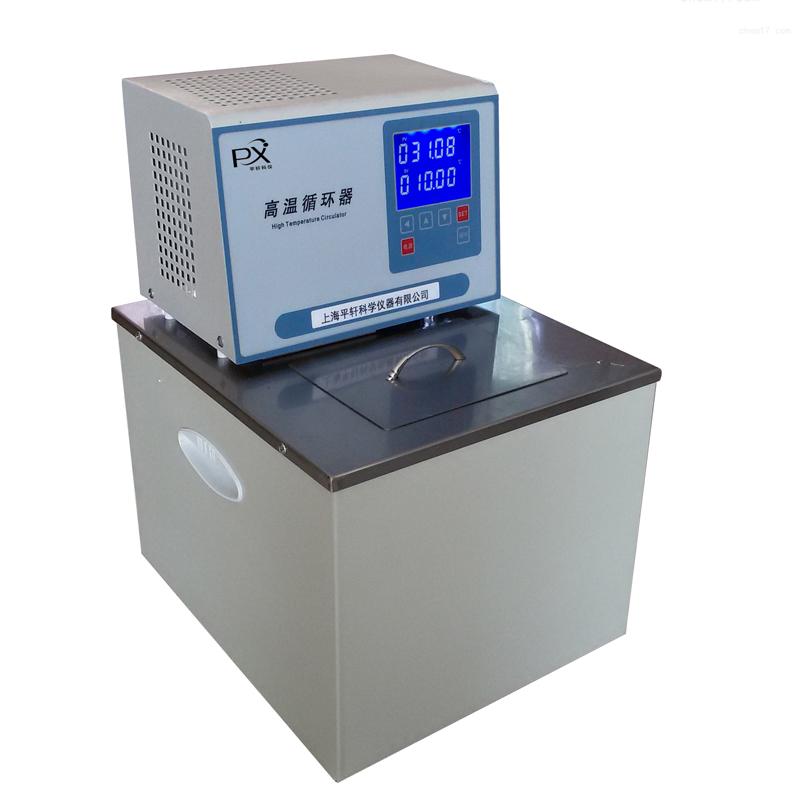

PINGXUAN GX-2030 high temperature thermostatic circulator
GX-2030
PingXuan GX-2030 High temperature thermostatic circulatorSPEC
PingXuan GX-2030 High temperature thermostatic circulatorDetails
PingXuan GX-2030 High temperature thermostatic circulatorPacking list
- SKU
- NB032766
- Temperature range
- RT+~300℃
- Temperature Fluctuation
- ±0.2℃
- Tank Size
- 400*330*230mm
- Tank Depth
- 230mm
- Flow rate of pump
- 15L/min
- Tank Volume
- 30L
Introduction
A high-temperature heating source, suitable for jacketed reactors, chemical pilot reactions, high-temperature distillation, semiconductor industry, etc.
Features
Built-in generation temperature control program to ensure stable operation of the equipment.
Microcomputer intelligent control system, rapid heating, stable temperature, easy operation.
Water and oil: high temperature up to 300°C.
The LED dual windows display the temperature measurement value and temperature setting value respectively, and the touch button is easy to operate.
The flow rate of the external circulation pump is large, up to 15L/min.
Optional
It can be equipped with a cold water circulation device to bring in tap water to achieve rapid cooling inside the system, which is suitable for temperature control of exothermic reaction at high temperature.
RS232 or RS485 communication interface can be selected to realize data transmission for long-distance control.
It can be equipped with an optional programmed temperature control system, which features:
Large LCD display, software program control, editable time/temperature curve.
Multi-segment temperature and time programs can be programmed to control the heating, constant temperature and cooling process, and the heating rate and cooling speed can be set and automatically controlled according to user requirements.
Write and store 30 temperatures/time periods, and each program can be set to 0~9999 minutes running time.
Multiple parameter setting methods: convenient and fast input keys, shift keys, additional keys, and subtract keys, set temperature/time period and other advanced control parameters, or directly adjust the stored temperature/time setting program.
