HP-MXD-01 coefficient of friction Tester

HENGPIN coefficient of friction Tester HP-MXD-01 is suitable for measurement Plastic film and sheet, rubber, etc., the size of the table 200 × 470mm, HP-MXD-01 test stroke 0-70mm, standard micro printer.
Model：
Certificate
Contact
Details SPEC

HengPin HP-MXD-01 Coefficient of frictIon MeterSPEC

HengPin HP-MXD-01 Coefficient of frictIon MeterDetails

HengPin HP-MXD-01 Coefficient of frictIon MeterPacking list

SKU
NB032768
Force range
0~5N;10N;20N;30N;50N
Slider size
63*63mm
Slider Mass
200 +/- 2g (optional 500g)
Work surface size
200*470mm
Total Error of Force Measurement System
Less than +/- 2%
Slider traverse speed
100±10mm/min
Slider stroke
0~70mm
Power supply Voltage
220V 50Hz
Dimensions
480*320*300mm
Weight
35kg
HP-MXD-01
Coefficient of frictIon Meter

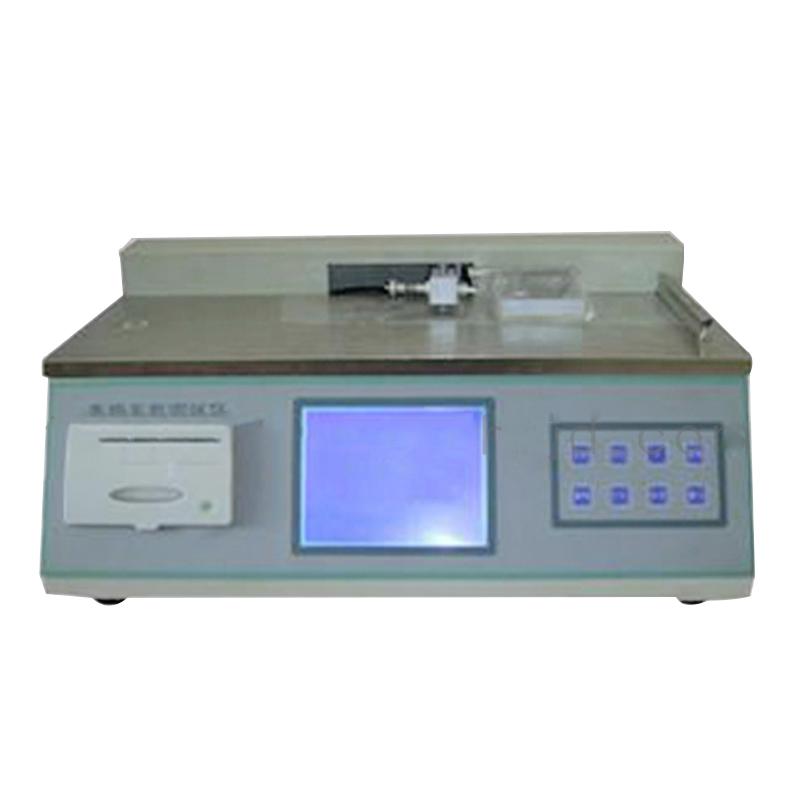

HP-MXD-01 coefficient of friction Tester Picture

Applications

MXD-01 coefficient of friction Tester is suitable for measuring the static friction coefficient and dynamic friction coefficient when plastic film and sheet, rubber, paper, cardboard, woven bag, fabric style, metal material composite belt for communication cable and optical cable, conveyor belt, wood, coating, brake pad, wiper, shoe material, tire and other materials slide. By measuring the slip properties of the material, the quality and process indicators of the material production can be controlled and adjusted to meet the requirements of product use. In addition, it can also be used to measure the slip properties of cosmetics, eye drops and other daily chemical products.

Features

1. MXD-01 friction coefficient Tester adopts microcomputer control, liquid crystal display, PVC operation panel.

2. The dynamic and static friction coefficients of the sample can be automatically determined at the same time.

3. Adopt high-precision ball screw transmission, stable performance, accurate testing and easy operation.

4. Equipped with a micro printer, it can print one set (or more groups) of results and averages.
