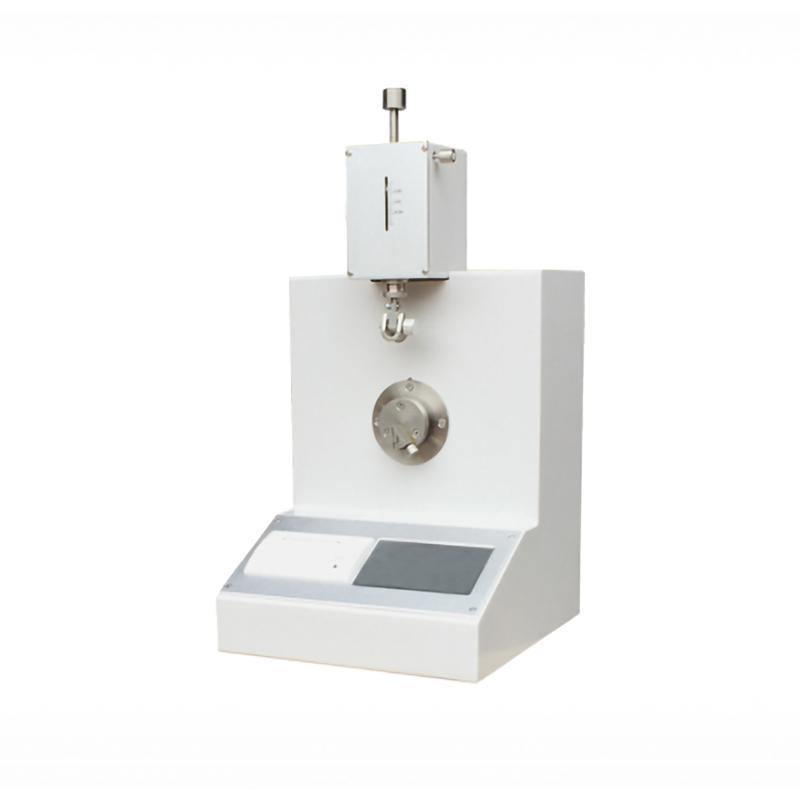

HUAHAN HH-NZ135A MIT Folding Tester paper Cardboard folding resistance Tester
HH-NZ135A
-
JINGWEN JW107C MIT Paper Folding Endurance Tester$ 1446.00SE -
CHINA NBC-5637 MIT Paper Folding Endurance Tester$ 1330.00SE -
Taichang TC-NZ135A Touch Screen MIT Folding Tester 0.25mm$ 1485.00SE -
CHINA ZY-NZ1 folding resistance instrument$ 1594.00SE -
CHINA ZY-NZ-1 Folding Tester Cardboard Folding Tester$ 1563.00SE
huahan HH-NZ135A MIT Folding TesterSPEC
huahan HH-NZ135A MIT Folding TesterDetails
huahan HH-NZ135A MIT Folding TesterPacking list
- SKU
- NB032772
- Measurement range
- 1~ 99999 times
- folding angle
- 135±2°
- folding speed
- 175±10CPM
- spring tension
- 4.9~14.7N
- Folding mouth gap distance
- 0.25mm/0.5mm/0.75mm/1.00mm
- Power supply Voltage
- AC220V 3A 50Hz
- Dimension
- 305*380*420mm
- Weight
- About 22kg
HH-NZ135A MIT Fold Resistance Tester (also known as Fold Resistance Tester, Paper Fold Resistance Tester, Cardboard Fold Resistance Tester) is mainly used to measure the folding fatigue strength of paper, cardboard and other sheet materials with a thickness of less than 1.25mm, and the technical indicators and performance parameters meet the relevant national standards.
Features
1. The instrument adopts microcomputer automatic measurement and control, open structure, simple and convenient operation, stable and reliable performance, and high precision.
2. Fully automatic test, intelligent judgment function, tension can be adjusted, automatic homing, and the number of times and logarithm can be automatically converted.
3. The instrument is equipped with a high-speed micro printer, which has the functions of statistics, printing test results, and saving data.
Enforce the standard
GB/T 2679.5, GB/T 457, QB/T 1049, ISO 5626 and other related standards.
