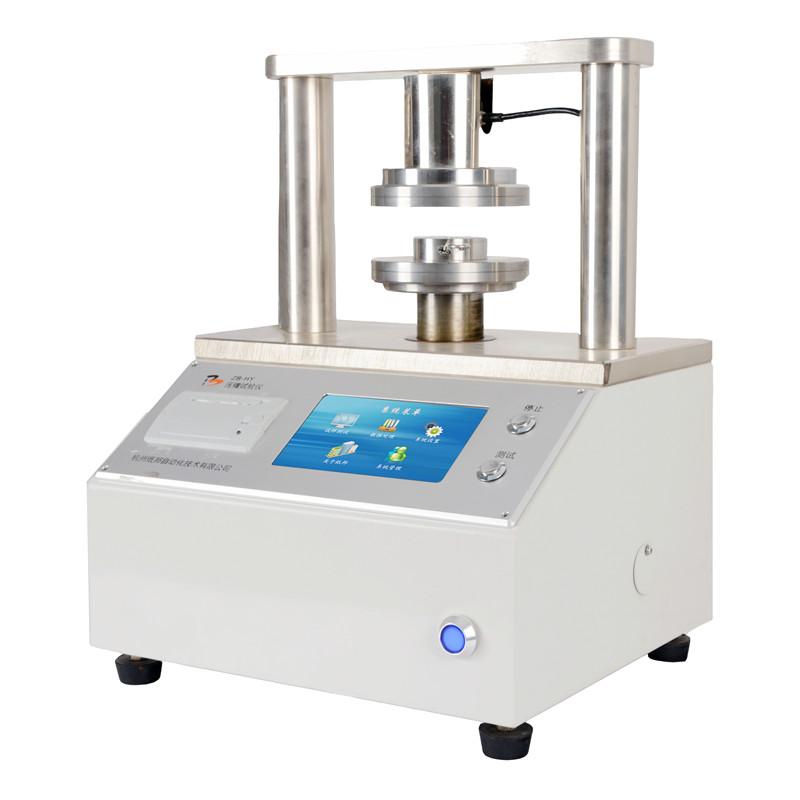

ZHIBANG ZB-HY3000 Ring Pressure Detector

ZB-HY3000

Ring pressure Detector

1. Overview

ZB-HY3000 compressive strength Tester is a special instrument for determining the cyclic strength of paper (RCT), edge compression strength of corrugated cardboard (ECT), flat compressive strength of corrugated cardboard (FCT), adhesion strength of corrugated cardboard (PAT) and flat compressive strength of corrugated base paper (CMT). It is a high-precision compressive strength testing instrument with very high cost performance in CHINA.

The instrument is a mechatronics structure, which is carefully and reasonably designed by using modern mechanical design concept and microcomputer processing technology. The instrument adopts the upper pressure plate fixed type, and the measurement accuracy is high. It has a powerful data processing function, which can directly obtain the statistical results of various data, and can automatically reset, easy to operate, easy to adjust, and stable performance.

The instrument is equipped with the corresponding auxiliary equipment to perform the following tests (optional):

——Equipped with a ring pressure test center plate and a special ring pressure sampler to carry out cardboard ring compressive strength test (RCT)

- Equipped with edge pressure (bonding) specimen sampler and auxiliary guide block for corrugated cardboard edge pressure strength test (ECT)

- Equipped with a flat pressure specimen sampler for corrugated cardboard flat compressive strength test (FCT)

- Equipped with a peel strength test rack for corrugated cardboard adhesion (peel) strength test (PAT)

——Equipped with groove meter and auxiliary equipment for corrugated base paper flat compression strength (CMT)

Second, the implementation of standards

ISO 12192 Compressive Strength ----- Ring Pressure Method for Paper and Cardboard ----

ISO 3070 "Determination of the Compressive Strength of Corrugated Cardboard ----- Edges"

ISO 7263 "Determination of the Flat Compressive Strength of Corrugated Paper ---- Laboratory after Fluting"

ISO 3035 "Determination of flat compressive strength of single-sided and single-corrugated cardboard"

GB/T 2679.8 "Determination of Annular Compressive Strength of Paper and Cardboard"

GB/T 6546 "Determination of edge compressive strength of corrugated cardboard"

GB/T 6548 "Determination of adhesion strength of corrugated cardboard"

GB/T 2679.6 "Determination of flat compressive strength of corrugated base paper"

GB/T22874 "Determination of flat compressive strength of single-sided and single-corrugated cardboard"

Third, the main performance parameters

1. The instrument function host, the user can order the corresponding accessories separately according to the actual situation, and realize a variety of strength tests of base paper and corrugated cardboard;

2. It has the function of statistical processing of test data, which can be printed.

3. Mechatronics design, compact structure, beautiful appearance, convenient maintenance

4. Large color touch screen, easy to operate

5. The instrument is equipped with a standard RS232 interface, which can communicate with the microcomputer software

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
