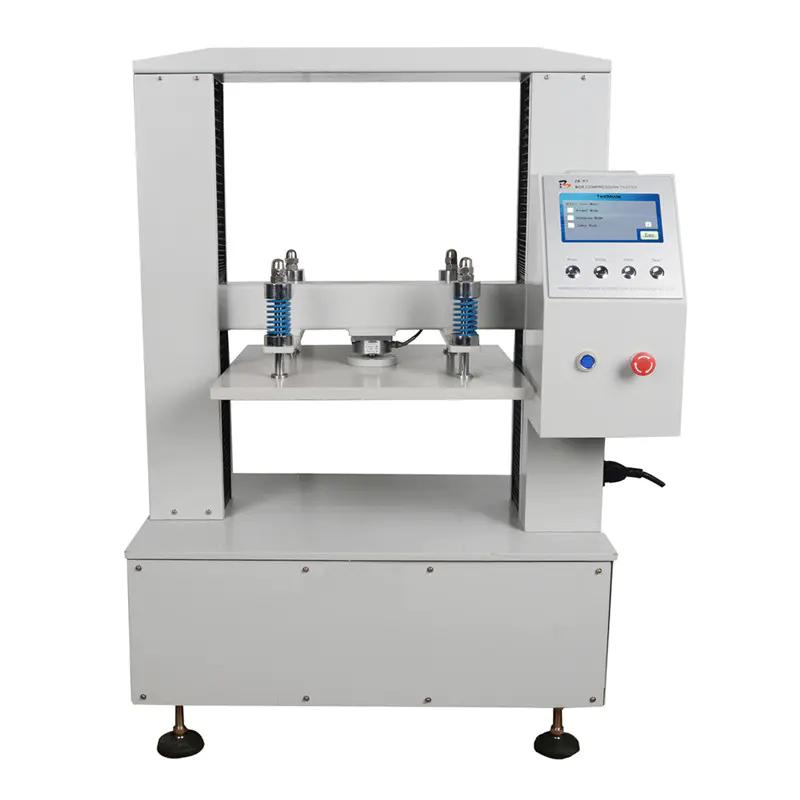

ZHIBANG ZB-KY10 Carton Compression Strength Meter 600 * 600mm

ZB-KY10

Carton compressive strength Tester

1. Overview

ZB-KY series carton compressive testing machine is a special large-scale test equipment for compressive strength test and stacking strength test of corrugated boxes and similar packaging containers.

The testing machine is a mechatronics structure, which is mainly composed of two parts: the force application system and the measurement and control system.

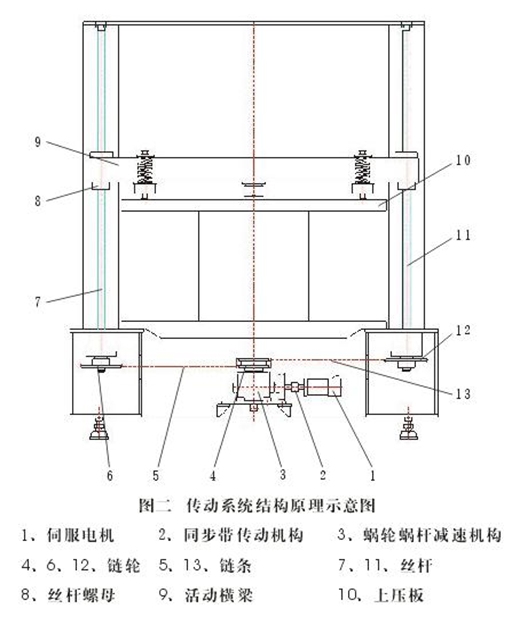

The force application system is composed of AC servo motor system, mechanical deceleration system, high-precision screw drive system and force pressing plate.

The measurement and control system adopts high-precision sensors and mainstream ARM chips, which has powerful data processing functions, automatic tracking of the test process, automatic recording of test results, real-time display of test data and curves, and can communicate with the computer.

The testing machine adopts color touch wide screen as the man-machine operation interface, menu-type interface, beautiful and generous, full touch operation, and quick response.

The product performance is stable and reliable, the measurement accuracy is high, the test function is powerful, and the operation is simple and fast.

Second, the implementation of standards

ISO2872 Packaging – Complete, full transport packages – Pressure test

ISO2874 Packaging – Complete, full transport packs – Stacking test with a pressure testing machine

GB4857.4 Basic test of transport packaging - pressure test method

Third, the main performance parameters

1. Strength test: The instrument can test the maximum pressure resistance of cartons and other boxes

2. Quantitative test: The instrument can preset data according to the requirements to detect whether the box meets the preset compression resistance or deformation requirements

3. Stacking test: According to the requirements of national standards, stacking tests under different conditions such as 12 hours and 24 hours can be carried out

4. Precision mechanical design: The instrument adopts precision lead screws to ensure the parallelism of the upper and lower pressure plates and the stability of the high-speed transmission of the instrument during the test process

5. Servo motor control: The instrument is controlled by servo motor, so that the instrument positioning, fast speed response, compression speed of 10mm/min, return speed up to 100mm/min, saving test time, improving test efficiency, at the same time, providing a reliable hardware guarantee for the accuracy of stacking test and cyclic pressure test

6. Sensor: The instrument adopts high-precision pressure sensor and unique sampling algorithm software, which greatly improves the measurement accuracy of the instrument

7. Specification testing: non-standard design and processing can be carried out according to the size required by the user

8. Man-machine integration design: The instrument adopts modern mechatronics design and large LCD display

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
