Dutch TQC cross-cut knife head, made of stainless steel SP1702/1703/1704/1705/1706

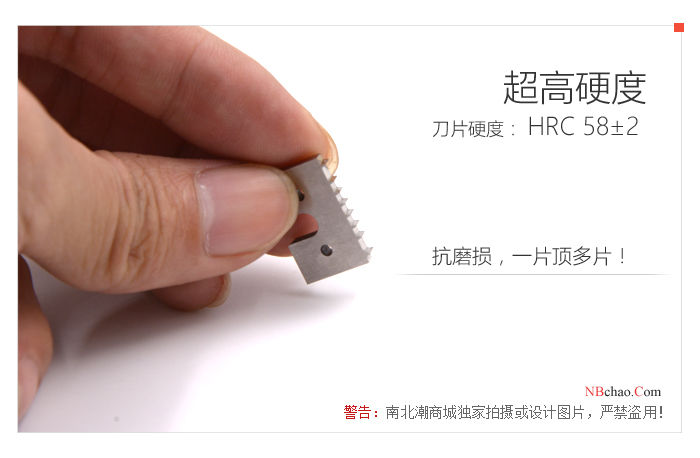

TQC cross-cut cutter head is made of stainless steel, Hardness reaches HRC58 +/- 2, high quality guarantees Cross Hatch Cutter accuracy, suitable for a variety of TQC Cross Hatch Cutter.
Model：
Certificate
Contact
Details SPEC

TQC sheen SP1702 Cross-cut knife headSPEC

TQC sheen SP1702 Cross-cut knife headDetails

TQC sheen SP1702 Cross-cut knife headPacking list

SKU
NB000328
Number of teeth
6 teeth
Tooth spacing
1mm
Instrument material
stainless steel
Application standard
ISO/DIN 2409
Applicable film thickness environment
< 60 µm (hard substrate)
SP1702
Cross-cut knife head
Dutch TQC cross-cut knife head, made of stainless steel SP1702/1703/1704/1705/1706 Picture

Dutch TQC scribing cutter heads

Introduction

TQC 100 grid knife head has SP1702,SP1703、SP1704、SP1705、SP1706 has five models, each model corresponds to a different test range, suitable for TQC different series of models of 100 grid knives, using stainless steel, longer service life.

Parameters

ModelstandardBladeMaterialrange
SP1702ISO/DIN 24096 teeth, spacing 1mmstainless steel<60μm (hard substrate)
SP1703ISO/DIN 24096 teeth, spacing 2mmstainless steel< 60 μm (soft substrate) > 61-120 μm
SP1704ISO/DIN 24096 teeth, spacing 3mmstainless steel121-250µm
SP1705ASTM 335911 teeth, 1mm spacingstainless steel0-50µm
SP1706ASTM 335911 teeth, spacing 1.5mmstainless steel50-125µm

Actual picture of the product

Take you to the Dutch TQC

TQC公司的历史发展

TQC自动化生产和严格的品质把控

TQC研发团队

FAQ
QCan this cross-cut knife head be applied to QJ990.14?
A OK
