ZHIBANG ZB-NPY1600 paper Burst Tester, pneumatic + paper

ZHIBANG ZB-NPY1600 paper Burst Tester Measurement range 50-1600kPa, indication Precision +/- 0.5% F.S, pressurization speed 95 +/- 5mm/min, sample clamping force ≥ 430kPa, ZB-NPY1600 paper Burst Tester automatic measurement, statistics, printing test results, and has data saving function.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

ZhiBang ZB-NPY1600 Pneumatic paper Burst TesterSPEC

ZhiBang ZB-NPY1600 Pneumatic paper Burst TesterDetails

ZhiBang ZB-NPY1600 Pneumatic paper Burst TesterPacking list

SKU
NB032801
Power supply Voltage
AC220V±10% 50HZ
Measurement range
50~1600kPa
Error of indication
±0.5%F.S
Oil delivery speed
95±5mm/min
Clamping Force
≥430Kpa
air source pressure
0.3~0.5MPa
Film resistance
Raise 9mm, 30 +/- 5kPa
System sealing
At the upper limit of measurement, 1 minute pressure drop < 10% Pmax
Upper clamp ring aperture
Φ(31.5±0.05)mm
Dimensions
480*420*600mm
Net Weight
65kg
Lower clamp ring aperture
Φ(31.5±0.05)mm
ZB-NPY1600
Pneumatic paper Burst Tester

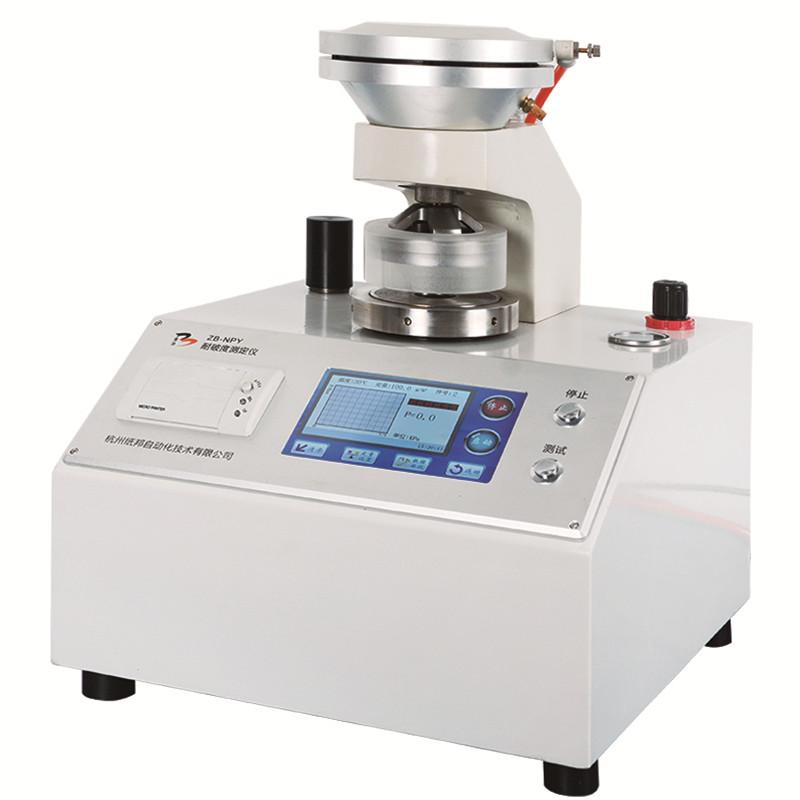

ZHIBANG ZB-NPY1600 paper Burst Tester, pneumatic + paper Picture

1. Overview

ZB-NPY1600/5600 Paper/Cardboard Burst Resistance Tester is a special instrument for measuring the burstage resistance of paper/cardboard. It is designed according to the international working principle of Miaolun.

Second, the implementation of standards

ISO 2758 "Determination of Bursting Resistance of Paper ------"

GB/T 454 "Determination of paper breakability"

Third, the main performance parameters

1. The clamping system adopts pneumatic type, which is convenient for operation

2. The operating system displays the bursting strength of the sample in real time.

3. Automatic measurement, statistics and printing of test results, and data saving function;

4. High-speed micro printer, high-speed printing, easy to use, low failure;

5. Modern design concept of mechatronics, compact structure, beautiful appearance, convenient maintenance;

6. Large screen, color touch screen. It's easy to use.

7. The instrument is equipped with a standard RS232 interface, which can be used for communication with microcomputer software

8. Air Compressor: configured by the user.

FAQ
QIs this burnout tester specially designed to measure paper? Can it measure Cardboard?
A Hello, this is a test paper, and the model of the test Cardboard is ZB-NPY5600.
QIs this the pneumatic paper bursting tester mentioned in JJG (Light Industry) 61?
A OK
