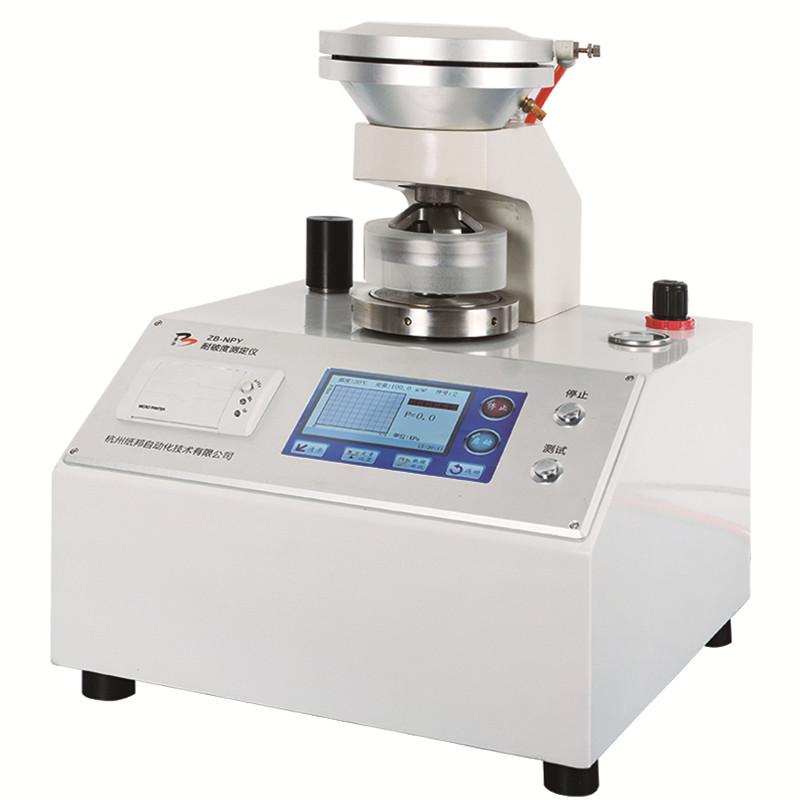

ZHIBANG ZB-NPY5600 Cardboard Burst Tester, Pneumatic + Cardboard

ZHIBANG ZB-NPY5600 Cardboard Burst Resistance Tester Measurement range 200-5600kPa, indication Precision +/- 0.5% F.S, pressurization speed 170 +/- 15mm/min, sample holding force ≥ 700kPa, ZB-NPY5600 Cardboard Burst Resistance Tester Automatic measurement, statistics, printing test results, and data saving function.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

ZhiBang ZB-NPY5600 Pneumatic Cardboard Burst TesterSPEC

ZhiBang ZB-NPY5600 Pneumatic Cardboard Burst TesterDetails

ZhiBang ZB-NPY5600 Pneumatic Cardboard Burst TesterPacking list

SKU
NB032802
Power supply Voltage
AC220V±10% 50HZ
Measurement range
0~5600kPa
Error of indication
±0.5%F.S
Oil delivery speed
170±15mL/min
Clamping Force
≥700Kpa
Working air pressure (pneumatic chuck)
0.45~0.6MPa
Film resistance
Raise 10mm, 170kPa~ 220kPa; Raise 18mm, 250kPa~ 350kPa
System sealing
At the upper limit of measurement, 1 minute pressure drop < 10% Pmax
Upper clamp ring aperture
Φ(31.5±0.05)mm
Dimensions
480*420*600mm
Net Weight
65kg
Lower clamp ring aperture
Φ(31.5±0.05)mm
ZB-NPY5600
Pneumatic Cardboard Burst Tester
ZHIBANG ZB-NPY5600 Cardboard Burst Tester, Pneumatic + Cardboard Picture

1. Overview

ZB-NPY5600 cardboard burst resistance Tester is a special instrument for measuring the bursting resistance of cardboard. It is designed according to the international working principle of Miaolun.

The instrument adopts high-precision sensors with high measurement accuracy. The clamping system adopts a pneumatic chuck for easy operation. With data processing function, it can directly obtain the statistical results of various data, and can automatically reset, easy to operate, easy to adjust, and stable performance.

Second, the implementation of standards

ISO 2759 "Cardboard – Determination of Burst Resistance"

GB/T 1539 "Cardboard – Determination of burst resistance"

Third, the main performance characteristics

1. The clamping system adopts pneumatic type, which is convenient to operate (pneumatic chuck)

2. The operating system displays the bursting strength of the sample in real time.

3. Automatically measure, count, and print test results, and have the function of data saving.

4. High-speed micro printer, high-speed printing, easy to use, low failure.

5. Modern design concept of mechatronics, compact structure, beautiful appearance, convenient maintenance.

6. Large screen, color touch screen. It's easy to use.

7. The instrument is equipped with a standard RS232 interface, which can be used for communication with microcomputer software

8. Air Compressor: provided by the user.


FAQ
QWhat is the pressurization speed of this Cardboard bursting tester?
A Hello, the pressurization speed is 170 ± 15mm/min.
QCan the ZHIBANG ZB-NPY5600 Pneumatic Cardboard Burst Tester meet the GB/T454 standard?
A Applicable, you can consult the customer service of the mall for details about the GB/T454 standard.
