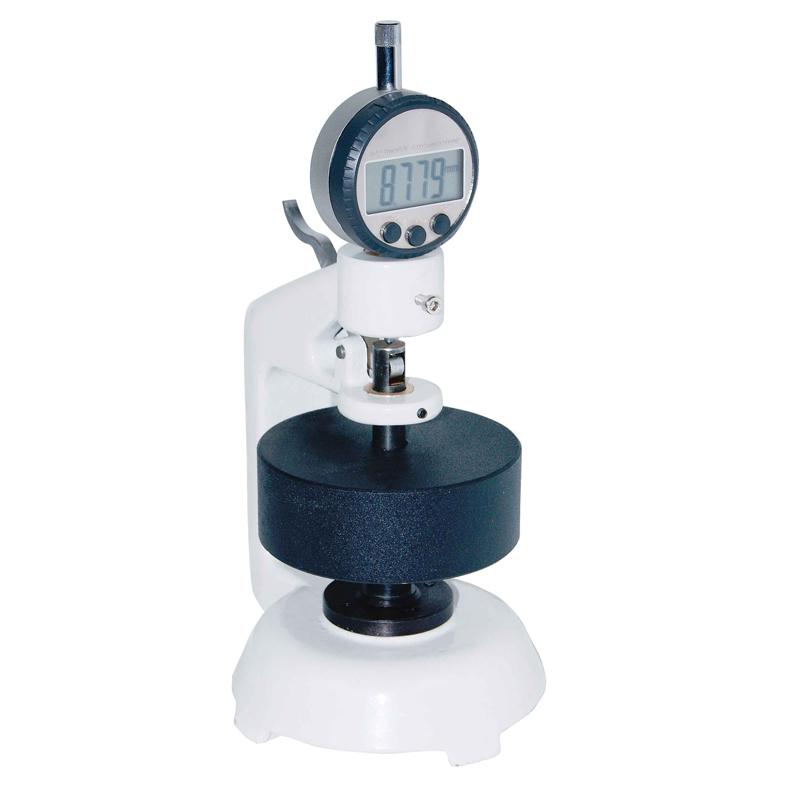

ZHIBANG ZBH-4 Paper and Cardboard Thickness Meter, Digital Display, Thousand, Measuring Thickness up to 4mm

ZHIBANG ZBH-4 Paper and Cardboard Thickness Meter is a special instrument for the measurement of Paper thickness, ZBH-4 Paper and Cardboard Thickness Meter Measurement range 0~4mm, Measurement accuracy 0.001mm, Contact pressure 100 +/- 10kPa, Contact diameter 16.0 +/- 0.5mm, Measurement plane parallelism error 0.005mm or 1%, error of indication +/- 0.0025mm or +/- 0.5%.
Certificate
Contact
Details SPEC CAT OI

ZhiBang ZBH-4 (thousandth) Paper and Cardboard Thickness MeterSPEC

ZhiBang ZBH-4 (thousandth) Paper and Cardboard Thickness MeterDetails

ZhiBang ZBH-4 (thousandth) Paper and Cardboard Thickness MeterPacking list

SKU
NB032807
Measurement range
0~4mm
Graduation
0.001mm
Contact Pressure
100±10kPa
contact diameter
16.0±0.5mm
Measurement plane parallelism error
0.005Mm or 1%
Error of indication
+/- 0.0025mm or +/- 0.5%
Error of indication
0.0025Mm or 0.5%
Dimensions
233ⅹ160ⅹ120mm
Net Weight
5.5kg

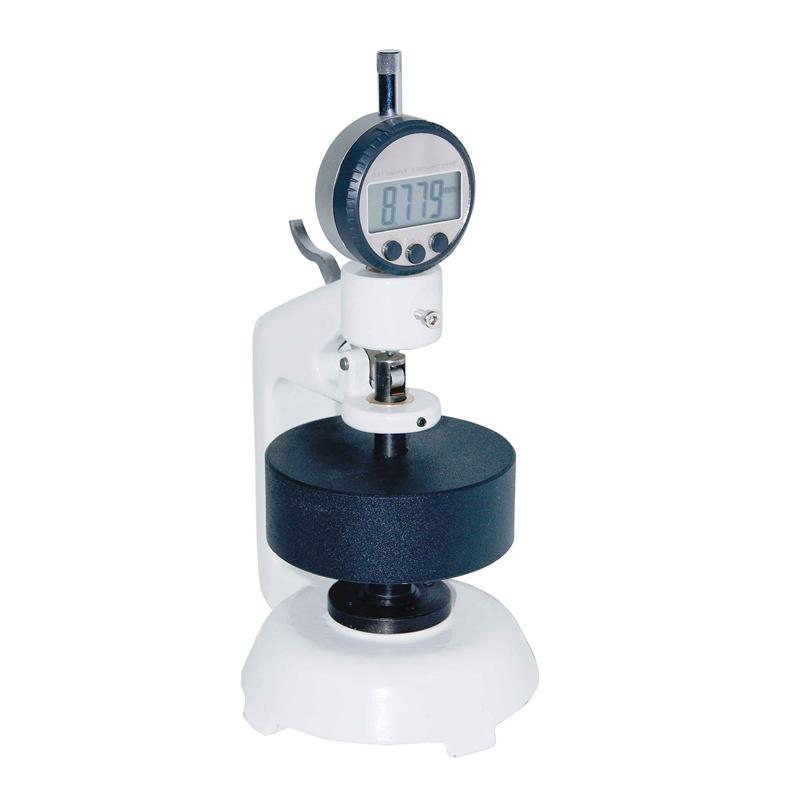

ZBH-4 (thousandth)
Paper and Cardboard Thickness Meter
ZHIBANG ZBH-4 Paper and Cardboard Thickness Meter, Digital Display, Thousand, Measuring Thickness up to 4mm Picture

1. Overview of paper Thickness Gauge products

A paper thickness meter is a special instrument used to measure the thickness of paper.

It is widely used for thickness determination of paper, cardboard and other sheet materials. The instrument is cardboard, which is an indispensable common instrument for enterprises and departments such as cardboard and carton production, scientific research and commodity inspection.

Second, the implementation standard of paper Thickness Gauge

ISO 534 "Method for Determining the Thickness and Layer Tightness or Compactness of Paper and Cardboard ---"

GB/T 451.3 "Determination of the thickness of paper and cardboard"



FAQ
QCan this Paper and Cardboard Thickness Meter be applied to QB/T2693?
A OK
