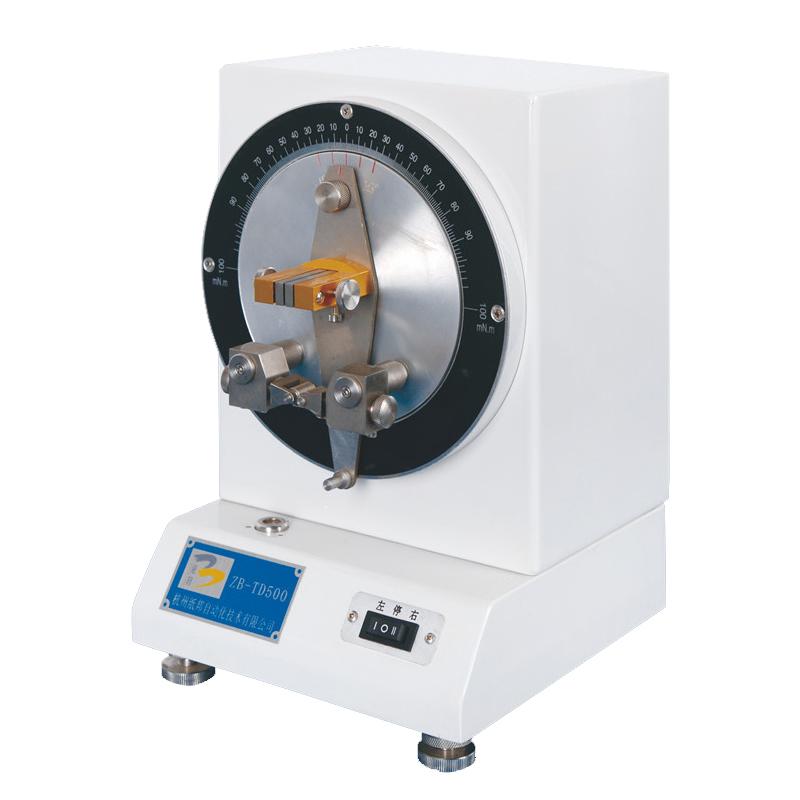

ZHIBANG ZB-TD500 Cardboard Stiffness meter

ZHIBANG ZB-TD500 Cardboard Stiffness meter is a special instrument for measuring the stiffness of paper and Cardboard, designed according to the working principle of the international general static bending method, ZB-TD500 Stiffness meter Measurement range (1-500) mN.m (divided into seven gears), error of indication +/- 2%, Test speed (200 ° +/- 20 °)/min, rated bending angle 15 ° +/- 0.3 ° and 7.5 ° +/- 0.3 °.
Model：
Certificate
Contact
Details SPEC CAT OI

ZhiBang ZB-TD500 Stiffness meterSPEC

ZhiBang ZB-TD500 Stiffness meterDetails

ZhiBang ZB-TD500 Stiffness meterPacking list

SKU
NB032820
Power supply Voltage
AC220V±10% 50HZ
Measurement range
1~500mN.m
Error of indication
±2%
Test speed
(200±20)°/min
bending angle
15º±0.3º，7.5º±0.3º
Specimen size
38*70mm
Dimensions
220*230*350mm
Net Weight
15kg
ZB-TD500
Stiffness meter

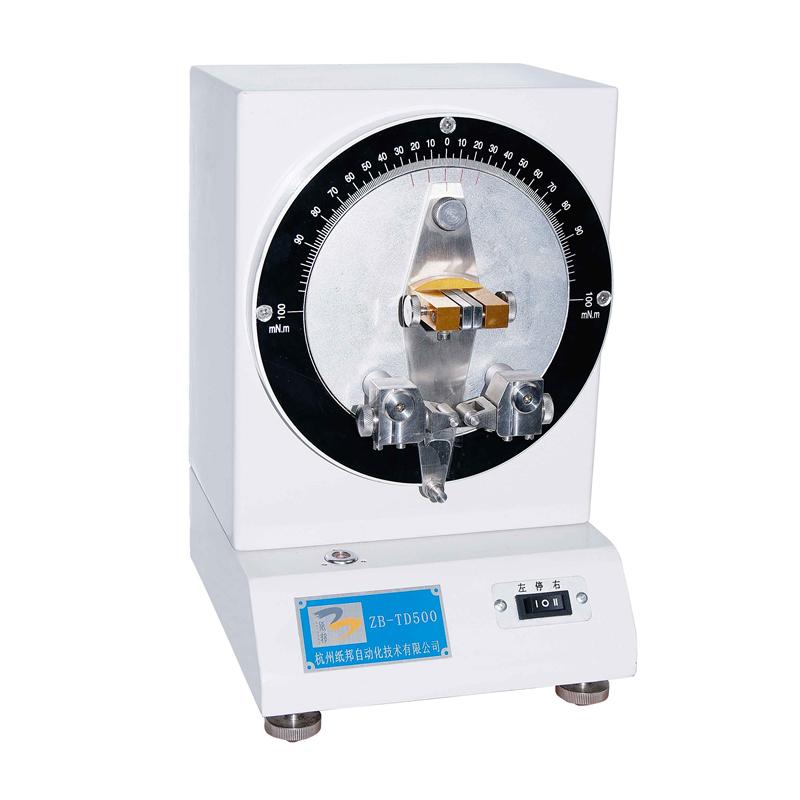

ZHIBANG ZB-TD500 Cardboard Stiffness meter Picture

OneStiffness TesterOverview

ZB-TD500 stiffness Tester is a special instrument used to determine the bending resistance (stiffness) of paper and cardboard. It is designed according to the working principle of the international general static bending method.

This instrument is designed according to the principle of static bending, that is, the free end of a vertically clamped specimen, when the specimen reaches a certain bending angle, the resistance is the bending stiffness, the unit is mN, or the product of the resistance and the test length, the unit is mN.m.

Second, the stiffness Tester implementation standard

ISO 2493 Paper and cardboard – Determination of flexural stiffness

GB/T 22364 "Paper and cardboard – Determination of flexural stiffness"

FAQ
QWhat is the experimental speed of ZHIBANG's Cardboard Stiffness meter?
A Hello, the speed is 200 ° +/- 20 °/min.
QCan I read the stiffness value directly?
A If the operator can memorize the strength dial scale interval corresponding to the selection of heavy thallium, the stiffness value (mN · m) can be directly read without further calculation.
QIs there a GB/T10335.3 standard Stiffness meter?
A This ZHIBANG Stiffness meter is fine!
