China

ZHIBANG ZB-TD10K paper stiffness Tester, can measure the crease rebound force

ZHIBANG ZB-TD10K paper stiffness Tester refers to the bending resistance of paper and Cardboard, paper stiffness Tester is a special instrument for measuring paper and Cardboard stiffness, ZB-TD10K paper stiffness Tester Measurement range bending force 50~10000 mN, resolution 1mN, indication Precision error of indication 100mN or less +/- 1mN, the remaining +/- 1% indication variability ≤ 1%.
Model：
Certificate
Contact
Details SPEC CAT

ZhiBang ZB-TD10K Paper stiffness meterSPEC

ZhiBang ZB-TD10K Paper stiffness meterDetails

ZhiBang ZB-TD10K Paper stiffness meterPacking list

SKU
NB032821
Power supply Voltage
AC220V±10%   50HZ  2A
Measurement range
50~10000mN
Resolution
1mN
Indication Precision
Error of indication 100mN or less +/- 1mN, remaining +/- 1%
Test speed
(200±20)°/min
bending length
10~50mm
bending angle
5°~90°
Specimen size
Specimen width 38 +/- 0.2mm Specimen length 70mm (the best length is 76mm) Specimen thickness ≤ 2.5mm
Indication variability
≤1%
ZB-TD10K
Paper stiffness meter

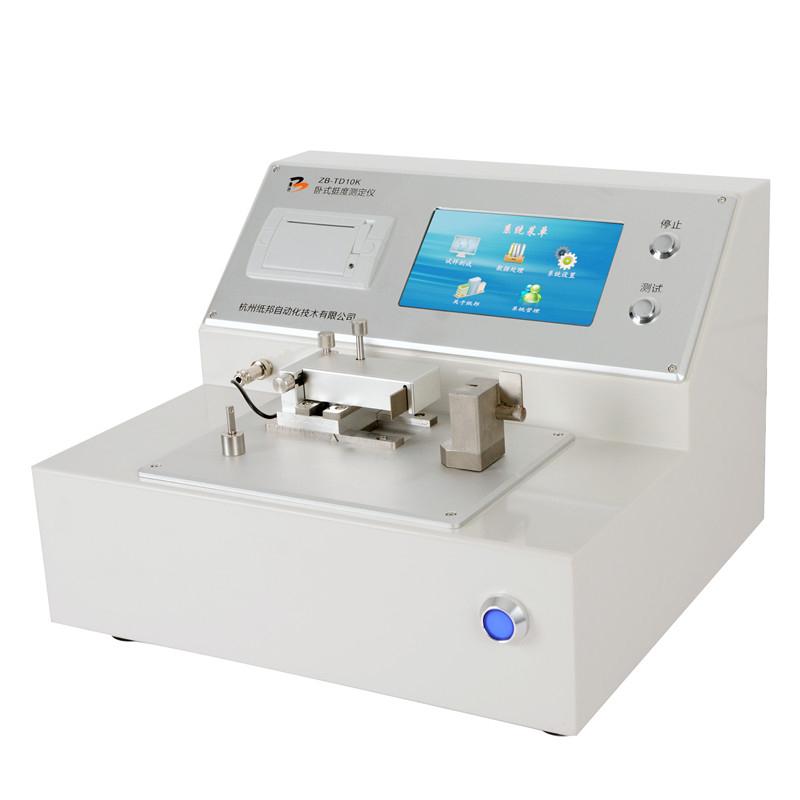

ZHIBANG ZB-TD10K paper stiffness Tester, can measure the crease rebound force Picture

Introduction

Stiffness refers to the ability of paper and cardboard to resist bending. The paper stiffness Tester is a special instrument for determining the stiffness of paper and cardboard.

peculiarity

1. Synchronous motor is adopted, with low noise and stable test

2. Adopt color large-screen touch LCD display to display various data in real time

3. The parameter setting is simple, and the test is convenient and reliable

4. Directly obtain the measurement results, including the mean, standard deviation and coefficient of variation

5. High degree of automation: data processing and action control can be carried out, and automatic reset and overload protection can be carried out

6. Data communication: The instrument is equipped with a standard serial RS232 interface, which can provide data communication for the upper computer integrated reporting system

7. It can measure the carton opening force and reverse folding force that reflect the folding and use effect

8. Measurable crease rebound force (crease stiffness)

standard

GB/T 23144-2008 Paper and cardboard -- Determination of static bending stiffness -- General principle

GB/T 22364-2008 Paper and cardboard -- Determination of flexural stiffness

BS 3748

BS 6965

ISO 2493

TAPPI T556

DIN 53121

SCAN P29


FAQ
QWhat is the bending length of ZHIBANG's paper stiffness tester?
A Hello, the bending length is 10~ 50mm.
QAre all paper stiffness meters available for inspection in the JJG (Light Industry) 57 standard?
A Not necessarily, but this ZB-TD10K paper stiffness tester can be considered.
