JFL QDX film multi-purpose Detector film thickness, Hardness, adhesion and other performance detection

SE
Can simultaneously detect film thickness, adhesion, Hardness three kinds of film performance, destructive thickness measurement principle, multi-blade cutting knife adhesion, knife tooth spacing 1.0 and 2.0mm.
$607.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con OI
Similar products

JFL QDX Paint film multi-purpose DetectorSPEC

JFL QDX Paint film multi-purpose DetectorDetails

JFL QDX Paint film multi-purpose DetectorPacking list

SKU
NB003283
Film thickness cutting knife angle
A. Cutting knife (1) 45 ° ± 1; b. Cutting knife (2) 26 ° 35, -1, -2; c. Cutting knife (3) 5 ° 40, + 3, + 2
Adhesion Multi-blade Cutting Knife
A. The spacing is: 1 + 0.01mm, 2 + 0.01mm; b. The straightness of the top of the ruler is: not less than 0.003mm, not less than 0.006mm; c. The working tooth tip angle: 30 ± 1 °
Buchholz Indentation Knife Radius
R15+0.1mm
payload
500±5g
Measurement resolution
±0.001mm
Standards
ISO2808-74 - 4B法、ISO2409-72、ISO2815-73
Measurement principle
destructive
QDX
Paint film multi-purpose Detector
Can simultaneously detect film thickness, adhesion, Hardness three kinds of film performance, destructive thickness measurement principle, multi-blade cutting knife adhesion, knife tooth spacing 1.0 and 2.0mm.
JFL QDX film multi-purpose Detector film thickness, Hardness, adhesion and other performance detection Picture

Introduction to QDX Paint Film Multi-purpose Detector

JFL QDX paint film multi-purpose Tester is a multi-purpose Tester that can test various properties of organic coatings, including organic coating film thickness (total thickness of multi-layer film, single-layer film thickness, number of film layers), cross-cut Adhesion, Buckholz indentation hardness. In addition, the QDX paint film multi-purpose Detector can be used to study the paint film pinholes, potholes, cracks, bubbles, peeling, the quality of the substrate treatment and other phenomena between the film layers. QDX has the characteristics of high resolution ±0.001mm, intuitive and simple measurement.

The structure of QDX paint film multi-purpose Detector

The paint film multi-purpose Detector is composed of a body, a wheel clamp, a support column, a microscope and a lighting device.

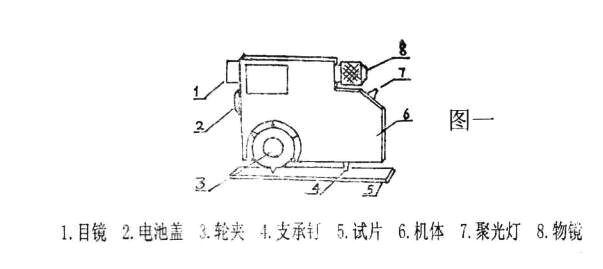

Structural diagram of Jinfulan QDX multi-purpose paint film Detector

Principle of QDX paint film multi-purpose Detector

QDX multi-purpose paint film Detector uses tools of different specifications to make V-shaped incisions, grid pattern cuts or indentations on the coating according to the needs of different tests. The coating thickness value, coating film peeling phenomenon and images produced by indentation can be directly observed with a microscope. The graduation of the instrument scale has been converted into the corresponding micron by the calibration coefficient, so the measured paint can be directly read from the microscope. The actual thickness and indentation length values of the membrane.

Display of QDX paint film multi-purpose Detector

Image display of Jinfulan QDX multi-purpose paint film Detector

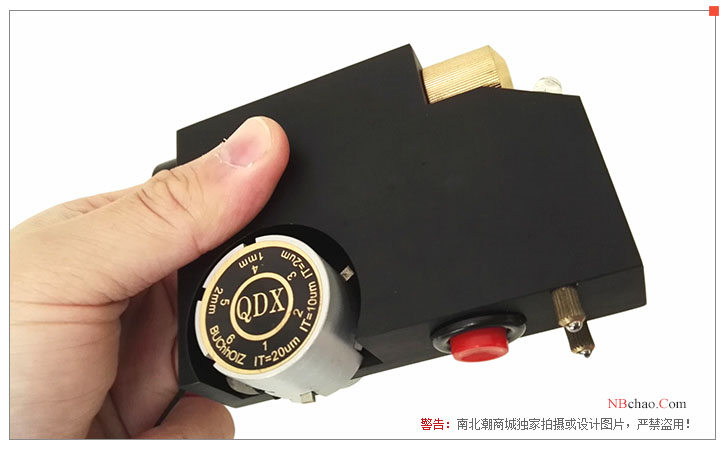

The bottom detail of Jinfulan QDX paint film multi-purpose Detector

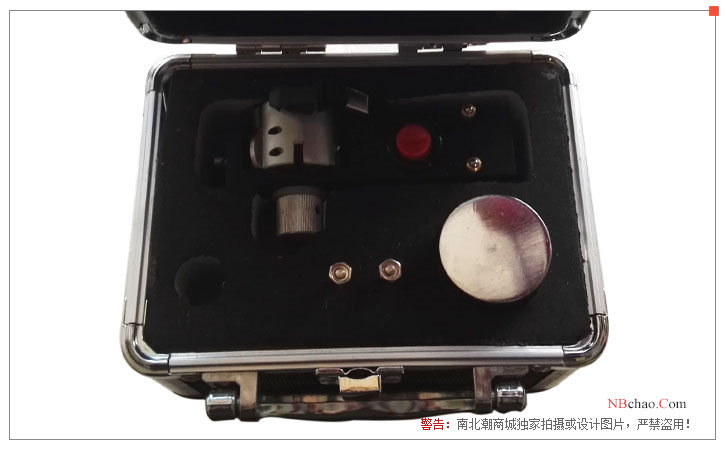

Jinfulan QDX paint film multi-purpose Detector packaging accessories diagram

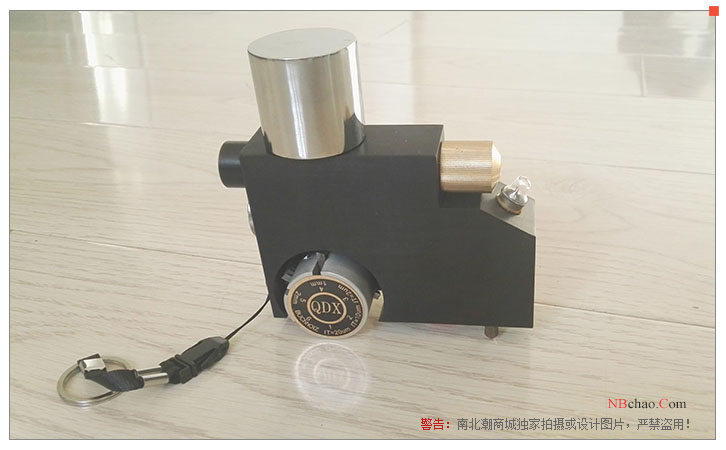

Appearance of Jinfulan QDX Paint Film Multi-purpose Detector

FAQ
QWhat is the measurement range of the film multi-purpose detector QDX?
A Hello, the measurement range of No. 1 tool is 0~ 2000μm, the measurement range of No. 2 tool is 0~ 1000μm, and the measurement range of No. 3 tool is 0~ 200μm.
QDoes the JFL film multi-purpose detector meet the JTJ275 standard?
A The QDX film multi-purpose detector can refer to
