HP-ZRD1000 paper softness Tester

Measurement range of HP-ZRD1000 paper softness Tester 10.0mN~ 1000mN, is a softness Tester in line with GB/T8942 standard, HP-ZRD1000 uses 4-position direct reading LCD screen, the total stroke is 12 +/- 0.5mm.
Model：
Certificate
Contact
Details SPEC
Similar products

HengPin HP-ZRD1000 Paper softness TesterSPEC

HengPin HP-ZRD1000 Paper softness TesterDetails

HengPin HP-ZRD1000 Paper softness TesterPacking list

SKU
NB032877
Measurement range
10~1000mN
Test speed
1.2±0.24mm/s
Error of indication
±1%
show
4-Bit direct reading
printout
4 significant digits
Indication resolution
1000mN1mN ； 100mN0.5mN
Probe total travel
12±0.5mm
Probe indentation depth
8+0.5mm
Displacement Accuracy
0.1mm
Power supply Voltage
220V±10%
Weight
16kg
Dimensions
340*315*295mm
HP-ZRD1000
Paper softness Tester

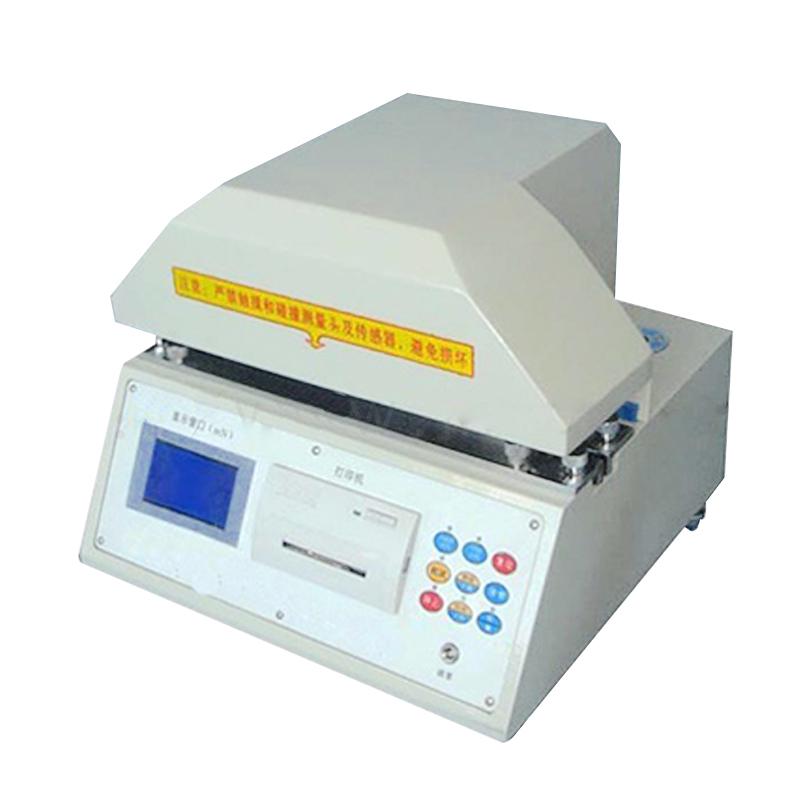

HP-ZRD1000 paper softness Tester Picture

Applications

This instrument is designed in accordance with the relevant provisions of the national standard GB/T8942 "Determination of Paper Softness". This instrument is a test instrument that simulates the softness of the hand. It is suitable for the softness determination of high-grade paper, tobacco sheets, fiber fabrics and other materials.

 The principle of softness

Under specified conditions, when the plate probe presses the sample to a certain depth (about 8mm) in the slit, the sum of the bending resistance of the specimen itself and the maximum vector of friction between the specimen and the gap is called the softness, expressed in millinewtons, and the smaller the softness value, the softer the specimen.

Features

The instrument measurement and control system adopts digital circuit technology with single-chip computer as the core, which has the advantages of technical professionalism, complete functions, simple and convenient operation, etc., and is a satisfactory testing instrument for papermaking, scientific research units and commodity inspection departments.
