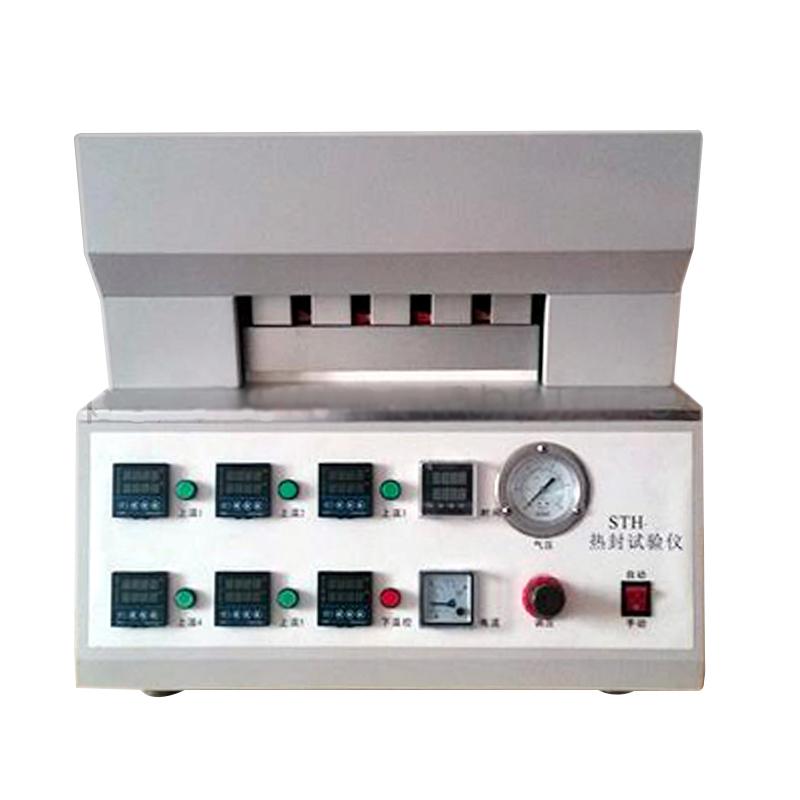

HENGPIN HP-RF300B five-point heat sealing Tester, room temperature~ 300 ℃

HP-RF300B

Five-point heat seal Tester

Introduction

HP-RF300B five-point heat sealing Tester uses hot pressing sealing method to determine the heat sealing temperature, heat sealing time, heat sealing pressure and other parameters of plastic film substrate, flexible packaging composite film, coated paper and other heat sealing composite films. Heat sealing materials with different melting points, thermal stability, fluidity and thickness will exhibit different heat sealing properties, and their sealing process parameters may vary greatly. The heat sealing Tester can obtain accurate heat sealing test indicators through its standardized design and standardized operation.

Features

1. The control system is digitally displayed, and the equipment is fully automated

2. Six sets of independent digital PID temperature control system, high temperature control accuracy

3. Combined temperature and gradient setting, the test efficiency is increased by five times

4. Selected heat sealing knife material, the temperature of the heat sealing surface is uniform and consistent

5. The cylinder is placed away from the heating element to avoid heat conduction and ensure the normal working temperature of the pneumatic parts

6. The pneumatic control components have high precision, and the full set adopts familiar brands

7. Anti-scald design and leakage protection design, safer operation

8. The heating element is well-designed, the heat dissipation is even, and the service life is long

9. The mechanical operation design is concise and the human-computer interaction is friendly

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
