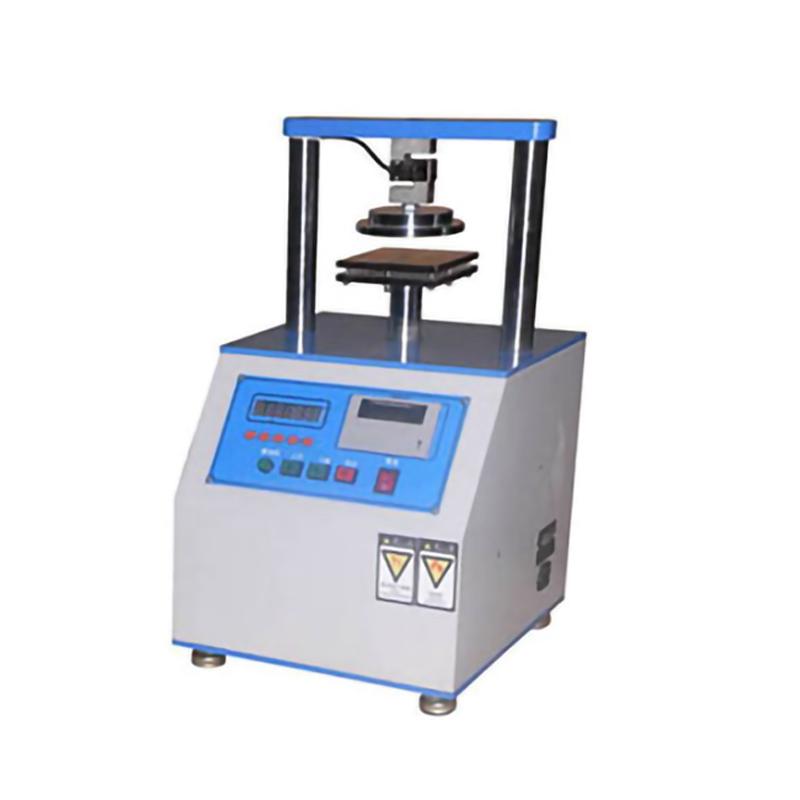

HAOEN HE-BH-100A Ring compression testing machine

HE-BH-100A

Ring compression testing machine

One、Operating Principle

The working principle of Horn series cardboard edge pressure ring pressure testing machine: the specimen test fixture is placed between the upper and lower pressure plates, and then the specified speed is applied, and when the lower pressure plate compresses the test upward, the load element at the upper end of the upper pressure plate feels the pressure, and converts the pressure into a Voltage signal and transmits it to the display for analysis, and the pressure value is displayed on the force display screen.

Second, the use of standards

The design of the paper corner longitudinal pressure testing machine conforms to TAPPI-T472, JIS-P8126, GB/T2679.9, GB/T 6544, GG/T0023-2004 and other standards.

3. Features

This machine uses a high-precision sensor to sense, and the sample strength is displayed digitally through software analysis.

Fourth, use

4.1 Ring pressure is used for corrugated core paper and kraft paper with a thickness of less than 1mm. The specimen 152X12.7mm is placed in a ring-shaped container, and the compressive strength in the upright direction is tested by this machine.

4.2 The side pressure is used for corrugated paper with a thickness of less than 8mm, and the sample 100X25mm is placed under the 100X100mm pressure plate and fixed with two guide blocks, and the vertical compressive strength in the upright direction is tested by this machine.

4.3 It can be used with various accessories, and can test the gluing strength and flat compression strength of cardboard.

4.4 LONGITUDINAL COMPRESSIVE RESISTANCE OF PAPER ANGLE PROTECTION: TAKE 5 SAMPLES WITH 300MM LENGTH, PLACE THE SAMPLES VERTICALLY IN THE CENTER OF THE TWO PLATES OF THE COMPRESSION TESTING MACHINE, COMPRESS THE SAMPLES AT A RATE OF 100MM/M±2MM/MIN UNTIL CRUSHED, AND RECORD THE MAXIMUM COMPRESSIVE RESISTANCE DURING CRUSHING. Take the average of the five plate samples.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
