PosiPen thickness measuring pen type thermal spray-on lining Thickness Gauge

SE
Magnetic Induction principle, no battery required, suitable for thermal spray-on lining thickness measurement, thickness measurement range 5~ 500μm, meet the standard ASTM D7091/B499, ISO2808, etc., with calibrated certificate, probe contact temperature -100 ℃~ 230 ℃.
$366.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con OI

Defelsko PosiPen Coating thickness instrumentSPEC

Defelsko PosiPen Coating thickness instrumentDetails

Defelsko PosiPen Coating thickness instrumentPacking list

SKU
NB003291
Measurement principle
Magnetic Induction
Measurement range
5~500μm
margin of error
±10%
statistical function
without
Power Supply
No power required
Standards
ASTM D7091/B499、ISO2808等
Calibrated Certificate
Yes.
Probe contact temperature
-100℃~230℃
Unit display
μm/mils
PosiPen
Coating thickness instrument
Magnetic Induction principle, no battery required, suitable for thermal spray-on lining thickness measurement, thickness measurement range 5~ 500μm, meet the standard ASTM D7091/B499, ISO2808, etc., with calibrated certificate, probe contact temperature -100 ℃~ 230 ℃.
PosiPen thickness measuring pen type thermal spray-on lining Thickness Gauge Picture

Coating Thickness Gauge selector

PosiPen Coating Thickness Gauge

The Defelsko PosiPen Coating Thickness Gauge is a pen-like coating Thickness Gauge with a very small magnet that can be accurately placed on the smallest parts, peaks, or valleys.PosiPenThe surface has a film thickness scale indication, using the principle of magnetism, without any external power supply or battery power, the coating thickness can be easily measured by magnetic pull-off, the PosiPen Coating Thickness Gauge has the advantages of robustness, simplicity, economy, and portability. particularlyIt is suitable for measuring non-magnetic coatings on steel, such as paint, enamel, electroplating, hot-dip galvanizing of steel.

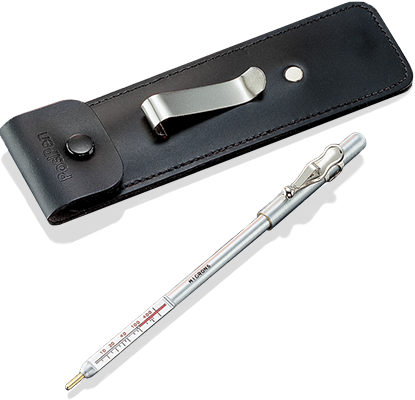

PosiPen

PosiPen Coating Thickness GaugePictures

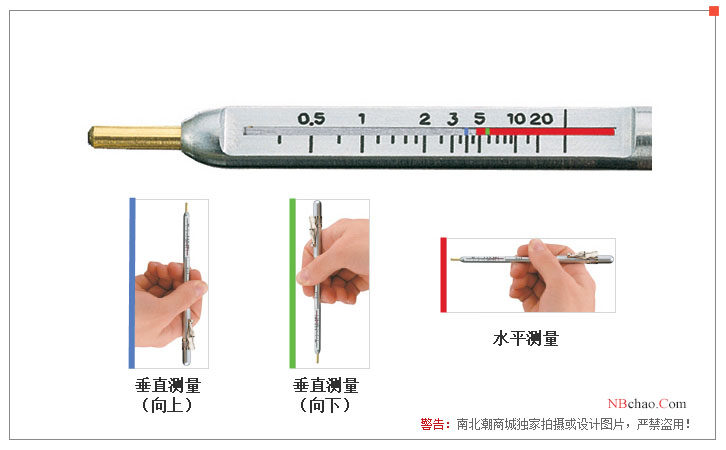

Illustration of the PosiPen Coating Thickness Gauge Multi-Angle Measurement

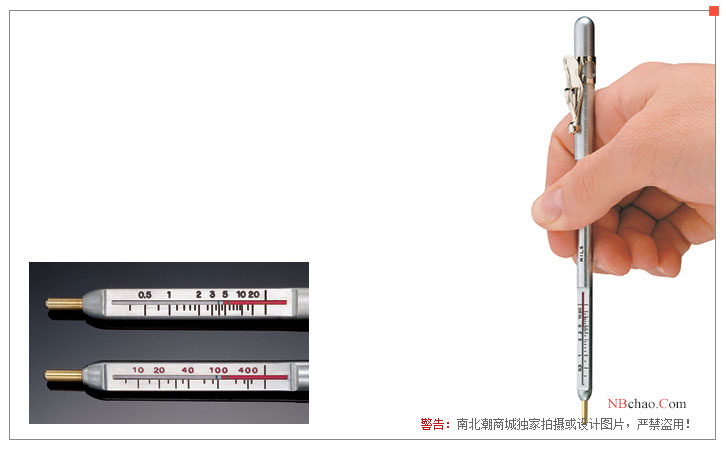

PosiPen Coating Thickness Gauge Graduation Diagram

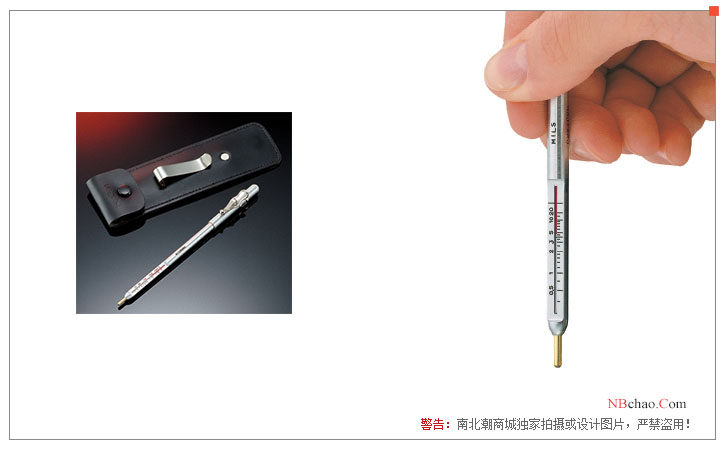

PosiPen Coating Thickness Gauge Packaging and Probe Detail Diagram

PosiPen Coating Thickness Gauge Features

1) Simple

It's easy to use

Lightweight – easy to carry, like a ballpoint pen

2) Durable

No batteries or power supply required

Robust - unaffected by mechanical shock, acids, oils, water and dust

3) Precise

No user adjustment is required

Calibration certificate is traceable to includedPTB

The highly wear-resistant probe has a long lifelongand continuous accuracy

Each posipen has two scale units: milliliters (inches) and microns (metric)

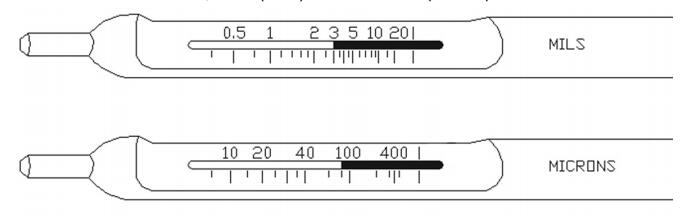

Schematic diagram of two different thickness scale units for the PosiPen Coating Thickness Gauge

The PosiPen is recommended for use in the following applications:

(1) Small, hot or hard-to-contact coating thickness measurement;

(2) On-site inspection - it can be easily placed in the shirt pocket;

(3) Thermal spray coating.

Application industry

1) Oil refineries, petrochemical plants

2) Electroplating, chrome, zinc, galvanizing

3) Powder coating

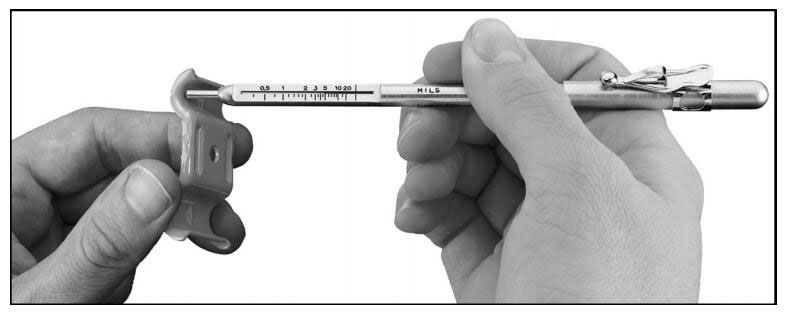

PosiPen Coating Thickness Gauge Test Demo

FAQ
QI want to measure the thickness of the hot dip galvanized layer on the steel pipe. Is there any portable instrument recommended?
A The Defelsko PosiPen Coating thickness gauge is recommended. It uses the magnetic pull-off principle to directly measure the thickness of the galvanized layer on the steel substrate without batteries. It is as light and portable as a pen and suitable for field use.
QYou need to quickly check the thickness of Eletroplating parts. The function is simple and durable. Do you recommend it?
A It is recommended to use the PosiPen pen thickness gauge. It is easy to operate - direct pull-off reading, durable and not afraid of falling, with its own micron and imperial dual scale, specially used for rapid detection of Eletroplating, chromium, zinc and other coatings, and is very cost-effective.
QHow is the scale between 100 and 400 divided?
A For detailed tutorials, please refer to the operation manual in the upper right corner of the product page.
QCoating thickness gauge cast iron material can be used?
A Hello, this one tests the coating thickness through the magnetic principle, so as long as the substrate is a magnetic metal substrate, such as steel and iron.
QDoes this magnetic coating thickness gauge comply with ASTMB499 standard?
A This magnetic pull-off coating thickness instrument is suitable for ASTMB499. Please consult customer service for detailed application definition
QDoes this tester have a certificate?
A PosiPen thickness measuring pen comes with a traceable calibrating certificate, please rest assured to buy.
QIs there any difference between PosiPen and PosiTest?
A The PosiPen is ideal for measuring non-magnetic coating thickness and accurate measurement of ferrous metal parts with a temperature range of -100C to + 230C (-150F to + 450F). The PosiPen uses very small magnets that can be accurately placed on extremely small parts and coated surfaces, which cannot be touched by Miscellaneous's larger gauges.
QHow does this PosiPen thickness gauge work?
A Make sure the surface to be tested is clean and free of grease. Hold the PosiPen at right angles to the surface to be tested. Place the tip of the PosiPen on the coated surface to make contact with the magnet. Pull the PosiPen directly back from the object while paying close attention to the appropriate indicators. Pay attention to the reading as the magnet is released.
QCan PosiPen measure coating on small diameter wires?
A Yes. PosiPen provides accurate measurement of Film thickness for non-magnetic coating on 18 AWG and larger wires.
