Brand：haoen
Model：HE-KYC-1000A

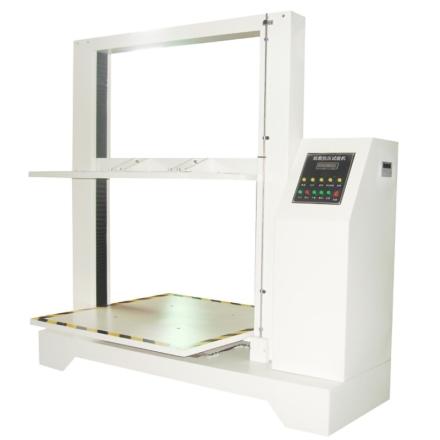

Name：Servo computer carton compression testing machine
Specifications
| Force range | 1000kg |
| Working Travel | 1000mm |
| Plate size | 1000*1000mm |
| Dimensions | 1700*1000*1640mm |
| Weight | 600Kg |
| Total Power Approx | 2000W |
| monitor | Computer display |
| Analysis | 1/100000 |
| Accuracy | ±0.5% |
| Pressurization speed | 1~ 200mm/min (adjustable) |
| motor | Panasonic servo motor |
| Print project | Linear dispersion, maximum strength, compressire strength, average value, etc |
| Power supply Voltage | AC single-phase, three-wire 220V 50HZ |
| Unit switch | N、kgf、Lbf |
| Force Sensing Method | LOAD CELL Force Sensor |
