DOHO DOHO DR-10 color reader 8mm caliber

Simple color reader, 8mm measurement caliber, cross platform positioning, Delta E ≤ 0.03, no PC software.
Model：
Contact
Details SPEC VIDEO CAT
Similar products

DOHO DR-10 Color readerSPEC

DOHO DR-10 Color readerDetails

DOHO DR-10 Color readerPacking list

SKU
NB032956
Lighting method
8°/d
lighting source
LED light source
Sensor
Silicon photodiode
Measurement caliber
The platform measurement diameter is 8 mm
Color Space
CIE LAB
color difference formula
ΔE*ab
Other chroma metrics
/
Viewing Angle
CIE 10°
Measurement light source
D65
display mode
Chromatic value, color difference value/graph, pass/fail result, Color bias
Measurement time
1.5s
Sexual repeability
φ 8mm/delta E * ab within 0.08
Inter-instrument Agreement
ΔE*ab<0.4
Dimensions
205*67*80mm
Weight
400g
positioning method
Cross platform positioning
Power Supply
Rechargeable lithium-ion battery 3.7V @3200mAh
Lighting source life
More than 1.60 million measurements in 5 years
Display
TFT True Color 2.8inch @(16:9)
Data Interface
USB Power Only
data storage
100 master standards, 10,000 samples
Operating environment
0~40℃（32~104°F）
Storage environment
-20~50℃ （-4~122°F）
PC software
/
optional accessories
Micro printer, powder test box
DR-10
Color reader
Simple color reader, 8mm measurement caliber, cross platform positioning, Delta E ≤ 0.03, no PC software.

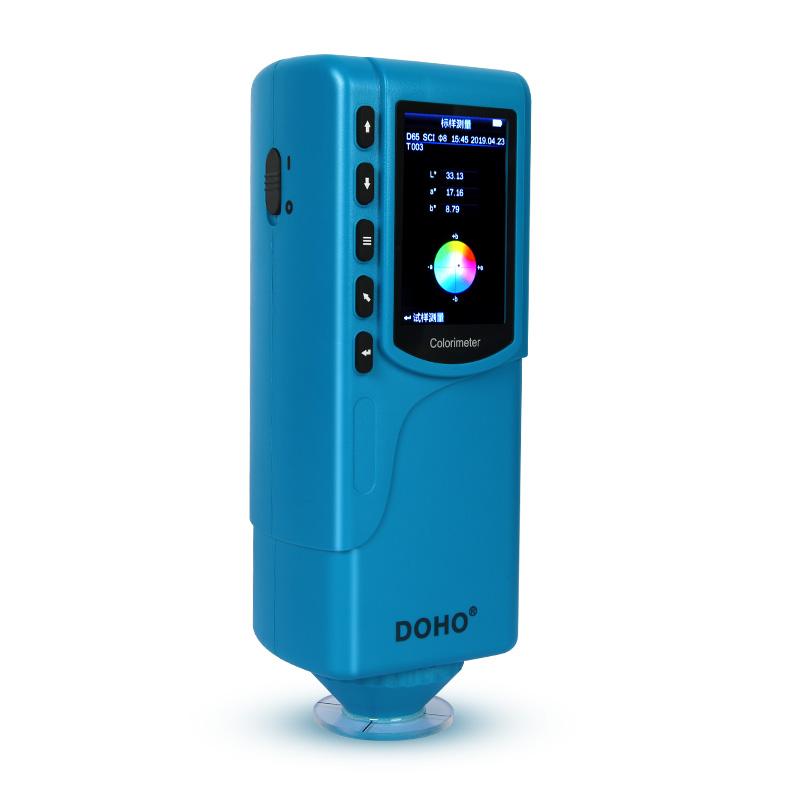

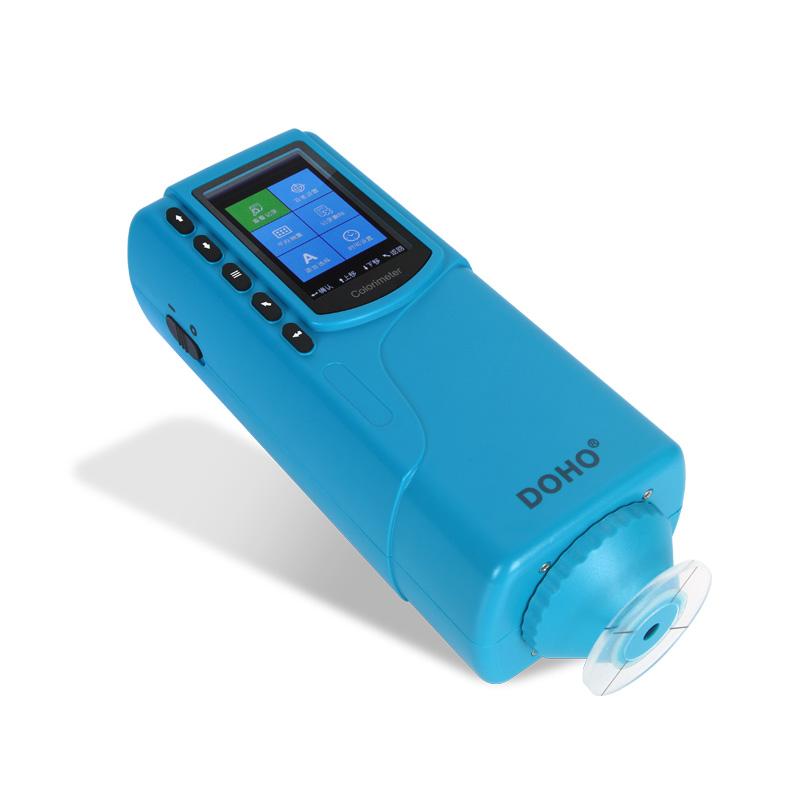

DOHO DOHO DR-10 color reader 8mm caliber Picture

Introduction

Color Colorimeter DR-10 is independent property rights of domestic (CN) economic Colorimeter, no need to connect to the computer can be quickly measured, with accurate data, simple operation, easy to carry and other advantages, low power design 3200mAh large capacity lithium battery to ensure that the instrument can move for a long time measurement, as an accurate measurement tool for color difference value △E, is the majority of users of the affordable choice.

Product Applications

The color Colorimeter DR-10 adopts a general-purpose measuring aperture of 8mm, which is widely used in plastics, electronics, paints, inks, textile and garment printing and dyeing, printing and paper, automobiles, cosmetics and food. SCI supports a variety of sample measurements, accurate data, easy to use, and is a practical tool for color detection in production, quality control, etc.

Technological advantages

1. Smaller short-term repeatability: ΔE≤0.03

2. 3200mAh large-capacity lithium battery, which can meet the needs of large-scale measurement

3. Ergonomic design

The DR-10 has a beautiful, smooth shape and comfortable grip, and is designed in line with the structure of ergonomics, fitting the palm of the hand for continuous testing work, allowing you to use it quickly and easily.

4. The cross is accurately positioned, and the measured part can be quickly aligned

5. ETC real-time calibration technology

The DR-10 also features an innovative ETC real-time calibration technology (Every Test Calibration), a standard whiteboard built into the optical system, and reliable accuracy and repeatability in every test.


FAQ
QI want to do a test on the GB/T6688 standard. Is this color difference meter okay?
A Sure
QDonghong DR-10 color reader test light source is what?
A Hello, D65 light source.
