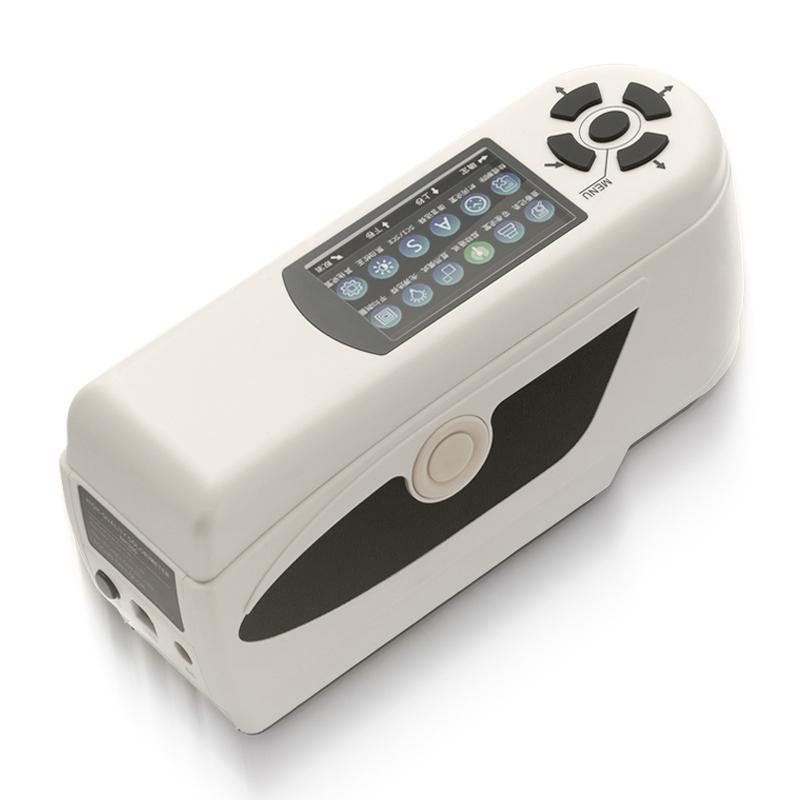

DOHO DOHO DR-30 high accuracy color reader 8mm and 4mm caliber

DR-30

Color reader

Lighting mode 8 °/d, lighting source LED light source, sensor silicon photodiode, measurement caliber dual caliber: φ 8mm measurement caliber, φ 4mm measurement caliber, with CQCS3 quality management software, the user's Color management in the PC computer data, compare Color difference, generate test report form, convenient for customers' high-level color management work.

Introduction

High-precision Colorimeter DR-30 is a domestic (CN) Colorimeter with independent property rights, equipped with Φ4/8mm dual measurement aperture, with accurate data, simple operation, easy to carry and other advantages, low-power design 3200mAh large-capacity lithium battery to ensure that high-precision Colorimeter DR-30 can measure for a long time, with CQCS3 quality management software, the user's color management in the PC computer data, compare color differences, generate test report forms, convenient for customers of high-level color management.

productsapply

The high-precision Colorimeter DR-30 adopts dual measuring diameters, and is widely used in plastics, electronics, paints, inks, textile and garment printing and dyeing, printed paper products, automobiles, cosmetics and food industries. SCI supports a variety of sample measurements, accurate data, easy to use, and is a practical tool for color detection in production, quality control, etc.

Technological advantages

1. Automatic correction at start-up, more accurate measurement

The display accuracy is 0.01, and the repeatability measurement accuracy is controlled within 0.03

2. 3200mAh large-capacity lithium battery, which can meet the needs of large-scale measurement

3. A variety of color measurement space, a variety of color difference formulas

The high-precision Colorimeter DR-30 provides CIE LAB, XYZ, LCh, CIE RGB, CIE LUV color spaces, as well as ΔE*ab, ΔE(h), ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00 color difference formulas, which can meet the color difference testing needs of different industries.

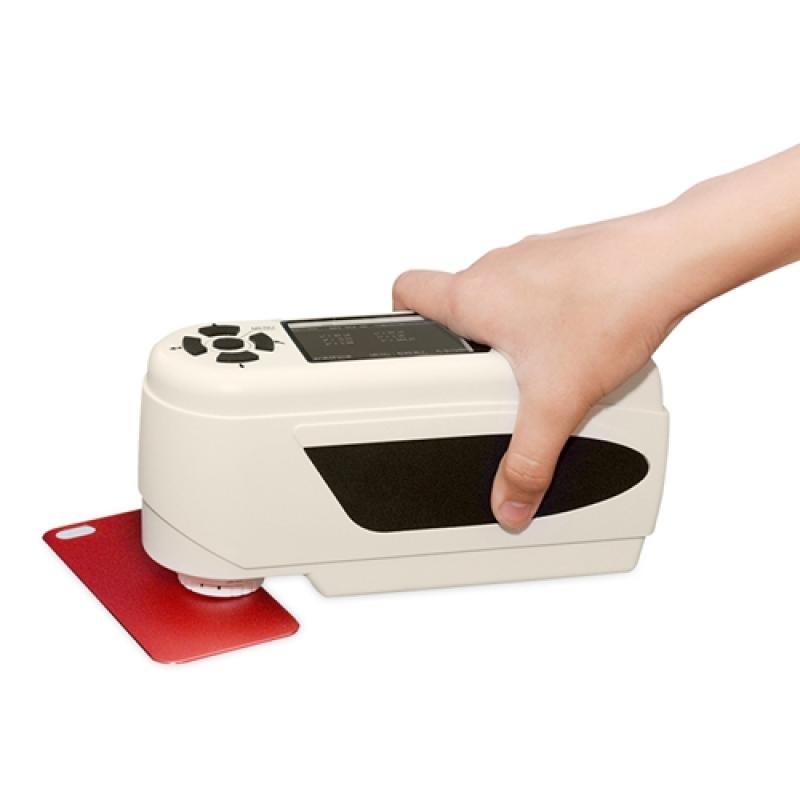

4. Ergonomic design

The high-precision Colorimeter DR-30 has a beautiful, smooth shape and comfortable grip, conforms to the structural design of ergonomics, fits the palm of the hand and is suitable for continuous detection work, allowing you to use it quickly and easily.

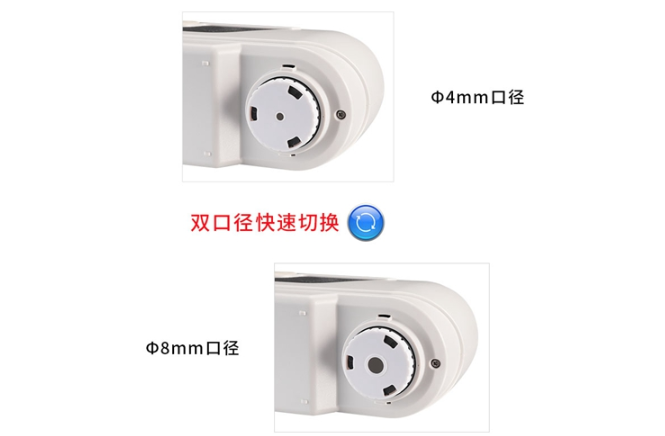

5. Double-caliber fast switching, adapting to more samples to be measured

6. Dual positioning improves measurement efficiency

The DR-30 uses two technologies of dual positioning: light positioning (patent number: ZL201120566485.2) and camera framing positioning (patent number: ZL201120559202.1). The light positioning can quickly align the position of the measured object, and the real-time framing of the camera can accurately determine whether the measured part of the object is the center of the target, which better improves the measurement efficiency and accuracy.

7. ETC real-time calibration technology

The high-precision Colorimeter DR-30 adopts imported standard whiteboard, which is resistant to yellowing, dirt does not penetrate, and can be wiped, which ensures the long-term accuracy of the instrument. At the same time, it also adopts the innovative ETC real-time calibration technology (Every Test Calibration), and the optical system has a built-in standard whiteboard, which has reliable accuracy and repeatability in every test.

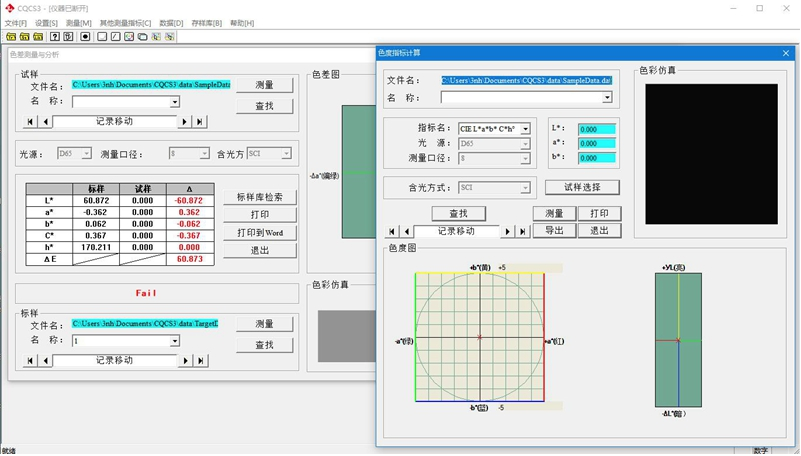

8. Color management software

The high-precision Colorimeter DR-30 is equipped with CQCS3 quality management software, which is suitable for quality monitoring and color data tabular management in various industries. The user's color management is digitized on the PC computer, the color difference is compared, the test report form is generated, and a variety of color space measurement data is provided, which is convenient for customer customization and high-level color management.

Packing list：host X1, data cable X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
