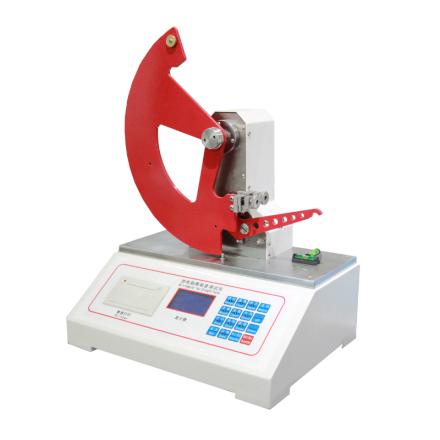

QinDa QD-3078-1 Microcomputer measurement and control digital display tearing meter Specifications
Search
Brand：QinDa
Model：QD-3078-1
Name：Microcomputer measurement and control digital display tearing meter
Specifications
| Measurement range | 100mN~ 13000Mn (the number of sample layers and the corresponding Measurement range are specified, and the number of sample layers is reasonably selected according to the strength of the tested sample) |
| Indication Repeatability Error | ≤1% |
| Tear arm | 104±1mm |
| tearing initial angle | 27.5±0.5° |
| Specimen incision length | 20±0.5mm |
| Dimensions | 450*310*465mm |
| Machine Mass | About 15kg |
| Environmental temperature | 20±10℃ |
| Power Supply | AC22V +/- 22V, 50Hz, the Power Supply should be reliably grounded |
| Error of indication | ±1% |
Packing list
After-sales instructions
None
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/32987/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
