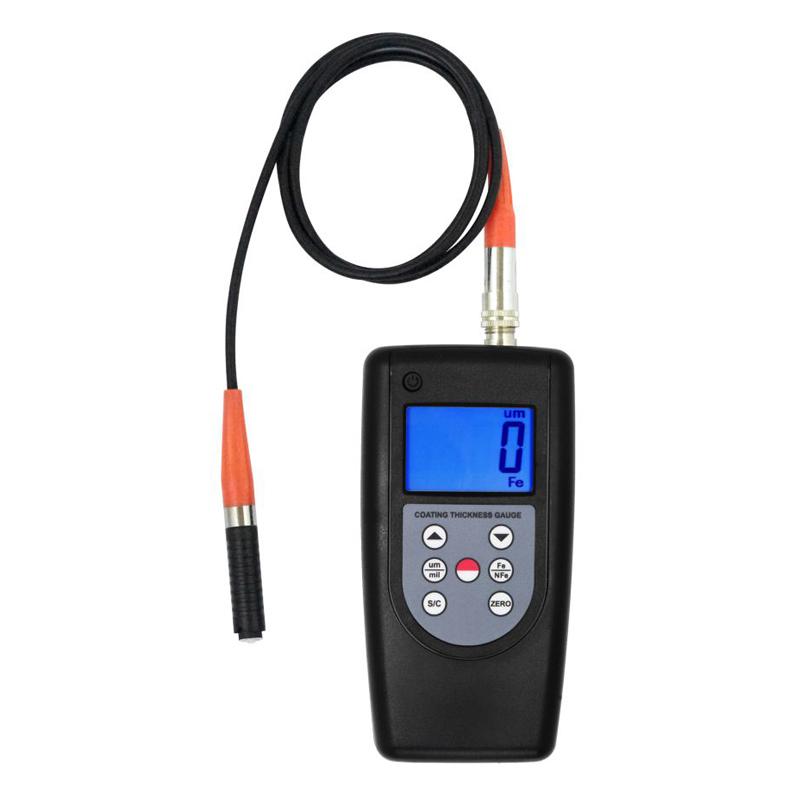

LANDTEK CM-1210-200F Coating Thickness Gauge

CM-1210-200F

Coating Thickness Gauge

Magnetic metal substrate thickness measurement, split structure, thickness measurement range 0~200μm, Precision +/- 1~ 3% n or +/- 2.5μm, with single and continuous thickness measurement mode, dedicated to coating measurement on small workpieces.

Applications

Use magnetic sensors to measure non-ferromagnetic coatings and coatings on ferromagnetic metal substrates such as steel and iron, such as: paint, powder, plastic, rubber, synthetic materials, phosphating, chromium, zinc, lead, aluminum, tin, Cadmium, porcelain, enamel, oxide layer, etc. Widely used in manufacturing, metal processing, chemical industry, commodity inspection and other testing fields.

Product Details

• Specially designed for coating measurement on tiny workpieces.

• Iron based coating Thickness Gauge.

• There are single and continuous measurement modes available.

• Metric/Imperial unit conversion.

• It has functions such as manual shutdown, automatic shutdown and underVoltage prompt.

• Automatically memorize the calibration value and automatically identify the material of the measured substrate.

• There is a buzzer sound during operation, but the buzzer does not sound during continuous measurement.

• Use USB data line output, RS-232C data connection line and software to communicate with PC.

• An optional Bluetooth™ data output option is also available.

• Separate type, providing a variety of probes, more mobile measurement.

optional accessories

 1. USB, RS-232 cable and software

 2. Bluetooth communication and software

Packing list：host x1, probe (iron base) x1, reference block (iron base) CTG-BSx1, calibrated diaphragm CTG-CFx1 set (4 pieces), portable box x1, manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
