Brand：AISRY
Model：ASR-8506

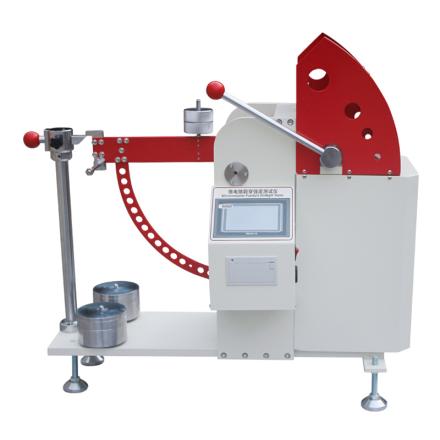

Name：Microcomputer intelligent Penetration strength Tester
Specifications
| Power | AC220V±10% 2A 50HZ |
| Measuring range | 1~48J |
| Error of indication | A file: ± 0.05J; B file: ± 0.1J; C file: ± 0.2J; D file: ± 0.5J (only guaranteed within 20% -80% of the upper measurement limit of each file) |
| Friction sleeve resistance | <0.25J |
| Number of swing arm swings | > 120 times (measured by the number of swing arm swings) |
| Pyramid characteristic size | The length of the three bottom edges is 60 * 60 * 60mm, and the height is (25 ± 0.7) mm. |
| Edge fillet radius | R(1.5±0.1)mm |
| Operating Environment | Temperature 5~ 35 ℃, Relative Humidity does not exceed 85%. |
| Dimensions | 800*500*750mm |
| Weight | 110kg |
Packing list
Host X1, manual X1, warranty card X1, certificate X1
After-sales instructions
None
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/33024/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
