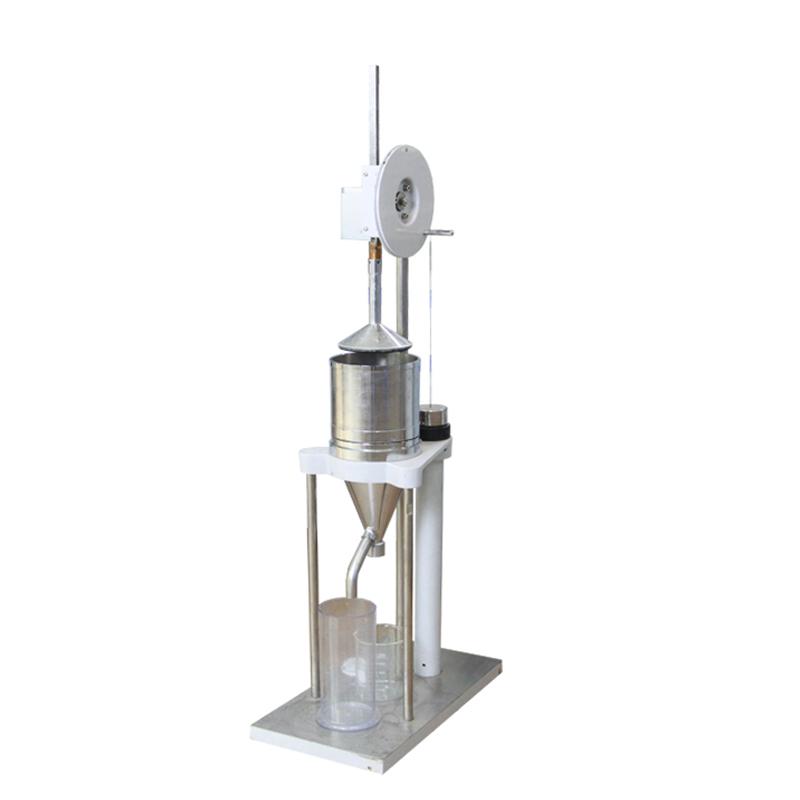

QD-3072 Pulp Beating Degree Tester
QD-3072
QinDa QD-3072 Pulp beating degree TesterSPEC
QinDa QD-3072 Pulp beating degree TesterDetails
QinDa QD-3072 Pulp beating degree TesterPacking list
- SKU
- NB033055
- Measurement range
- 0~100°SR
- Measuringflask Graduation
- 1°SR
- Overflow outlet discharge time
- 149±1s
- residual Volume
- 7.5~8.0ml
- Rising speed of cone
- 100±10mm/s
- Dimensions
- 450*250*1050mm
- Weight
- 40kg
Features
The pulp beating degree meter is a Shaw Boer type beating degree Tester, which adopts manual compression sealing cone.
Environmental Requirements:
1. Room temperature: 20°C±1°C.
2. The workbench is stable, which is convenient for adjusting the working datum.
3. The Operating Environment is clean, the air is clean and dust-free.
4. No vibration
Introduction
The beating degree Tester is a special testing instrument for pulp percussion degree determination/pulping degree determination. According to the relevant provisions of the standard GB/T 3332-2004 "Determination of Pulp Pulping Degree (Shober-Rigler Method)", the professional production of pulp pulping degree testing instrument, pulp pulping degree Tester, also known as pulp percussion degree Tester, is based on the phenomenon that the percussion degree of pulp is inversely proportional to the water filtration rate of pulp suspension. The Tester is designed to imitate the Schauber-Rigler slurry meter, which is used to determine the water filtration performance of slurry suspension, study the fiber condition and evaluate the slurry beating degree.
Meets standards
ISO 5267/1 Pulp – Determination of water filtration properties – Part 1: Schauber-Rigler method
GB/T 3332-2004
