ZHIBANG ZB-BJ30 Adhesive Peel strength Tester Manual

ZHIBANG ZB-BJ30 adhesive peel strength Tester is mainly used to determine the adhesive strength between the adhesive and cotton fabric of the towel and pad, ZB-BJ30 adhesive peel strength Tester Measurement range 0~30N, resolution 0.001N, indication Precision +/- 1%, Test speed (400 +/- 10) mm/min, sample width 80mm.
Model：
Certificate
Contact
Details SPEC CAT

ZhiBang ZB-BJ30 Peel strength TesterSPEC

ZhiBang ZB-BJ30 Peel strength TesterDetails

ZhiBang ZB-BJ30 Peel strength TesterPacking list

SKU
NB033060
Power supply Voltage
AC220V±10%   50HZ  2A
Measurement range
0~30N
Resolution
0.001N
Force Precision
±1%
Test speed range
400±10mm/min
Specimen width
80mm
briquetting
62mm × 80mm   ，500g
Disbonding distance
60mm
Weight
70kg
Dimensions
450*550*1200mm
ZB-BJ30
Peel strength Tester

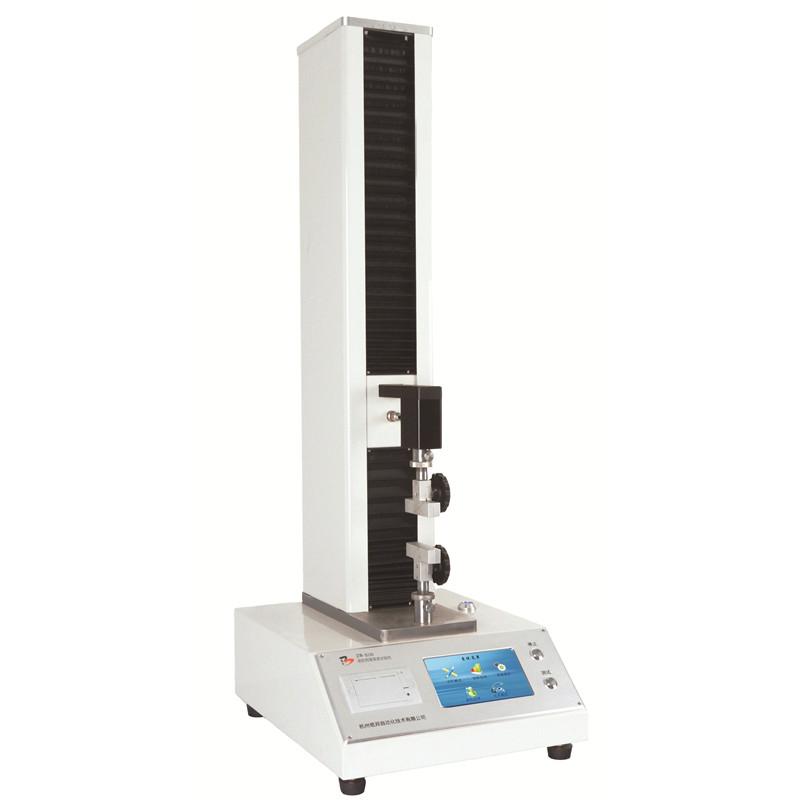

ZHIBANG ZB-BJ30 Adhesive Peel strength Tester Manual Picture

Introduction

The adhesive peel Strength Tester is mainly used to determine the adhesion strength between the adhesive and the cotton fabric of towels and pads.

peculiarity

1. Servo motor is adopted, with low noise and accurate control

2. Adopt color large-screen touch LCD display to display various data in real time

3. The parameter setting is simple, and the test is convenient and reliable

4. Directly obtain the measurement results, including the average value and standard deviation

5. High degree of automation: data processing and action control can be carried out, and automatic reset and overload protection can be carried out

6. Data communication: The instrument is equipped with a standard serial RS232 interface, which can provide data communication for the upper computer integrated reporting system

standard

GB/T 8939-2018

ISO 1924 Paper and Cardboard Determination of tensile strength

GB/T12914 Paper and cardboard -- Determination of tensile strength


FAQ
QHow about the accuracy of ZHIBANG adhesive-backed Peel strength tester?
A Hello, the indication accuracy is +/- 1%.
QDo you have the manual adhesive-backed Peel strength tester involved in GB/T2792?
A The ZB-BJ30 manual adhesive-backed Peel strength tester can be
