ZhiBang ZBH-4 (one percent) Paper and Cardboard Thickness Meter Specifications

Search

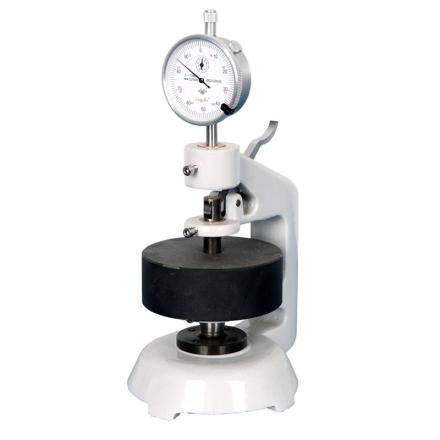

ZHIBANG ZBH-4 Paper and Cardboard Thickness Meter, Pointer Type, Percentile, Thickness Measurement up to 4mm

Brand:ZhiBang

Model:ZBH-4 (one percent)

Name:Paper and Cardboard Thickness Meter

DetailsContact
Specifications
Measurement range 0~4mm
Measurement Accuracy 0.01mm
Contact Pressure 100±10kPa
contact diameter 16.0±0.5mm
Measurement plane parallelism error 0.005Mm or 1%
Error of indication +/- 0.0025mm or +/- 0.5%
Error of indication 0.0025Mm or 0.5%
Dimensions 233*160*120mm
Net Weight 5.5kg
Packing list
After-sales instructions

Warranty days: 365 days

[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/33074/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
